Applicable expansion cards
The PC is provided with slots for AGP and PCI cards. The standard display card is preinstalled in
the AGP slot. Install a PCI card in one of the PCI slots 1 to 5.
■
Installing an expansion card
1
Disconnect the power plug from the outlet.
2
Remove the side cover.
3

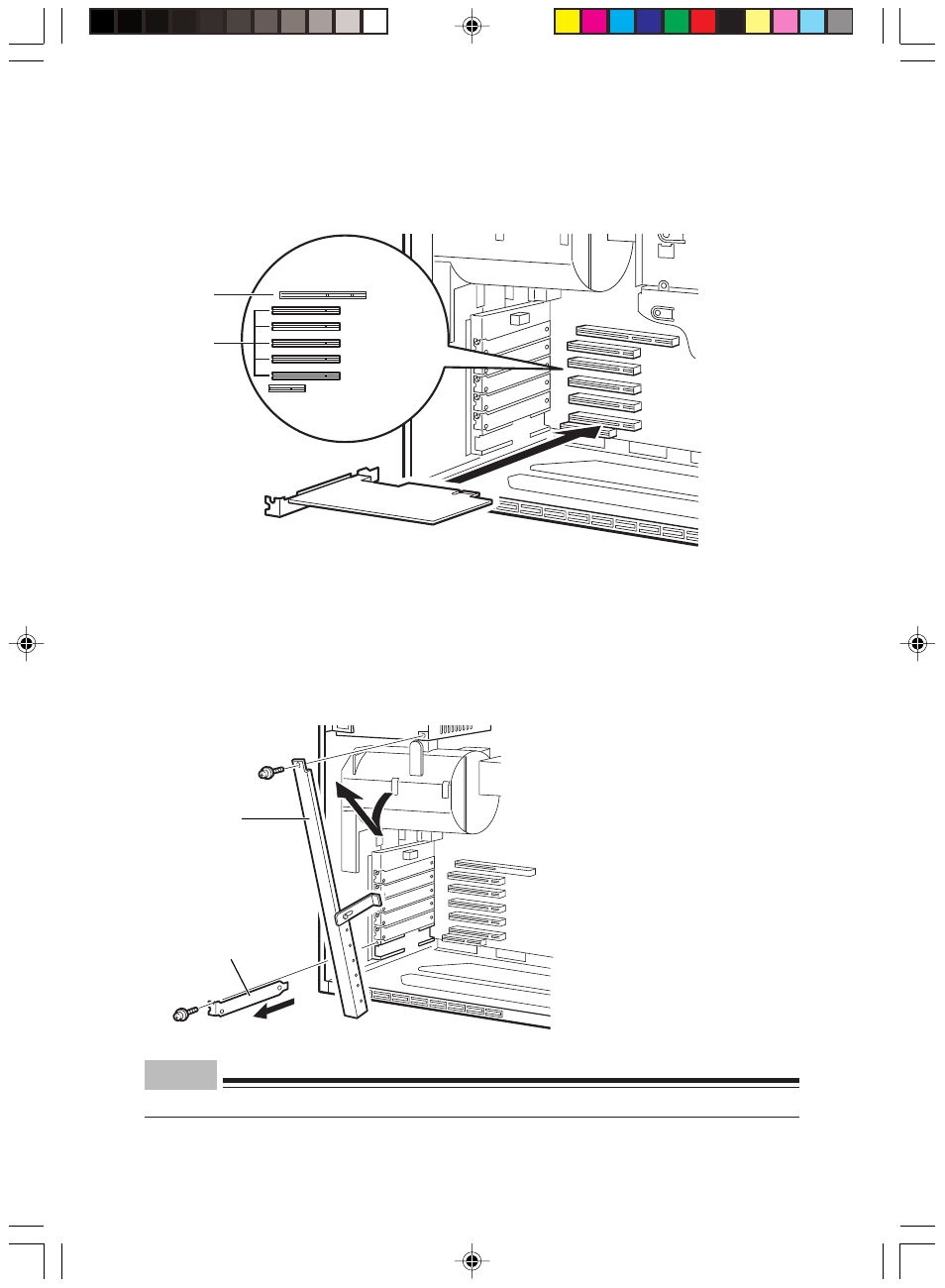

Removing the slot cover and bracket.
Remove one screw to remove the slot cover and bracket.
Tilt the bracket before removing it.
PCI slot 1
PCI slot 2
PCI slot 3
PCI slot 4
PCI slot 5
AGP bus
PCI bus
Point
•
Keep the removed slot cover.
Slot cover
AGP slot
Bracket
