25

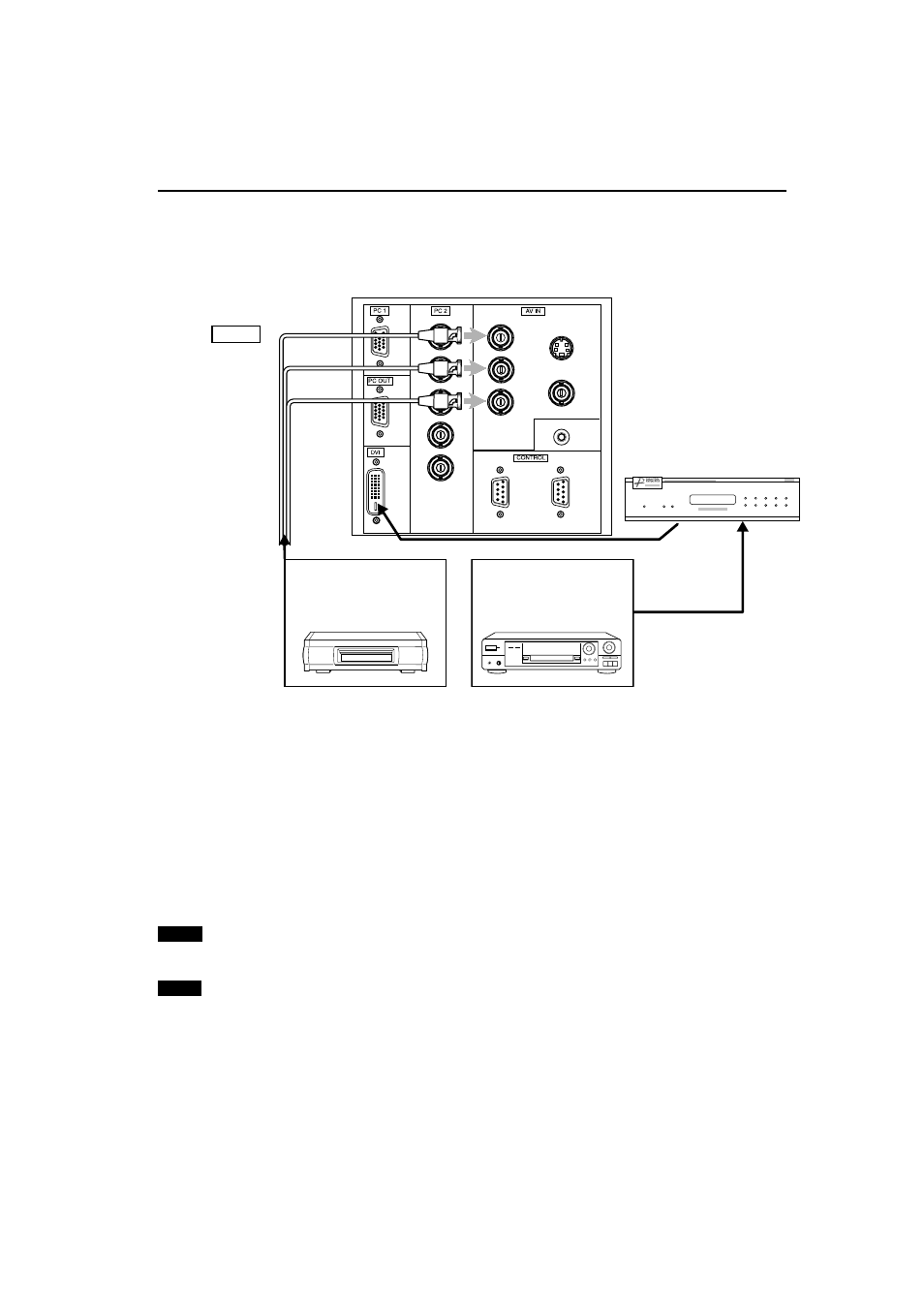

Connecting to Various Devices
Connecting to H
DTV Devices/DVD Players
Before connecting, be sure to turn off both the projector and HDTV devices/DVD players.
• Thoroughly read the manual that comes with each HDTV device or DVD player.
• Use separately available BNC cables to connect H DTV devices and DVD players.
Note
• Connect a component signal output device or DTV-format signal output device.
Memo
• Other devices with component signal output terminals (DVD player (NTSC), etc.) can be connected.
(*DVD: Digital Video Disc)
• DTV-format signals (480i, 480p, 720p, 1080i) can be input. For DTV-format signals which can be handled, refer to “Video
signals” on page 22.
Y
P B /B-Y
P R /R-Y
IN
REMOTE
Y/C
VIDEO
R
G
B
H
IN OUT
V
H DTV devices
BNC cable
(separately available)
To P R /R-Y
To P B /B-Y
To Y
To PC 2
DVD player
HDTV sources can either be
sent as pass-through via the
video processor or connected
directly to the projector.
Video Processor
