17
Installing the Projector
Installing the Projector against the Screen

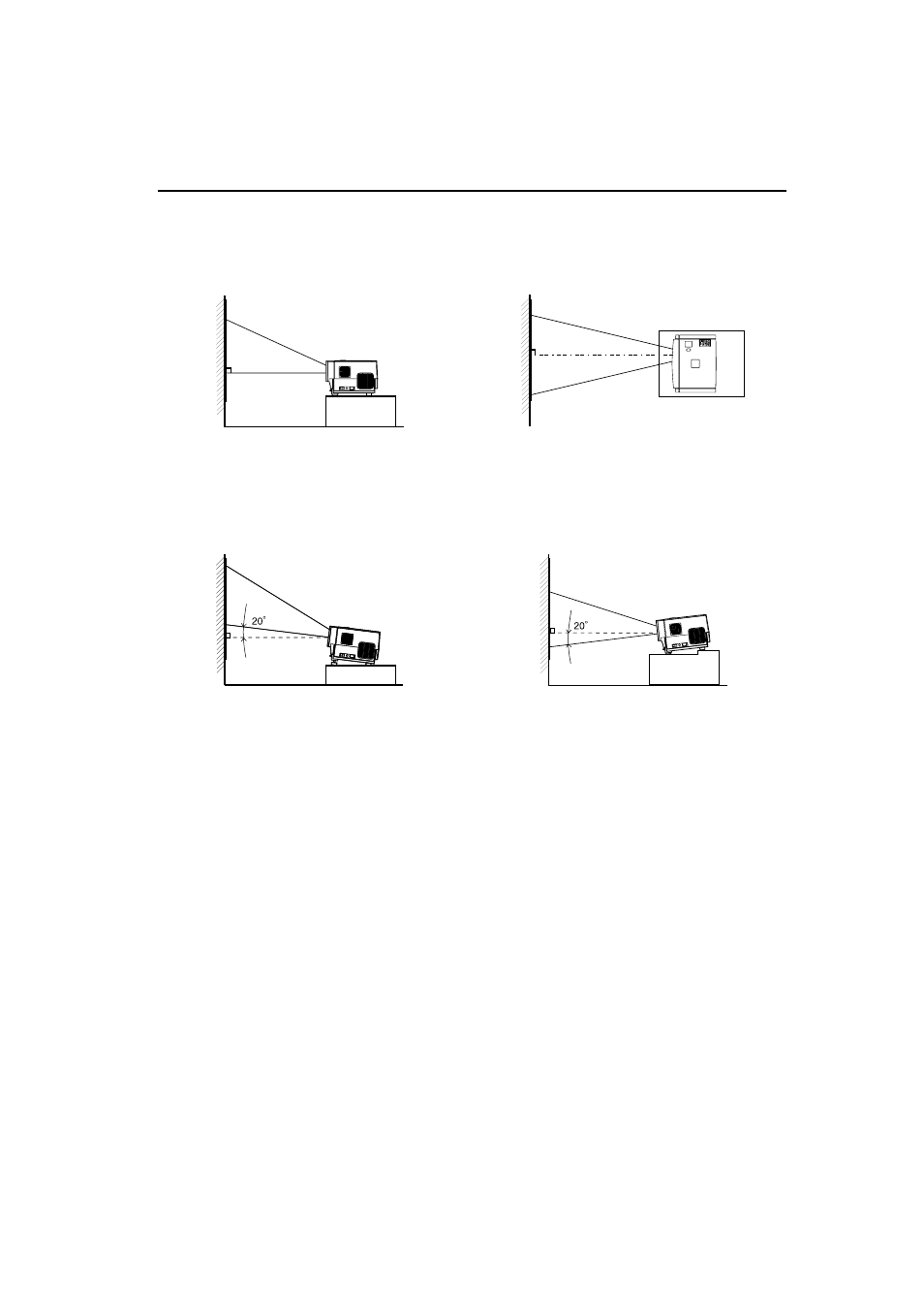

The projector should be placed so that the center line of the lens is at a right angle to the screen as shown in the following
figures.
■
Side view
■
Top view
■
Trapezoidal-distortion correctable maximum angle
The projector has a function to correct the trapezoidal distortion of the projected image on the screen.
To correct this distortion, use the KEYSTONE buttons on the projector. (Refer to “Removing the Trapezoidal Distortion of the
Image” on page 35.) Also, correction is possible by using the “Keystone” menu. (Refer to “Setting and Adjusting Other
Functions (OPTIONS)” on page 54.)
LAMP TEMP ST AND BY HIDE PC VIDEO MENU
KEYST ONE V OLUME PRESET ESCAPE
ENTER OPERA TE
Correctable angle:
Up to approx. 20° upward from the horizontal line
Correctable angle:
Up to approx. 20° downward from the horizontal line
Note: There is a 7% drop (for ceiling mount) using the anamorphic lens. Calculate 7% of the throw distance.
