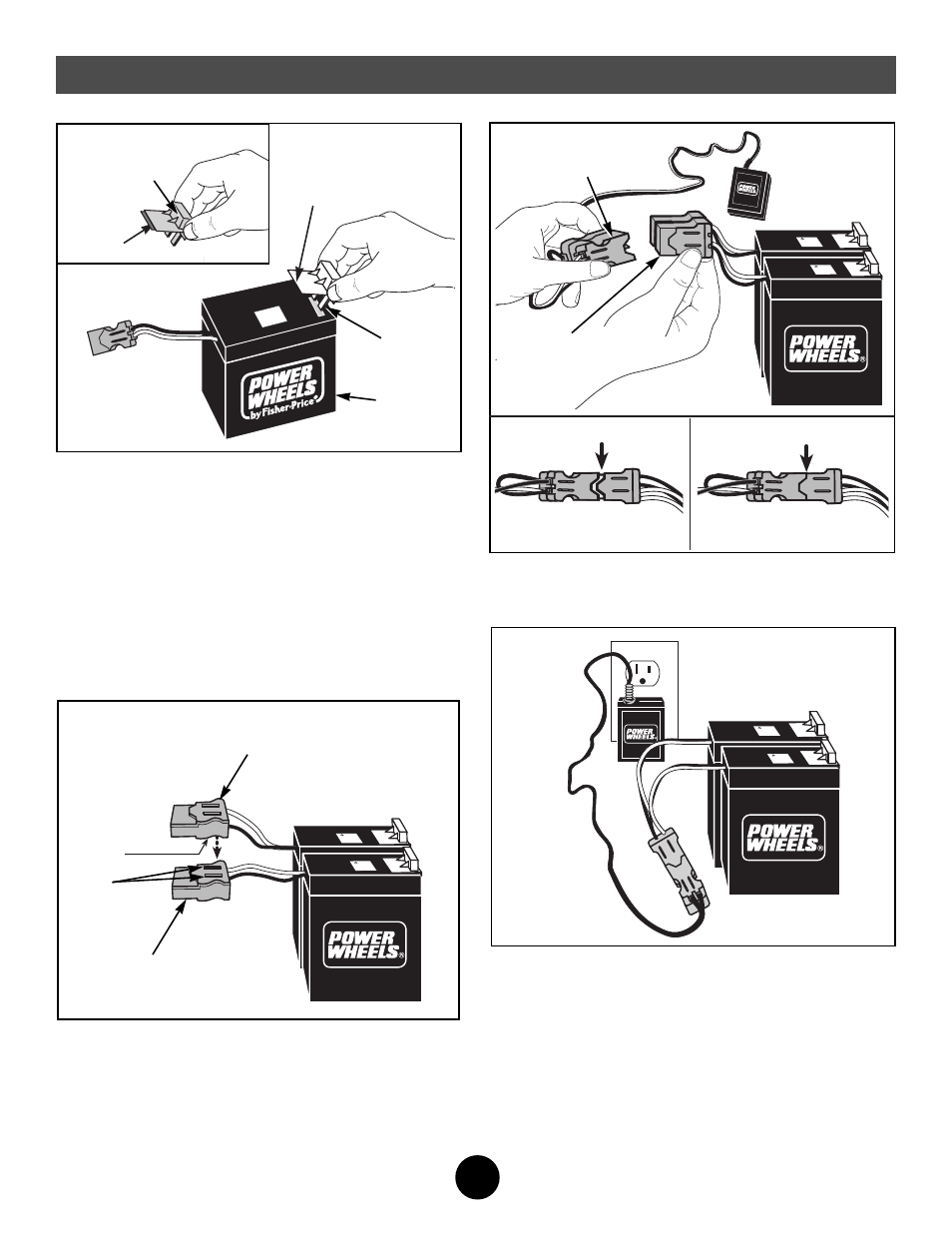

Battery Charging
8
1
• Install a thermal fuse in each battery:
- Peel the backing from the underside of the plastic
thermal fuse casing and discard the backing.
- Insert the thermal fuse, prong side down, into the
battery. Make sure the prongs are fully inserted into
the battery.
- Press on the plastic casing to be sure it is adhered to
the battery.
Note: The thermal fuses are properly installed in the
batteries when the plastic casings rest squarely on
top of the batteries.
WARNING PREVENT FIRE • Do not b ypass a P ower Wheel
• Use only a Red P ower Wheels
• Nev er modify the electr ical
Thermal
Fuse
Backing
Thermal Fuse
Prongs
Battery
WARNING PREVENT FIRE • Do not bypass a Power Wheel • Use only a Red Power Wheels • Never modify the electrical
WARNING PREVENT FIRE • Do not bypass a Power Wheel • Use only a Red Power Wheels • Never modify the electrical
2
• Align the ribs on the top of one of the battery
connectors with the slots on the bottom of the other
battery connector.
• Stack the two battery connectors and press to join.
Note: Make sure that the two connectors on the charger
are also stacked and joined.
Ribs
Slots
Battery Connector
Battery
Connector
WARNING PREVENT FIRE • Do not bypass a Power Wheel • Use only a Red Power Wheels • Never modify the electrical
WARNING PREVENT FIRE • Do not bypass a Power Wheel • Use only a Red Power Wheels • Never modify the electrical
A-Style
Battery Connector
3
• Plug the charger and battery connectors together.
Push firmly to make sure the two connectors are
completely joined.
Incorrect Correct
A-Style
Charger
Connector
GAP NO GAP
• Plug the charger into a standard 120 volt wall outlet.
Note: If power flow to the wall outlet is controlled by a
switch, make sure the switch is “ON”.
• Before first time use, charge the batteries for
at least 18 hours. Never charge the batteries longer
than 30 hours.
• Recharge the batteries for at least 14 hours after
each use of your vehicle. Do not charge the batteries
longer than 30 hours.
• Once the batteries are charged, disconnect the charger
connector from the battery connector. Unplug the
charger from the wall outlet. The batteries are now
charged and are ready to be installed in your vehicle.
4
