IMPORTANT A 25 AMP FUSE MUST BE INSTALLED IN TOP OF BATTERY BEFORE TOY WILL RECHARGE
IMPORTANT A 25 AMP FUSE MUST BE INSTALLED IN TOP OF BATTERY BEFORE TOY WILL RECHARGE
17
Important Note: Use only Power Wheels ® batteries with
Power Wheels ® thermal fuses installed. Use of any other
batteries or fuses will damage your vehicle. Make sure
that you charge the batteries for at least 18 hours using
the enclosed Power Wheels
® 12 volt charger before oper-
ating your vehicle for the first time. Charge the batteries
for at least 14 hours after each use of the vehicle. Never
charge the batteries longer than 30 hours. Failure to follow
these instructions may damage your batteries and will void
your warranty.
1
• Press the tab under the back of the seat and lift to remove
the seat.
• Squeeze the battery retainer arms together to release
the arms from the slots in the vehicle body.
• Press the battery retainer arms in and over the lock
tabs and lift the battery retainer.
• Lower the battery retainer over
the batteries.
• Fit the battery retainer arms down into the slots in the
vehicle body.
• Press the battery arms out over the lock tabs to snap and
secure the battery retainer arms in the slots.
• Re-assemble the vehicle seat.
IMPORTANT A 25 AMP FUSE MUST BE INSTALLED IN TOP OF BATTERY BEFORE TOY WILL RECHARGE OR OPERATE
IMPORTANT A 25 AMP FUSE MUST BE INSTALLED IN TOP OF BATTERY BEFORE TOY WILL RECHARGE OR OPERATE
• Place the batteries upright in the battery compartment.
Make sure the battery connectors are snapped together.
• Plug the battery connector and motor harness connector
together. Push firmly to make sure the two connectors
are completely joined.
Vehicle
Body
Seat
Tab

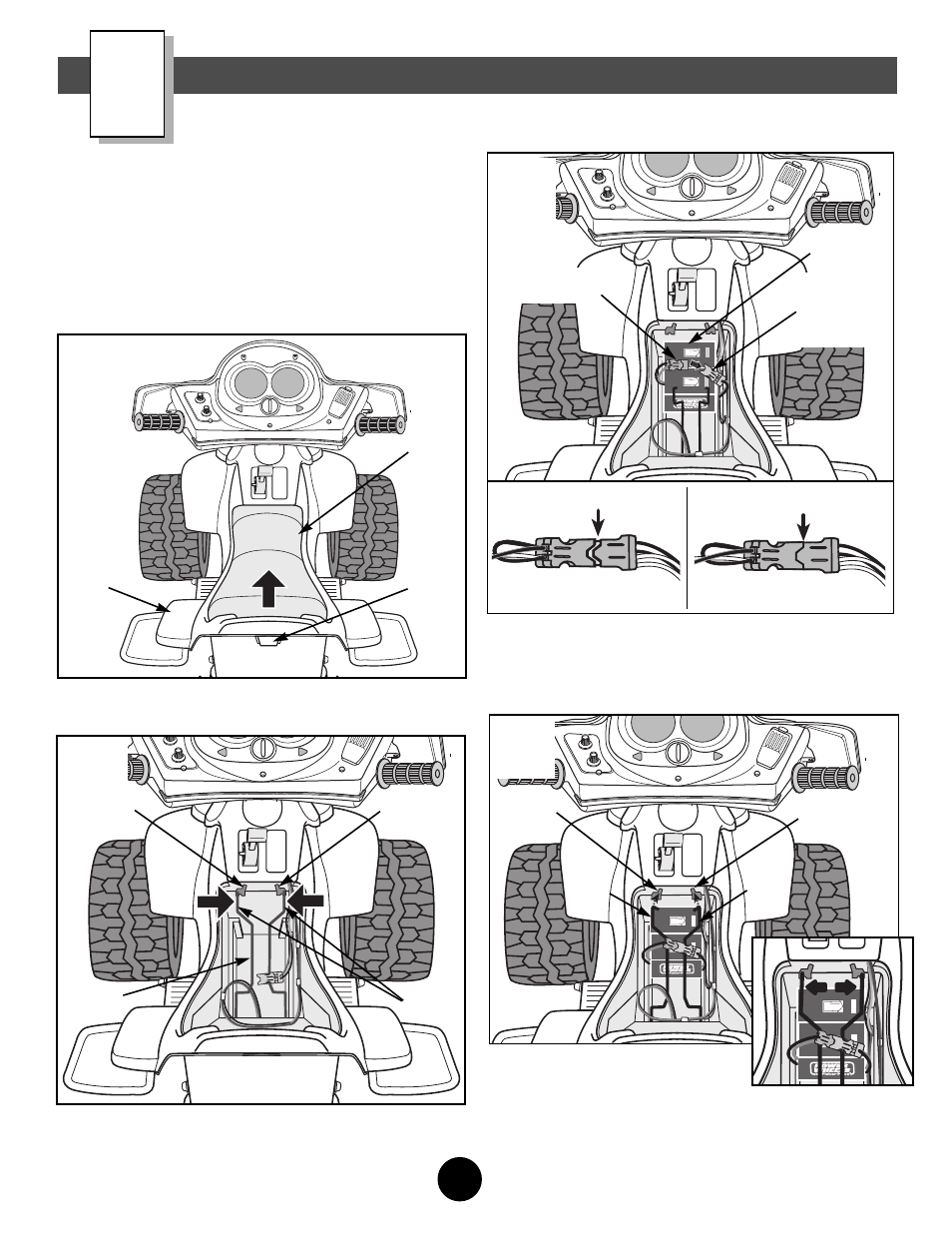

Battery Installation
Battery
Retainer
Arms
Slot
2
Slot
3
Batteries
Battery
Connector Motor
Harness
Connector
Arm
Arm
Slot Slot
4
IMPORTANT A 25 AMP FUSE MUST BE INSTALLED IN TOP OF BATTERY BEFORE TOY WILL RECHARGE
IMPORTANT A 25 AMP FUSE MUST BE INSTALLED IN TOP OF BATTERY BEFORE TOY WILL RECHARGE
H
Incorrect Correct
GAP NO GAP
