2-26
7. 10BASE-T (LAN) (Optional)
7.
10BASE-T (LAN) (Optional)
When the option unit UG230A-DCL is mounted, the 10BASE-T (LAN) connector is usable.

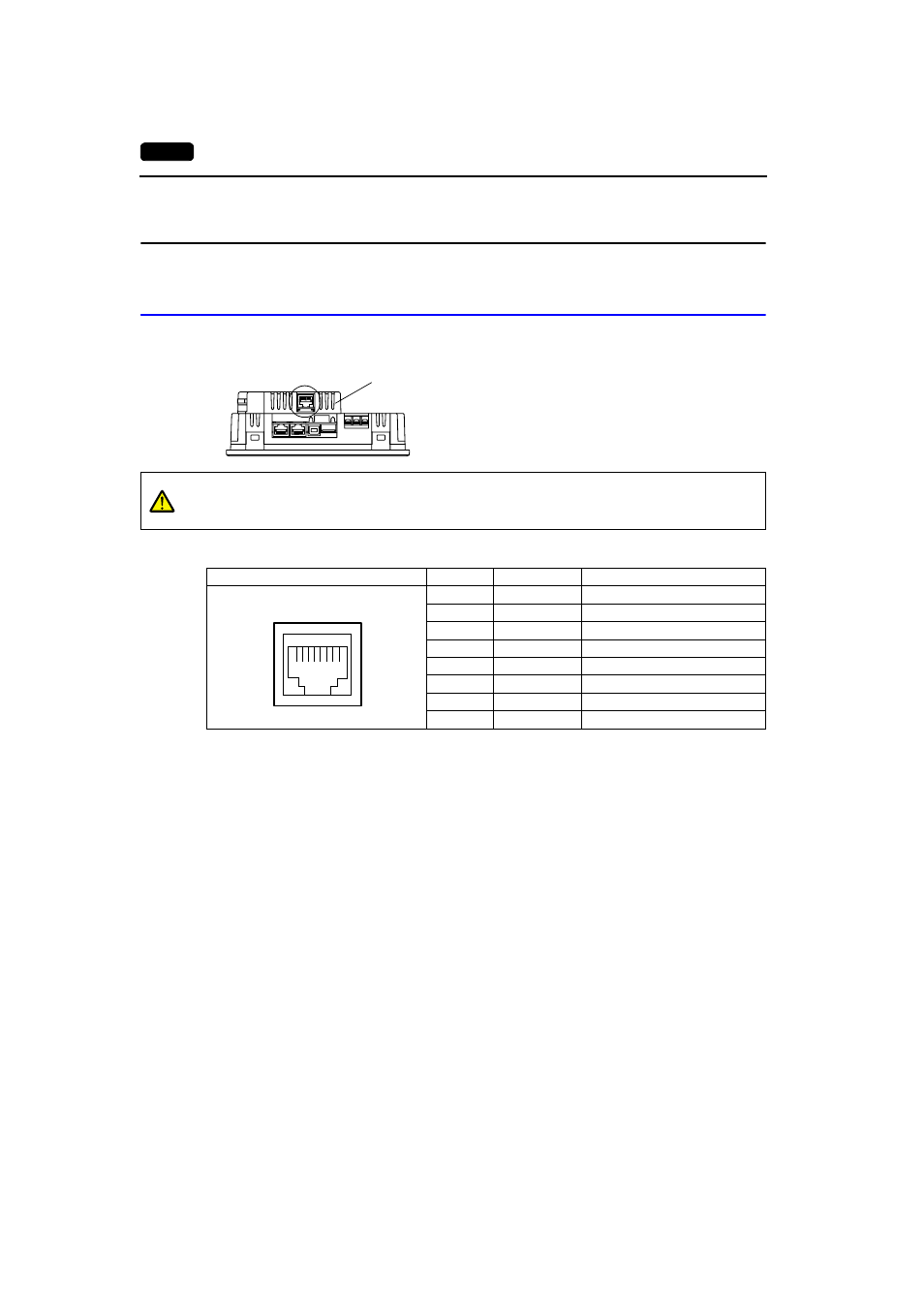

10BASE-T Connector
Use this connector for Ethernet connection.
The LAN (10BASE-T) pins correspond to signals as given below.
Bottom View
UG230A-DCL
CAUTION
MJ1/2 and LAN connector are 8-pin modular jacks.
Check the name plate and insert the connector in the correct position.
LAN
Pin No.
Signal Name
Contents
1
TX+
Ethernet send signal (+)
2
TX
−
Ethernet send signal (
−)
3
RX+
Ethernet receive signal (+)
4
NC
Not used
5
NC
Not used
6
RX
−
Ethernet receive signal (
−)
7
NC
Not used
8
NC
Not used
1 2 3 4 5 6 7 8
