2. Dimensions and Panel Cut-out 2-7
S
peci
ficati
ons

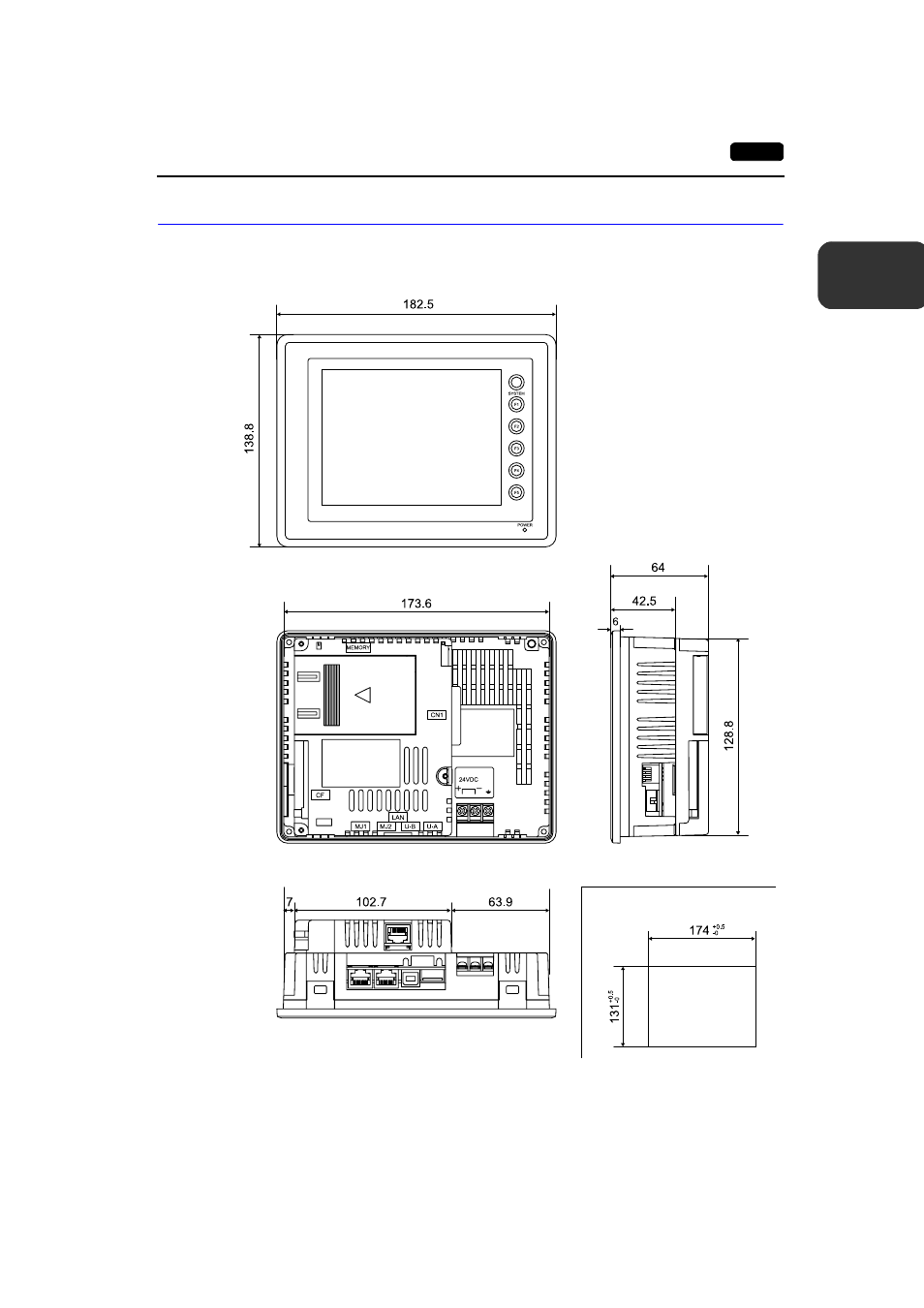

UG230 + UG230A-DCL External View and Dimensions
(Unit: mm)
• Side View
• Front View
• Panel Cut-out Dimensions
• Rear View
• Bottom View
