SUFF/UFF FILTRATION SYSTEMS
CHAPTER 3: INSTALLATION AND OPERATION
3-12
3.2.3 Installing the Filter
1. Slide the filter inside the fryer cabinet. For
latchless and latching hold-down ring
equipped filters, ensure the male-female slip-
fitting coupling is fully engaged. Ensure the
filter pan opening is directly under the center
dump tube (current) or angled drain tubes
(previous) to avoid splashing hot oil.
2. On filter-leaf equipped filters, ensure the
filter system hose disconnect is properly
attached to the filter-leaf disconnect. Ensure
the filter pan openings are properly
positioned under the drain tubes to avoid
splashing hot oil.

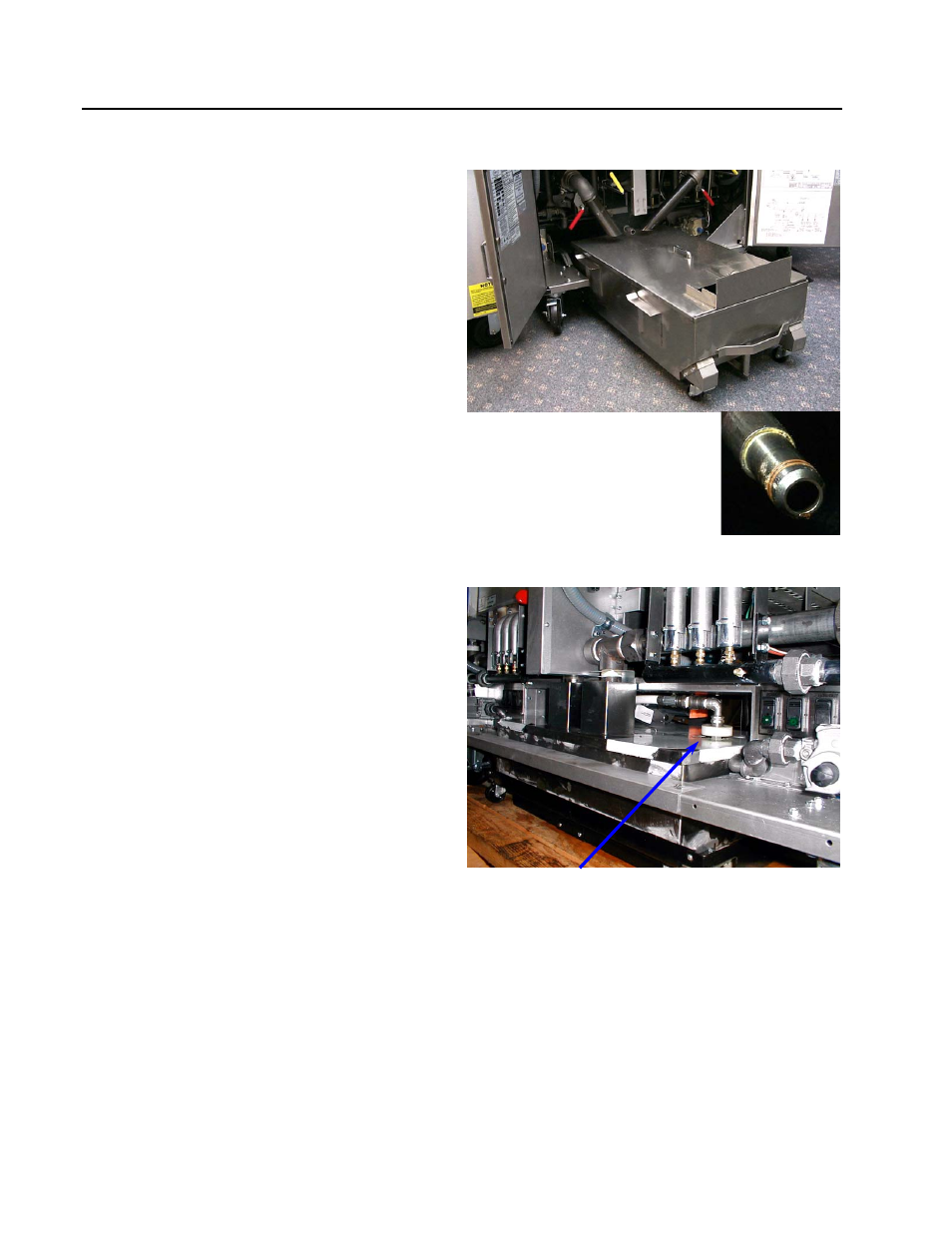

The filter pan slides under the
fryer (above), connecting with a
slip fitting (right). Slip fitting
location will vary (above or to
the side of the filter pan),
according to fryer system.
Filter-leaf disconnect properly attached to filter
system hose disconnect.
