Note
• Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage
to the unit.

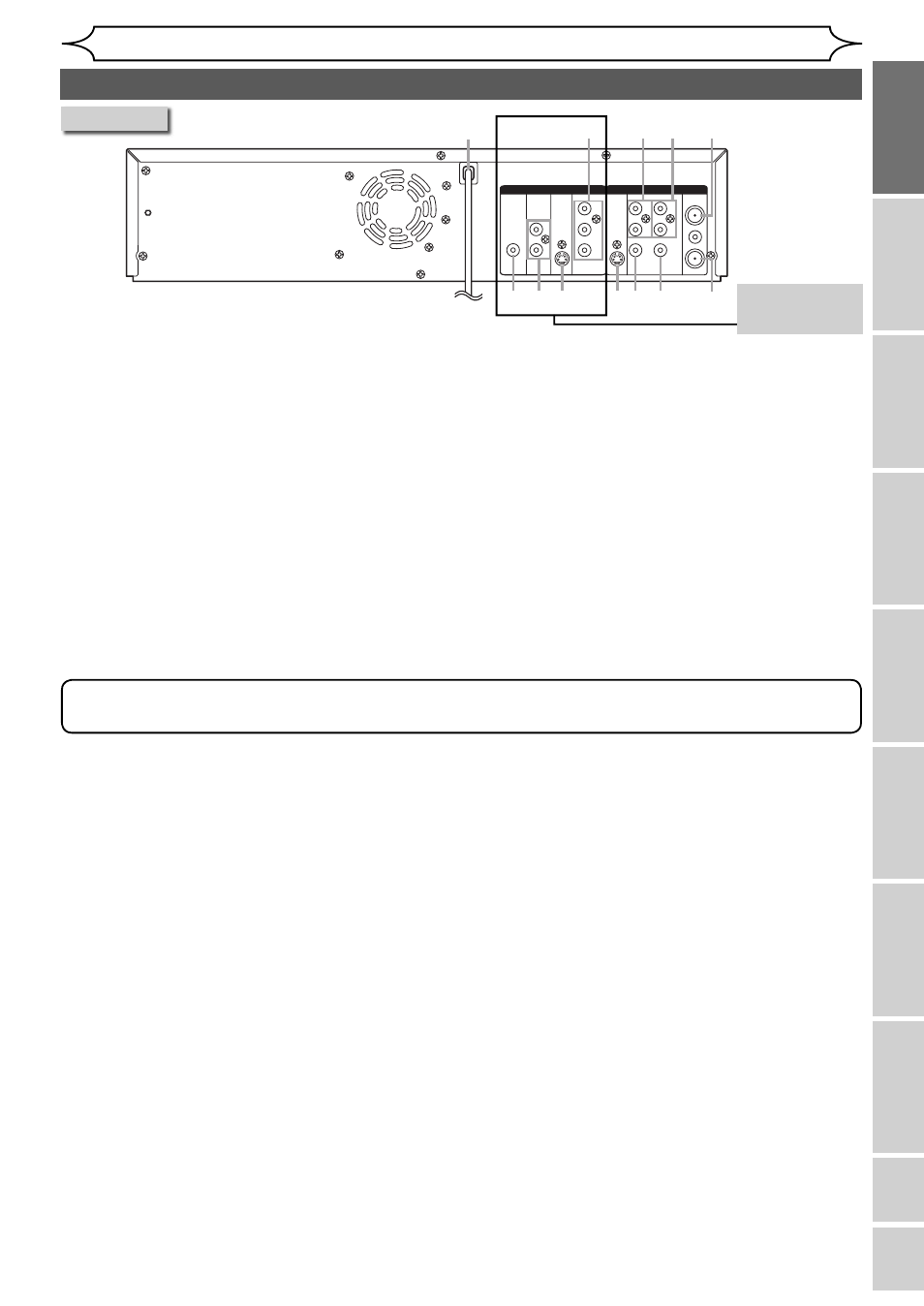

Rear Panel
ANTENNA
IN
IN - AUDIO - OUT S-VIDEO S-VIDEO AUDIO OUT DIGITAL AUDIO OUT
COAXIAL
COMPONENT
VIDEO OUT
IN - VIDEO - OUT
L Y
OUT P B
/C B
P R /C R
L
R L
R
R
OUT
DVD/VCR DVD
IN
5 3 4 2 1
7 6 10 9 8 11 12
1. AC Power Cord (DVD/VCR)
Connect to a standard AC outlet to supply power to this unit.
2. COMPONENT VIDEO OUT jacks (DVD only)
Use to connect a TV monitor with component video
inputs with a component video cable.
3. AUDIO IN jacks (EXT1) (DVD/VCR)
Use to connect external equipment with a standard
audio cable.
4. AUDIO OUT jacks (DVD/VCR)
Use to connect a TV monitor, AV receiver or other
equipment with a standard audio cable.
5. TV ANTENNA IN jack (DVD/VCR)
Use to connect an antenna.
6. TV ANTENNA OUT jack (DVD/VCR)
Use to connect an antenna cable to pass the signal
from the TV ANTENNA IN to your TV monitor.
7. VIDEO OUT jack (DVD/VCR)
Use to connect a TV monitor, AV receiver or other
equipment with a standard video cable.
8. VIDEO IN jack (EXT1) (DVD/VCR)
Use to connect external equipment with a standard
video cable.
9. S-VIDEO IN jack (EXT1) (DVD/VCR)
Use to connect the S-Video output of external
equipment with an S-Video cable.
10. S-VIDEO OUT jack (DVD only)
Use to connect the S-Video input of a TV monitor, AV
receiver or other equipment with an S-Video cable.
11. AUDIO OUT jacks (DVD only)
Use to connect a TV monitor, AV receiver or other
equipment with a standard audio cable.
12. COAXIAL DIGITAL AUDIO OUT jack (DVD only)
Use to connect an AV receiver, Dolby Digital decoder
or other equipment with a coaxial digital input jack
with a digital coaxial cable.
• These jacks are
useful only in
DVD mode.
