9500 Valve

Instruction Manual

Form 2433
November 2007

11

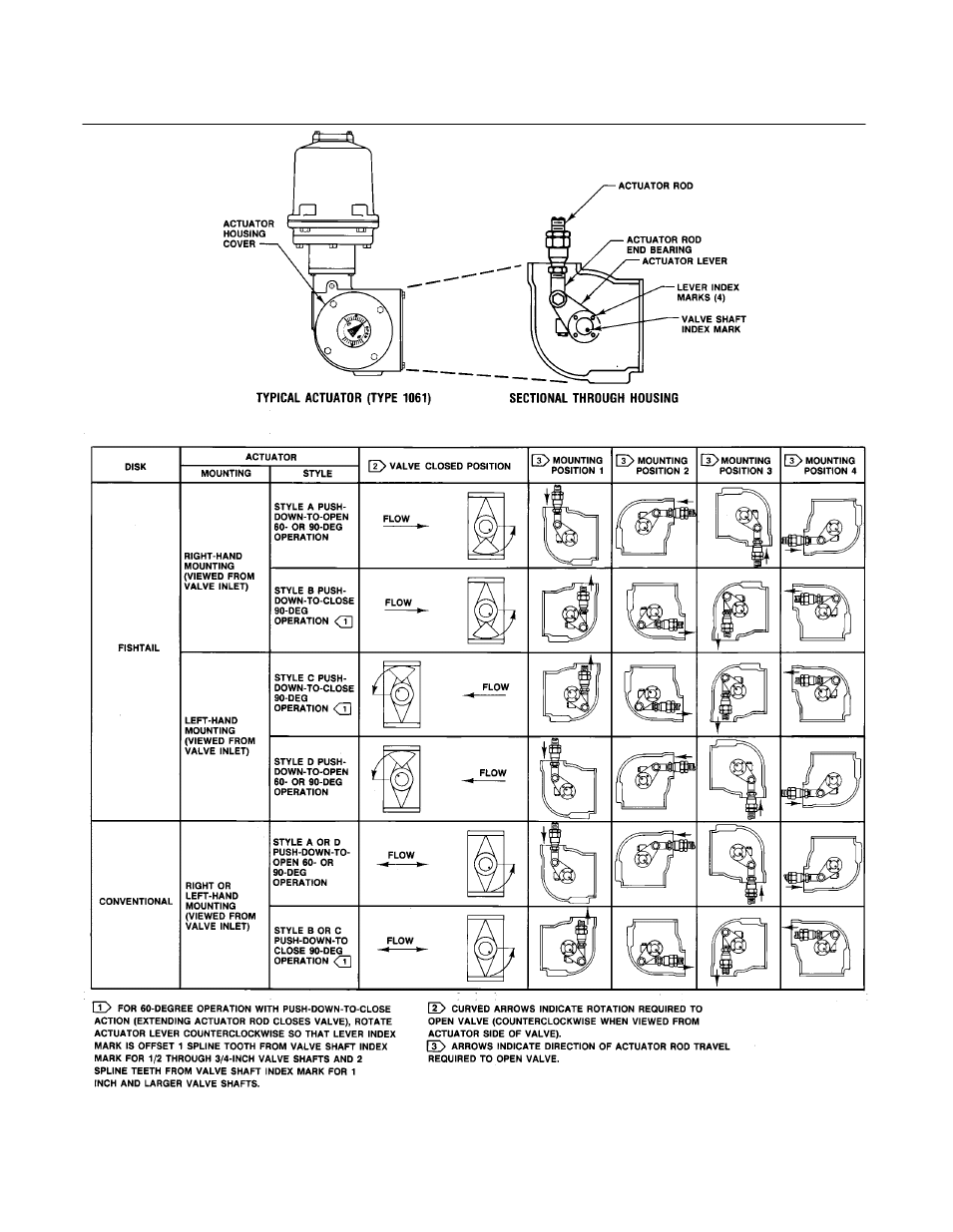

Figure 6. Splined-Shaft Index Mark Alignment for Standard

Mounting Position-Valve Action Combinations

54A3246-B
B1054-3*/IL

14A7222-A
54A3246-B
A1837-3/IL
