User maintenance instructions User maintenance instructions
Cleaning the spray arms and filter plate
Ensure the DishDrawer® is cool before you start cleaning.
To remove the base rack and spray arms
1 Unplug the DishDrawer® or turn it off at the power supply.
2 Take out the cutlery basket.
3 Unclip the glass supports from the rack wires and fold all the adjustable racks away, so that they
are upright and close to the top.
4 Fold down all the tines.
5 Remove the base rack carefully. Start lifting from the back first, tilting the rack as needed to clear
the adjustable racks and the dispenser in the front.
6 Unclip the spray arms off their mounting valves and shake any foreign material out.
7 Rinse the spray arm clean under running water and wipe with a damp cloth.
8 If necessary, wipe any soiling off the filter plate with a clean, damp cloth.
To replace the spray arms and base rack
9 Clip the spray arms back onto their mounting valves. Be careful that you don’t force them too
hard, and apply too much pressure on the wash pump housing. You should hear them click
into place. Rotate them with your hand to check that they are located properly.
10 Replace the base rack, lowering its front edge into position first.
11 Clip the glass supports back on and arrange the racking back to your preference.
12 Plug the DishDrawer® back in or turn it on at the power supply.
Note: Where there is broken crockery or glass in the drawer, it must be carefully removed to
prevent damage to the DishDrawer®.
3
3
6
6
4
5

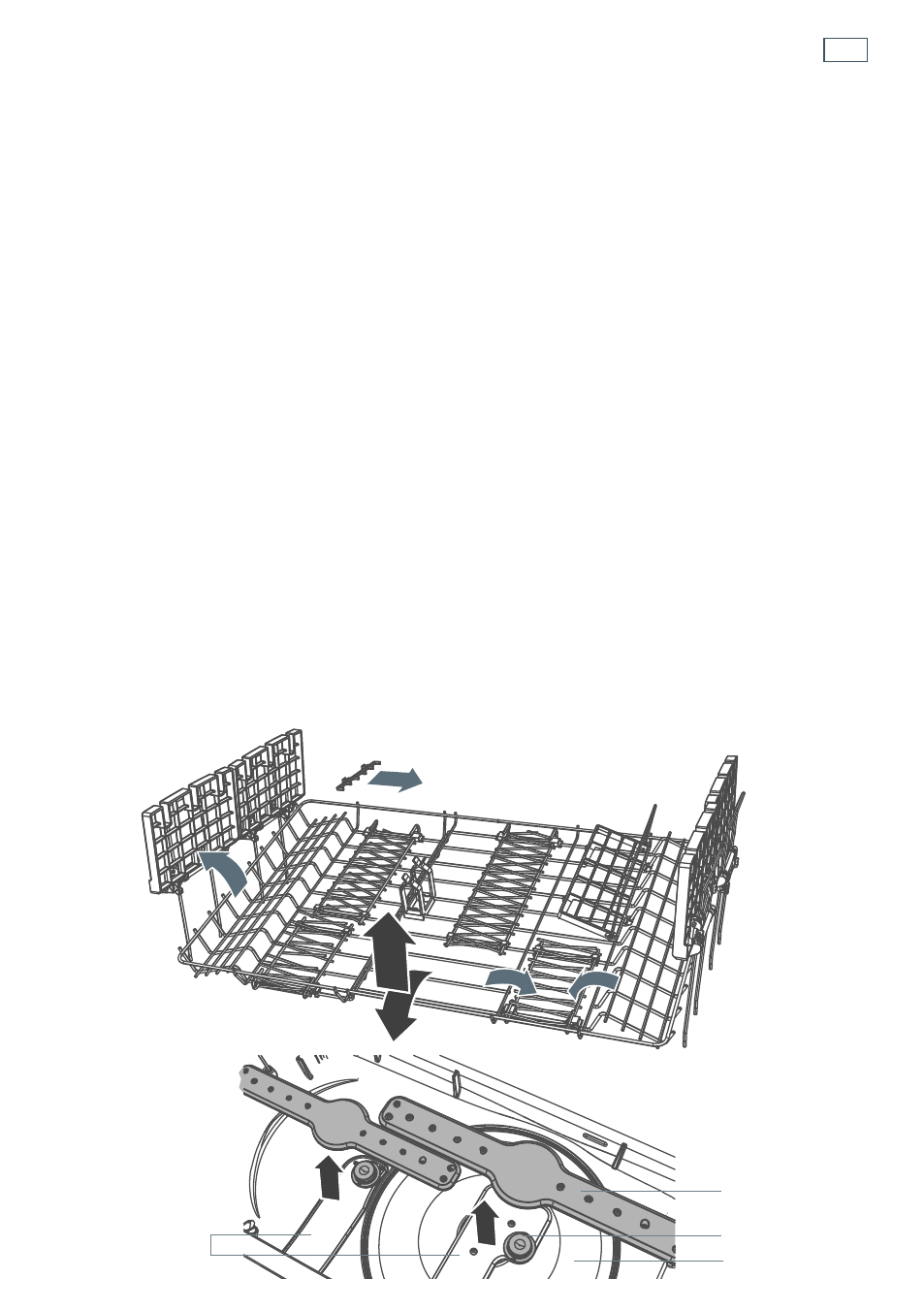

Spray arm
Mounting valve
Filter plate
Wash pump housing
