Furuno AIS Transponder FA-50 User Manual
Page 18
1. INSTALLATION
1-8

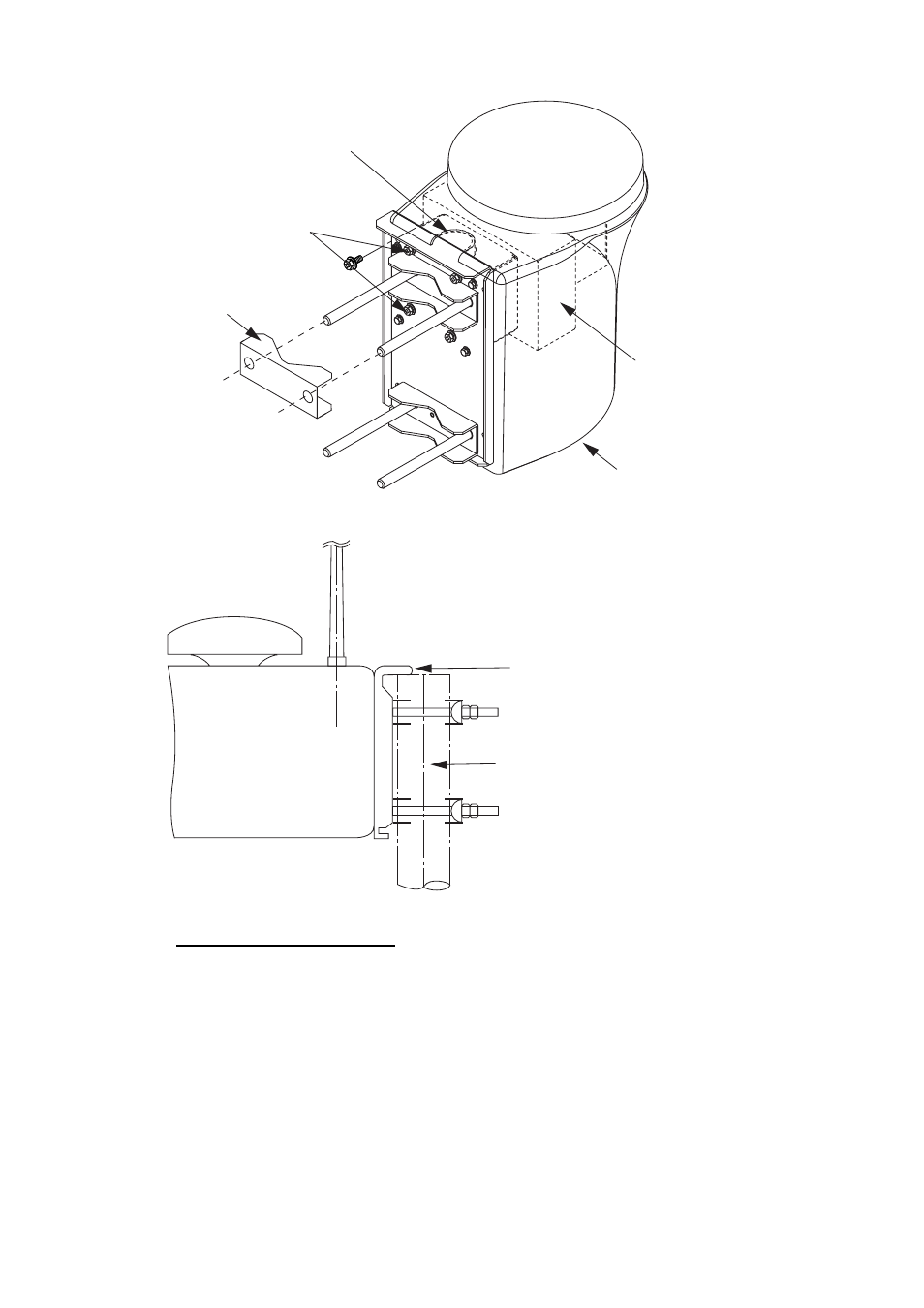

GPS/VHF combined antenna
Installing distributor DB-1
The length of the cable between the distributor and transponder is 1 m so locate the
distributor within 1 m from the transponder. Fix the distributor on the bulkhead, facing
the cable entrance downward. Remove the lid of the distributor and secure the distrib-
utor with two self-tapping screws.
Antenna fixing bracket
Loosen four screws.
(M5x16)
Bottom cover
Combined box
Whip antenna fixture
Stanchion
The top of the stanchion comes
into contact with the flange.
