MB39A104
37

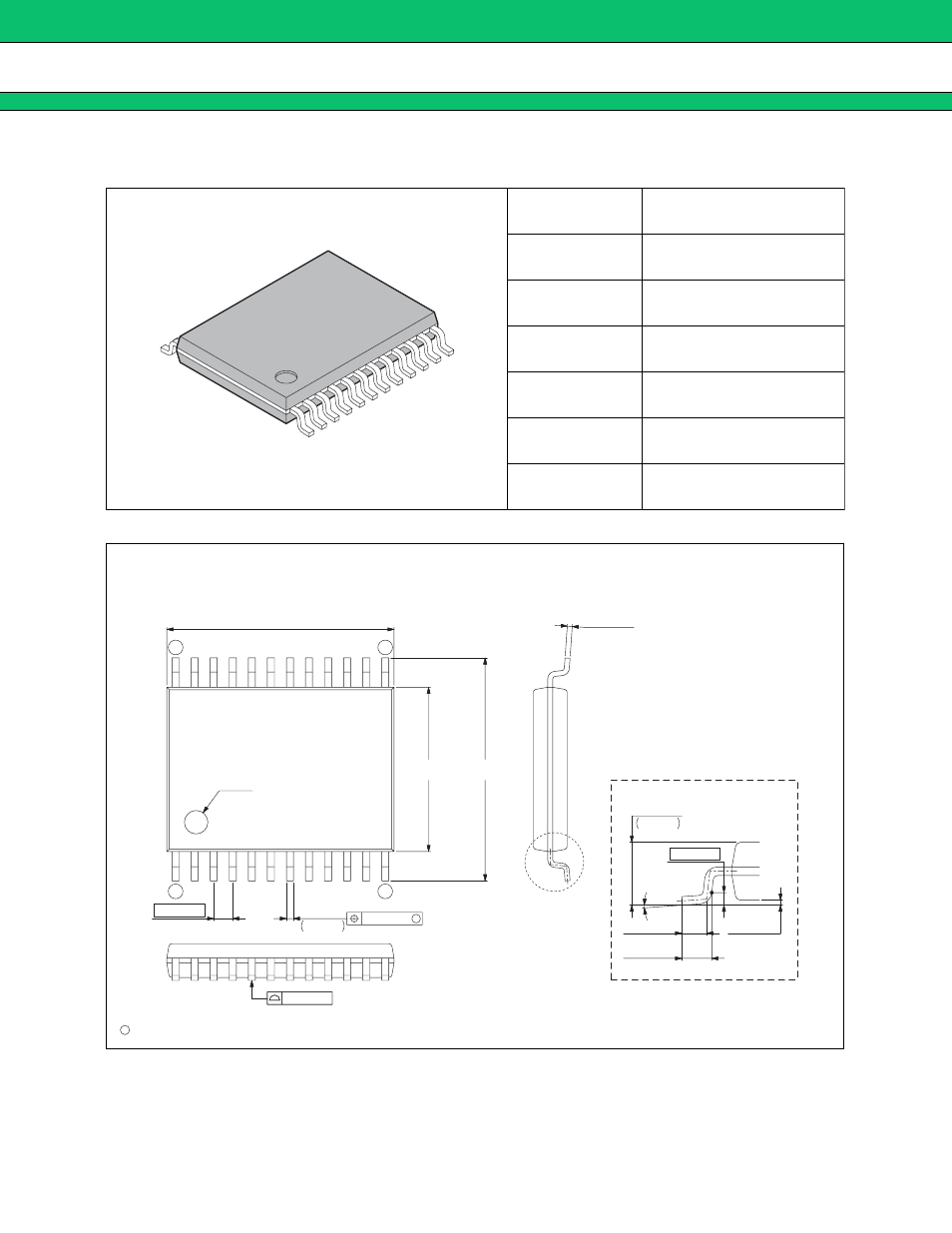

■ PACKAGE DIMENSION
24-pin plastic SSOP Lead pitch 0.65 mm
Package width
×
package length
5.6 × 7.75 mm
Lead shape Gullwing
Sealing method Plastic mold
Mounting height 1.45 mm MAX
Weight 0.12 g
Code
(Reference)
P-SSOP24-5.6 ×7.75-0.65
24-pin plastic SSOP
(FPT-24P-M03)
(FPT-24P-M03)
C 2003 FUJITSU LIMITED F24018S-c-4-5
7.75±0.10(.305±.004)
5.60±0.10 7.60±0.20
(.220±.004) (.299±.008)
* 1
* 2
0.10(.004)
1 12
13 24
0.65(.026)
–0.07
+0.08 0.24
.009
+.003
–.003
M 0.13(.005)
INDEX
0.17±0.03
(.007±.001)
"A"
0.25(.010)
0.10±0.10
(.004±.004)
(Stand off)
Details of "A" part
(Mounting height)
1.25 +0.20
–0.10
–.004
+.008
.049
0~8˚
0.50±0.20
(.020±.008)
0.60±0.15
(.024±.006)
0.10(.004)
Dimensions in mm (inches).
Note: The values in parentheses are reference values.
Note 1) *1 : Resin protrusion. (Each side : +0.15 (.006) Max).
Note 2) *2 : These dimensions do not include resin protrusion.
Note 3) Pins width and pins thickness include plating thickness.
Note 4) Pins width do not include tie bar cutting remainder.
