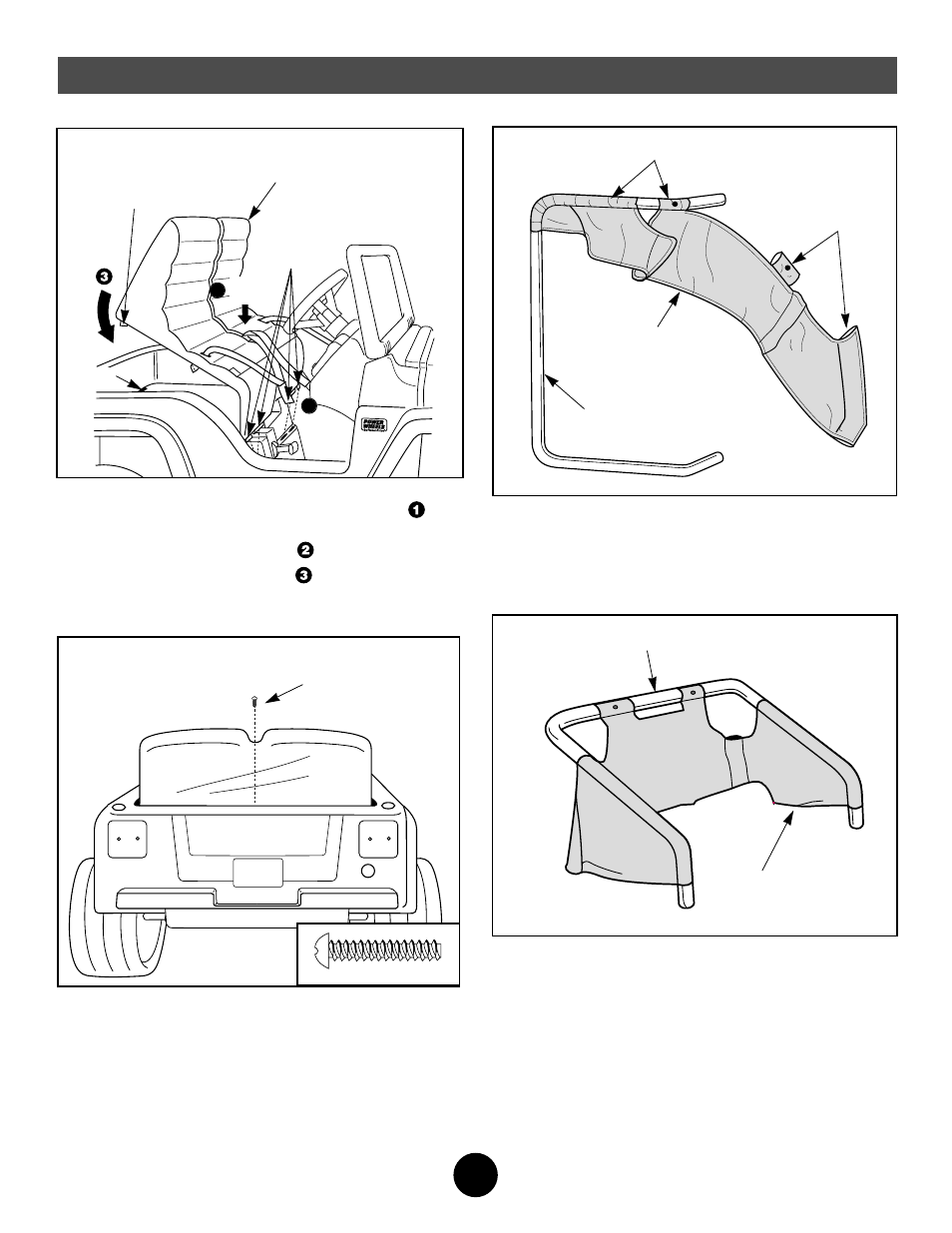

• Extend the canopy completely around the sport bar.
Sport Bar
Canopy
22
Sport Bar
Canopy
Canopy Sleeves
Canopy
Sleeves
• Position the sport bar on its side so that the sport bar
ends curve away from you.
• Position the canopy opposite the sport bar with the
netting facing away from you.
• Slide the four canopy sleeves onto the sport bar.
Assembly
15
20
• With the seat at an angle, insert the tabs on the front
edge of the seat into the slots in the foot-well wall .
• Push down firmly on the edge of the seat above each
tab to snap the tabs into the slots .
• Rotate the back of the seat down to snap the seat
back tabs into the slots in the vehicle body. Push down
firmly on the seat back.
Seat
Tabs
Seat Back Tabs
Slot
1
2
PUSH
HERE
21
#8 x 1" Screw
• Insert a #8 x 1" screw into the rear of seat as shown.
• Tighten the screw with a Phillips screwdriver. Do not
over-tighten.
