FUJITSU ISSUE 02 3XAX-00803AAS - Manual (Page 92)

Managing the Software In Commercial Confidence
Page 4 - 28 ADSL USB Modem - User Manual
Issue 02 March 02 FTEL

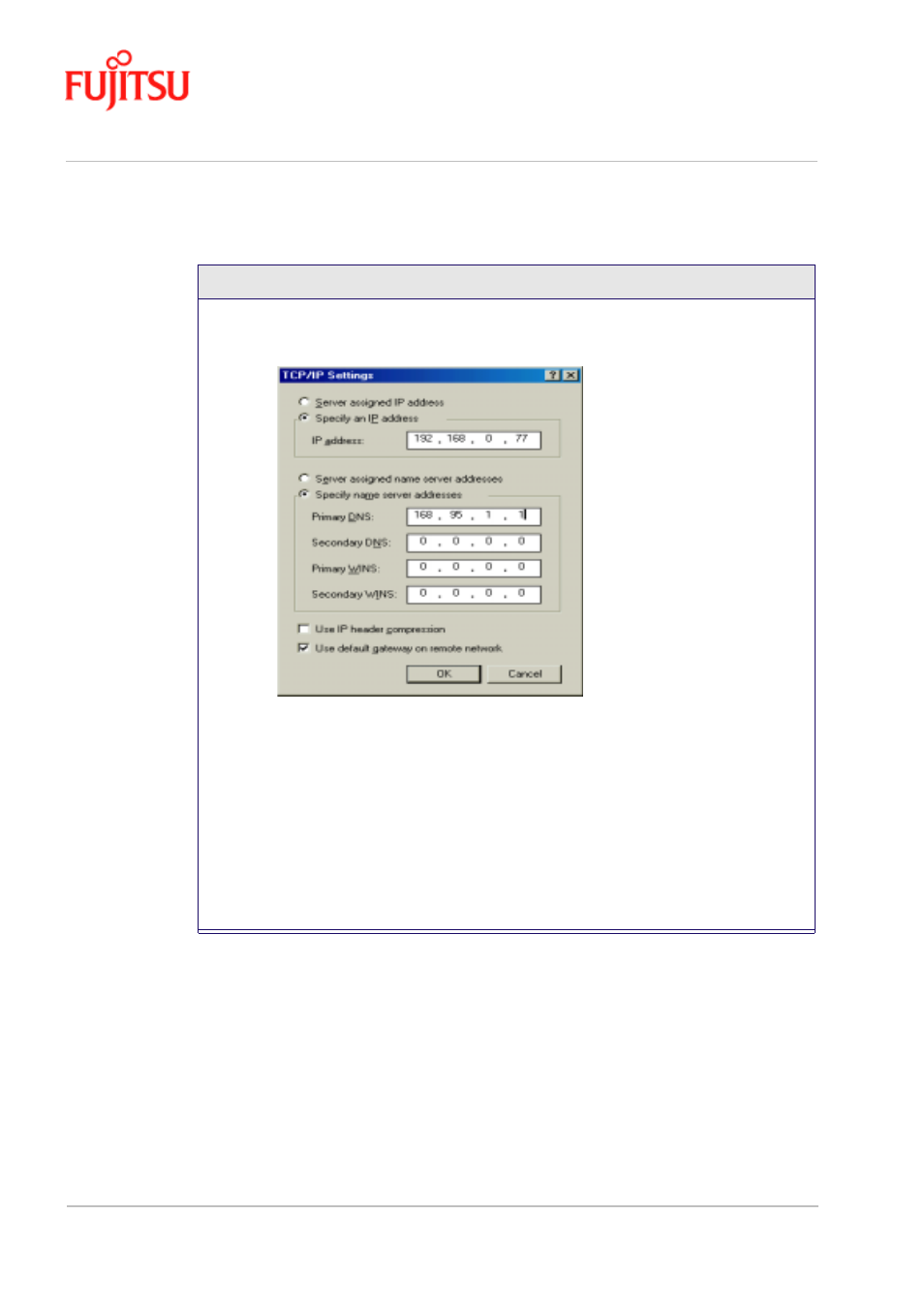

4. The “TCP/IP Settings” window is used to modify the IP address, Domain Name
Server addresses and/or default gateway as follows:
• Change the IP address to a user defined address by selecting Specify an IP address
(click inside the circle to the left of it) and typing the address in the space provided
• Change the Domain Name Server addresses to user defined addresses by
selecting Specify name server addresses (click inside the circle to the left of it) and
typing the addresses in the spaces provided
• Change the default gateway by leaving the box blank to the left of Use default
gateway on remote network
Click OK .
5. The “ Dial-Up PPP Connection” window is redisplayed. Click OK to end the
modifying TCP/IP options session.
Procedure 4-9: Set the TCP/IP for Windows ME (Continued)
