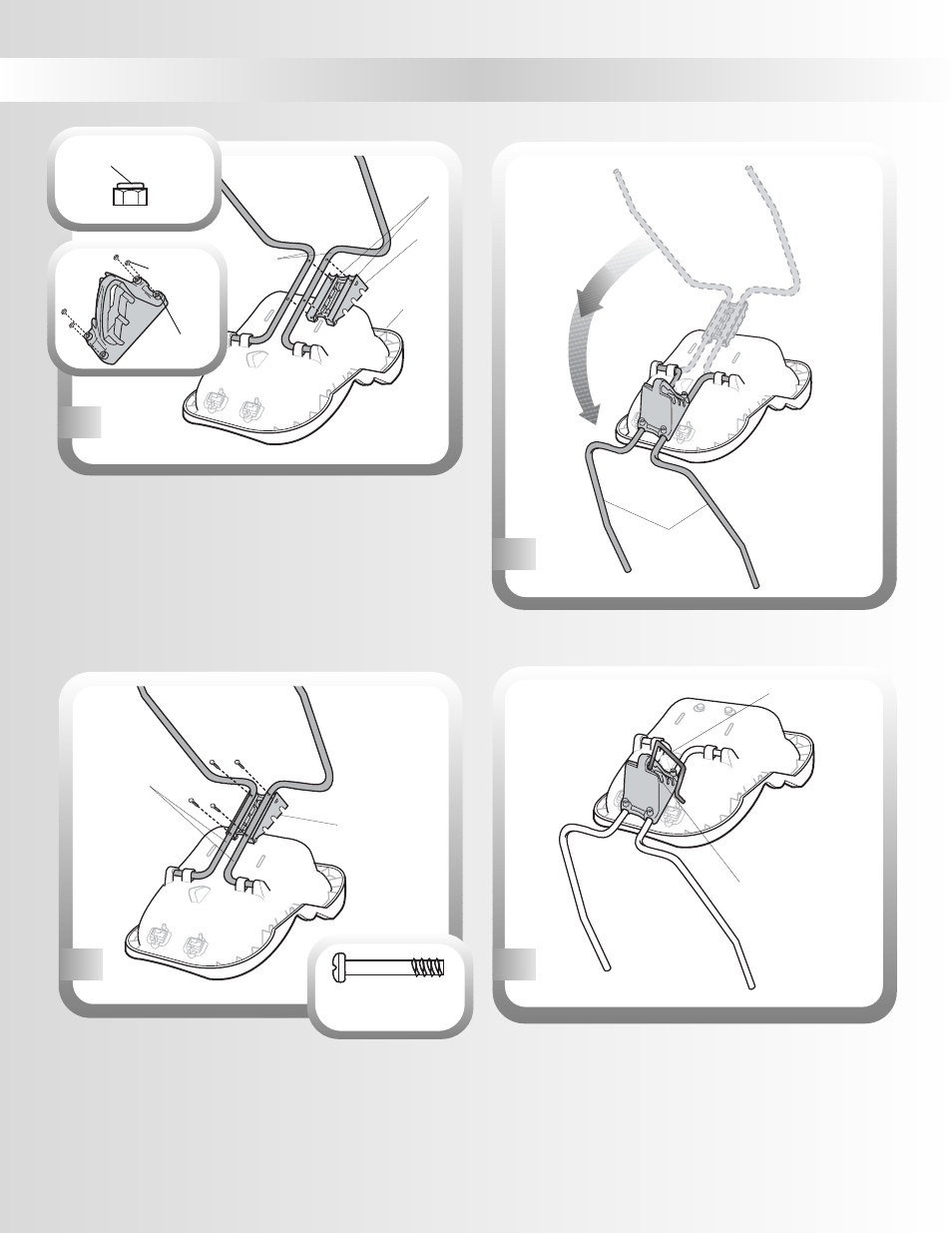

• Insert four M4 screws into the seat tubes and tighten.
Assembly
• Rotate the seat tubes down.
• Fit the seat wire through the slot in the bracket as shown.
7
Seat
Tubes
14
Bracket
Bracket Slot
Seat Wire
Seat Tubes
15
16
• Position the bracket so that the tall end is toward the
bottom edge of the seat.
Hint: The M4 lock nuts have been assembled to the bracket at
the factory. During shipment of this product, they may have
fallen out. Check to be sure there is a lock nut in each hexagonal
opening on the bracket. If one (or more) has fallen out, fit the lock
nut into a hexagonal opening in the bracket. Make sure the
rounded side of the lock nut is facing up.
• Fit the grooves on the bracket to the seat tubes, as shown.
Seat
Tubes
Bracket
Grooves
Tall
End
Bottom
Edge of
Seat
13
M4 Screw - 4
Shown Actual Size
Lock Nut
Hexagonal
Opening
Shown Actual Size
M4 Lock Nut
Rounded Side
