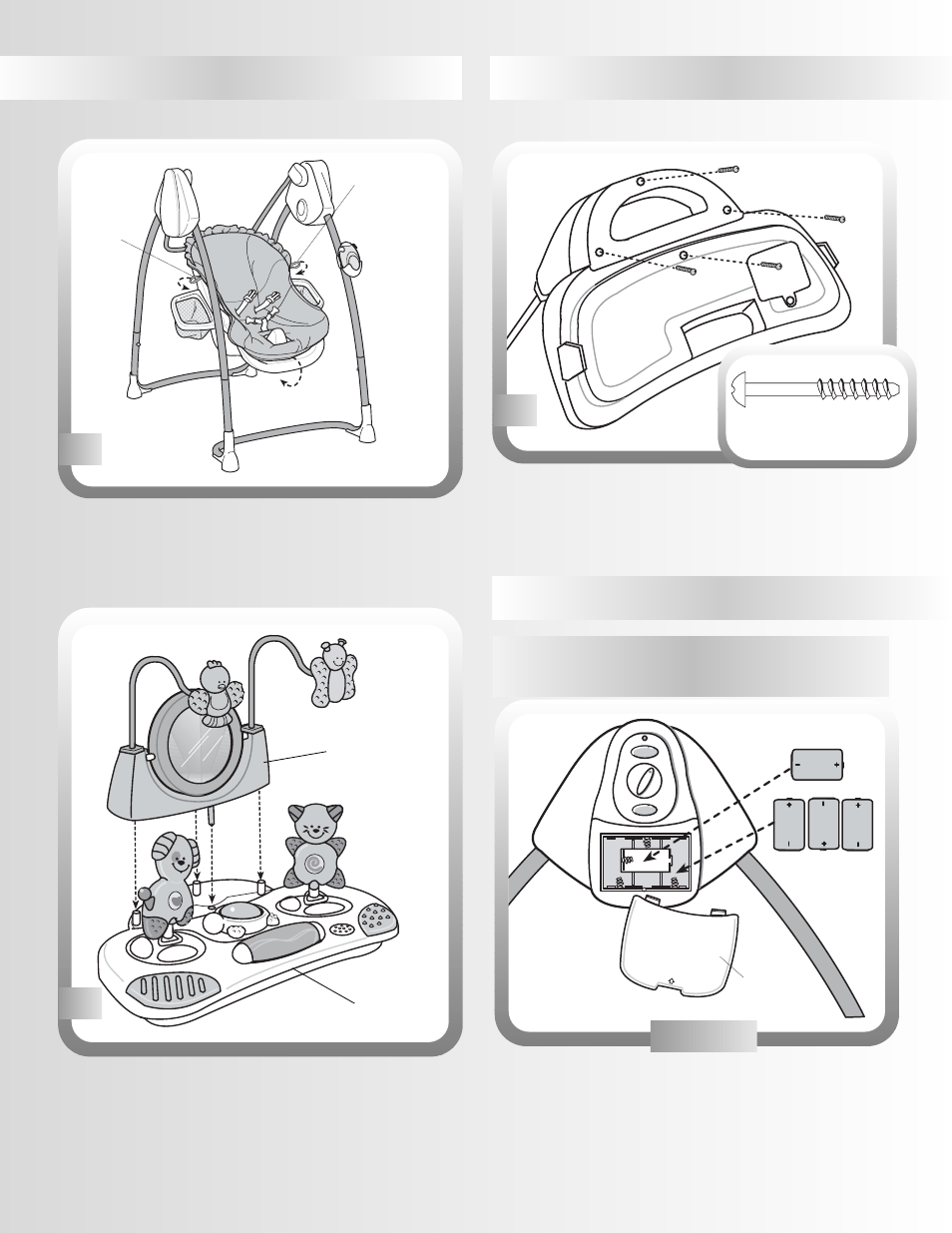

• Position the lights ‘n sounds tray on a flat surface, with the
roller facing you.
• Position the mirror base, with the mirror toward you.
• Fit the mirror base onto the lights ‘n sounds tray.
26
• Turn the assembly over. Insert four #8 x 1 3 /
8
" screws into the
bottom of the lights ‘n sounds tray and tighten.
Assembly is now complete.
27
Mirror Base
Lights ‘n
Sounds Tray
• Fit the bottom edge of the pad around the bottom edge
of the seat.
• Hook the elastic loops on each side of the pad to the peg
on the back of the accessory bins.
25
Elastic
Loop
Elastic
Loop
#8 x 1 3 /
8 ” Screw - 4
Shown Actual Size
Battery Installation
• Locate the battery compartment door on the swing frame.
• Insert a coin into the battery compartment door and pry the
battery compartment door off of the swing frame.
• Insert four “D” (LR20) alkaline batteries as indicated inside
the battery compartment.
• Replace the battery compartment door.
Battery
Compartment
Door
Swing
Hint: When swinging, sound or power L.E.D. slows/dims/stops,
it’s time to replace the batteries! We recommend using alkaline
batteries for longer battery life.
