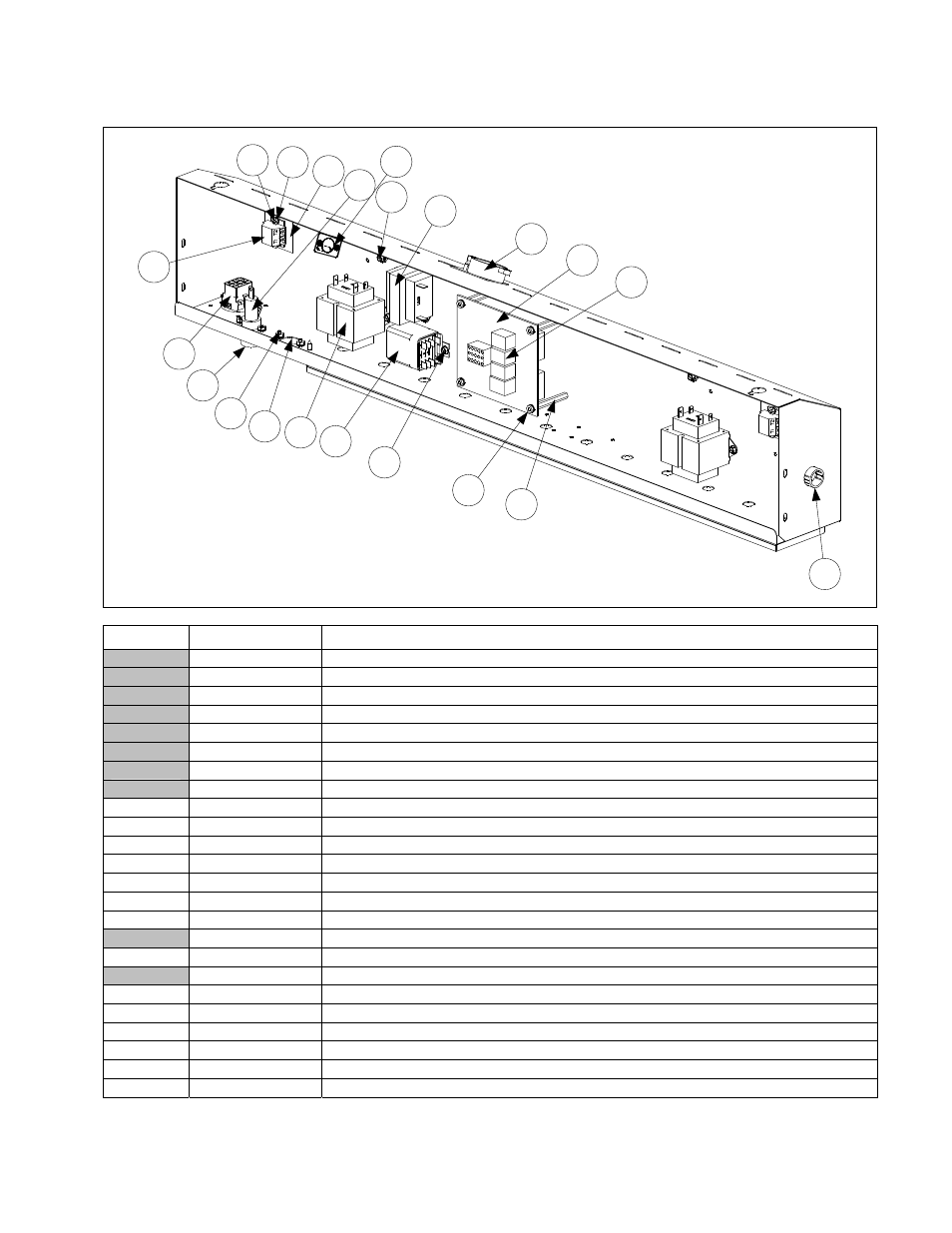

2.7 Component Box Assembly
1
2
3
4
21
6
9
8
7
10
11
12
13
19
16
15
18
20
14 17
5
Item Part Number Description
106-3860 Box Assembly, FP228 208/240V Component
106-3588 Box Assembly, FP228 480 V Component
106-3859 Box Assembly, FP28/36S 208/240V LT Component
106-3858 Box Assembly, FP28/36S 208/240V RT Component
106-3857 Box Assembly, FP128/236S 208/240V MDL Component
106-3691 Box Assembly, FP28/36S 480V LT Component
(Use 106-5943 FP28DV LT)
106-3692 Box Assembly, FP28/36S 480V RT Component
106-3795 Box Assembly, FP128/236S 480V MDL Component
1 809-0159 12-Pin connector FM
2 200-6506 Plate, Component Box Fuse Cover
3 806-3660 Sound Device, High Output
4 806-6336 PCB Assembly, Interface (FV) Common Elect
5 807-3932 Relay, 12VDC SPDT 12A Sealed
6 807-0670 Relay, Midtex DPDT 24V
7 807-0680 Transformer 208/240/24V 50/60 20VA (208/240)
807-0800 Transformer 120V 50/60-24V 50VA (480V)
8 807-0979 Transformer 208/240/24VAC 50/60 43VA (208/240)
807-0855 Transformer 120V 50/60-12V 20VA (480V)
9 807-0922 Holder, Buss Fuse HPS
10 807-2278 Fuse, 20 Amp
11 810-0045 Bushing, Heyco, 875-11 (11/16")
12 826-1680 Clamp, Heyco #3327 Nylon Wire (Pkg. of 8)
13 826-1365 Screw, 6-32 X ⅜” TR SL HD NP (Pkg. of 25)
14 826-1366 Nut, 4-40 KEPS Hex W/Ext Tooth (Pkg. of 25)
