Frymaster 2836 User Manual
Page 26
2-2

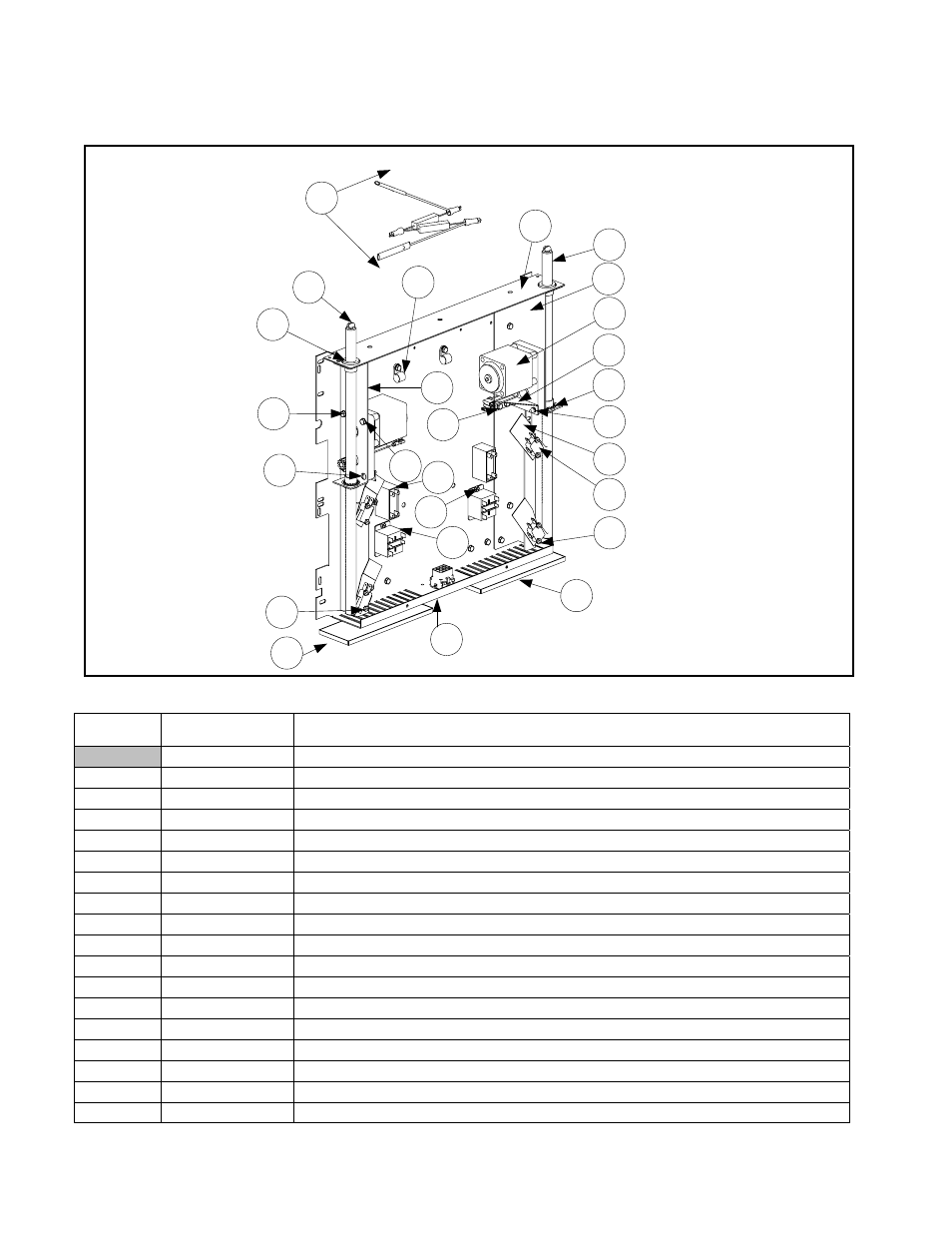

2.2 Basket Lift Assembly (Modular) and Related Components
1
2
3
10
4
20
17
9
12
6
5
21
23
11
16
14
15
7
19
13
24
8
22
18
25
26
Item Part
Number
Description
106-3775
Basket Lift, Modular Assembly 100-120V with Relay
1 807-0158
Connector,
6-Pin
2
200-6455
Mount, Modular Basket Lift
3
806-5964SP
Motor Assembly, Modular 120V Basket Lift
4
806-8530SP
Resistor Assembly, 120V
*
106-2770SP
Resistor Assembly, 200/208/220V
*
106-2771
Resistor Assembly, 230/240/250V
*
807-2661
Resistor, 13 Ohm -120V, 10W (Part of 806-8530 Assembly)
*
807-3893
Resistor, 50 Ohm, 50W (Part of 106-2770: 200-208V Assembly)
*
807-3893
Resistor, 50 Ohm, 50W (Part of 106-2771: 230-250V Assembly)
5
807-1683
Relay, 12 VDC
6
807-2513
Capacitor, Motor Run 12.5 MFD 250 VAC
7
807-2572
Microswitch, Formed End
8
809-0082
Ring, ¾” Truarc ZP
9
826-1361
Screw, 8-32 x 1” Tr Sl HD ZP (Pkg. of 25)
10
809-0127
Screw, ¼” – 20 x ½” Rd Sl HD NP
11
809-0186
Washer, #8 Lock External Tooth
12
826-1366
Nut, 4-40 KEPS Hex w/Ext Tooth (Pkg. of 25)
* Not illustrated
