1
OPERATIONAL OVERVIEW
1.1 Control Description
All operations of the FCV-582L are carried out with the controls on the front panel of the
display unit. All controls respond immediately to your command and the unit emits a beep to
signify correct key sequence. (Invalid key input emits several beeps.)
SHIFT
ZOOM SIG LEV
BRILL ALARM
1
2
3
4 5
6
7
8
RANGE
MODE
MENU
ZOOM
HF
DUAL
LF
ZOOM
NAV
POWER
A-SCOPE
MARKER
ADVANCE
GAIN
2 8
10 0
4 6
Selects zoom mode. (p. 3)
Adjusts display brilliance
and tone. (p. 3)
•
Rotate to adjust gain. (p. 7)
•
Push to turn automatic
operation on/off. (p. 7)
Removes weak echoes.
(p. 9)
Selects picture advance
speed. (p. 8)
Sets alarms. (p. 12)
Turns A-scope
display on/off. (p. 10)
Selects range. (p. 7)
Selects display mode.
(p. 3)
Turns power on/off.
(p. 3)
PUSH
AUTO
•
Shift display range.
(p. 7)
•
Select menu options.
(p. 10)
•
Shift VRM. (p. 9)
•
Select menu items. (p. 10)
Removing cover
While pressing the center
of the cover with your
thumbs as illustrated, pull
the cover towards you to
remove it.

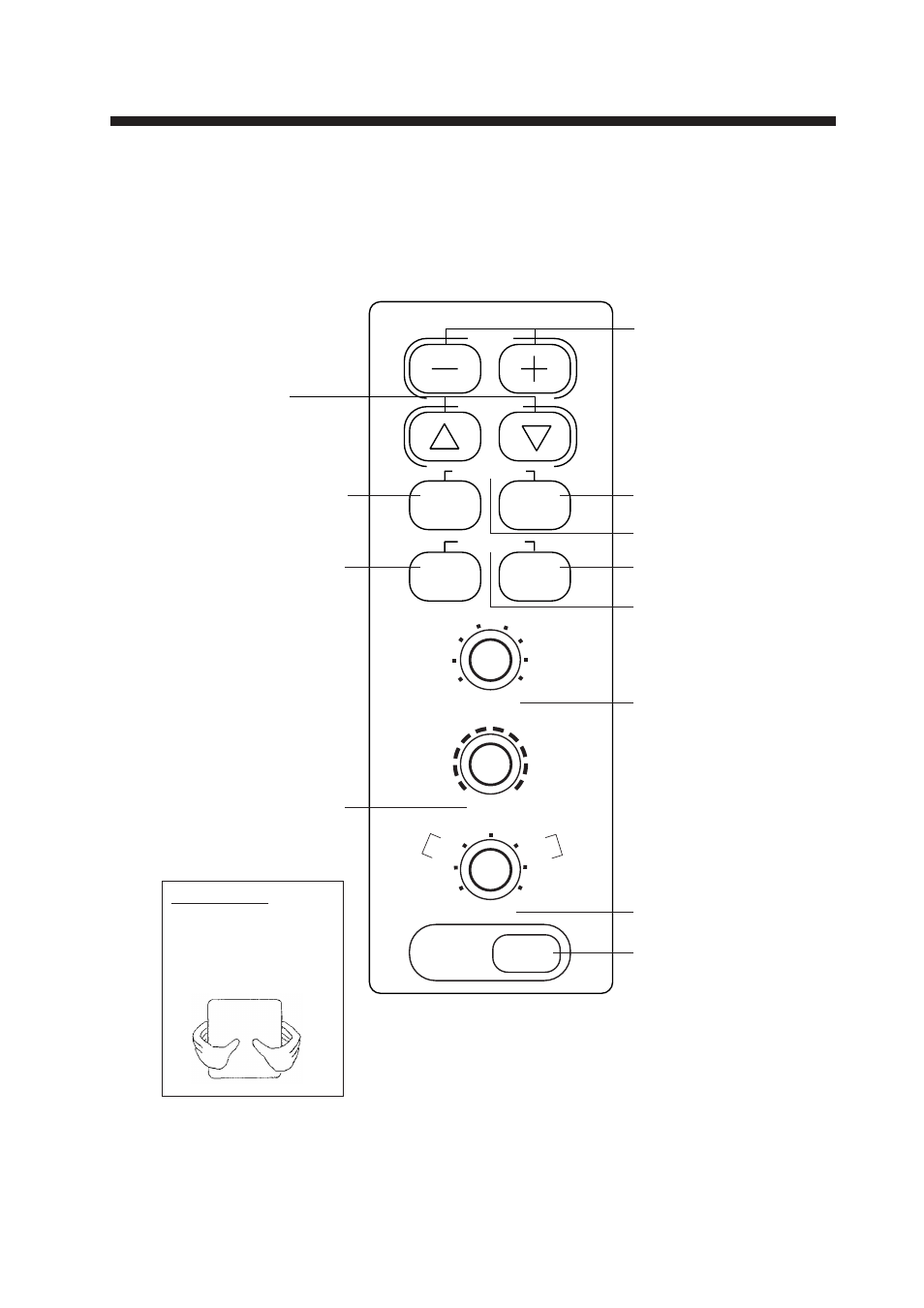

Figure 1-1 Controls
