Fender FM 100H User Manual
Page 6
INPUTS
1
2
VOLUME
TREBLE
BASS
MID
VOLUME
TREBLE
BASS
MID
DRIVE
REVERB
FOOT
SWITCH
PRE
OUT
PWR
IN
F E N D E R M U S I C A L I N S T R U M E N T S
CH SELECT
MID
CONTOUR
MORE DRIVE
Your new FM 100H amplifier delivers world–class Fender
®
tone and world–standard Fender
®
quality:
• 100W output power into 4 ohms
• Selectable Normal and Drive channels
with
independent volume and tone controls
• MORE DRIVE pre-amp boost for instant gain saturation
and harmonically rich leads
• MID-CONTOUR button allows for many different
variations in distortion—from Rock to Blues to Metal to
whatever!
• Classic Fender
®
spring Reverb
• Fender
®
“touch-sensitive” circuit design simulates the
feel of tube distortion
• PRE-AMP OUT and POWER-AMP IN jacks allow you to
connect external effects devices, other amplifiers or
sound/recording equipment to your FM 100H
• FOOTSWITCH jack for use with a 2-button Fender
®
footswitch (included). A footswitch provides remote
channel selection and drive/more drive switching
Thank you for choosing Fender
Thank you for choosing Fender
®
®
—The W
—The W
orld’
orld’
s most
s most
popular instr
popular instr
ument amplifiers—since 1946
ument amplifiers—since 1946

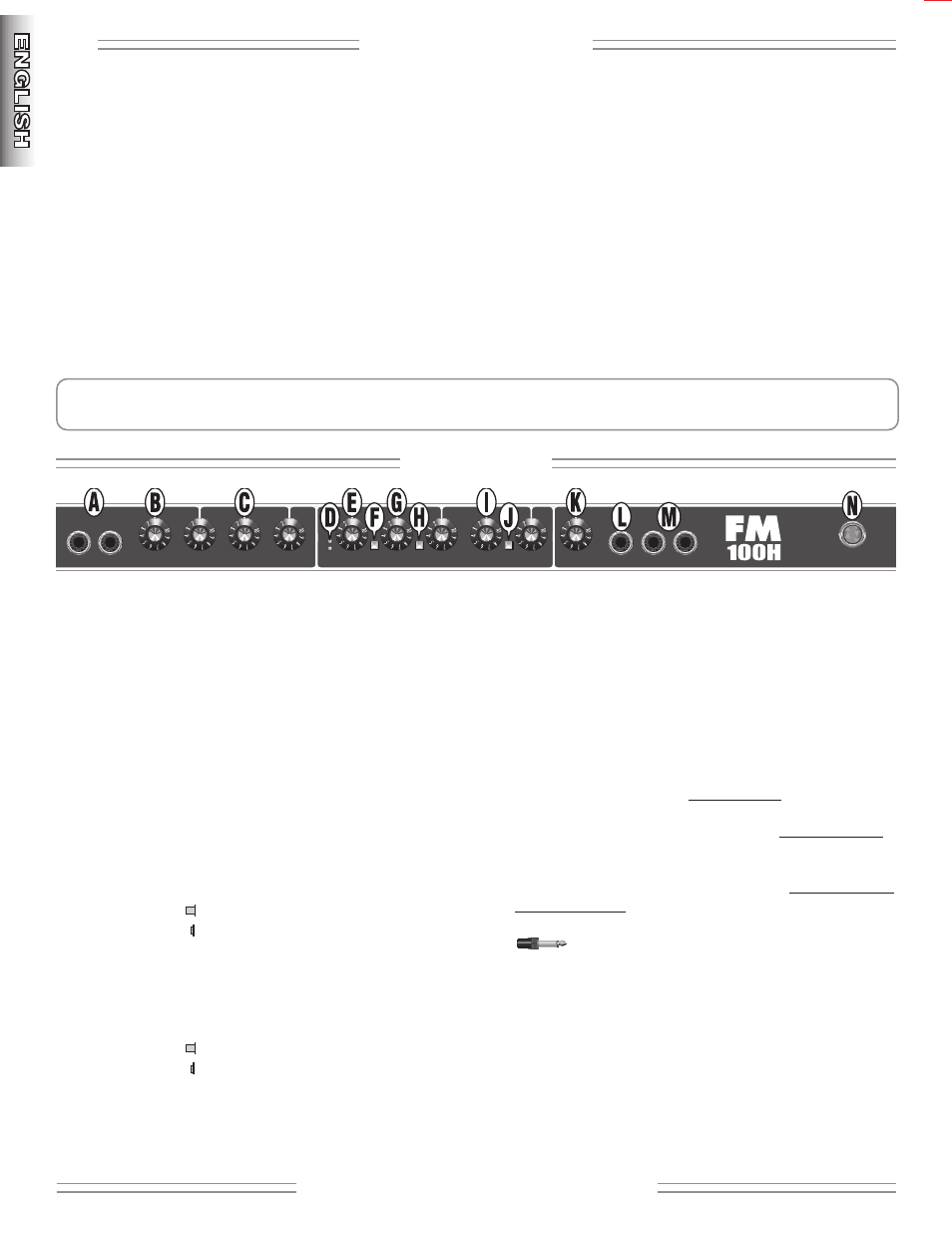

A. INPUTS - Plug your guitar in here: INPUT 1 is normal
sensitivity for most guitars, INPUT 2 is lower sensitivity
for guitars with high output (active) pickups.
B. VOLUME - Adjusts the loudness of the Normal
channel.
C. TREBLE/MID/BASS - Adjusts the tone of the Normal
channel in the high/middle/low frequency ranges.
D. DRIVE CHANNEL INDICATORS -
Yellow LED ON
Drive channel is active
Red LED ON
More Drive channel is active
E. DRIVE
- Adjusts the distortion level of the Drive
channel.
F. CHANNEL SELECT -
Button OUT
selects the Normal channel
Button IN
selects the Drive channel
G. VOLUME - Adjusts the loudness of the Drive channel
together with DRIVE {E}.
H. MORE DRIVE - Boosts the intensity and range of the
DRIVE control {E}.
Button OUT
selects the Drive channel
Button IN
selects the More Drive channel
I. TREBLE/MID/BASS - Adjusts the tone of the Drive
channel in the high/middle/low frequency ranges.
J. MID-CONTOUR - Activates a “scooped” midrange
EQ, useful for modern distortion sounds in the Drive
channel.
K. REVERB - Adjusts the Reverb level for both channels.
L. FOOTSWITCH - Plug in the included 2-button Fender
®
footswitch to enable remote switching of CH SELECT,
and DRIVE/MORE DRIVE. When connected, the
footswitch overrides the front panel buttons.
M. PRE OUT/PWR IN - (1) Effects Loop - Connect PRE
OUT to an effects device input, then connect the
effects device output to PWR IN. (2) Multiple Amps -
Connect the primary amplifier’s PRE OUT to the
auxiliary amplifier’s PWR IN. The primary amp is used
to control all auxiliary amps. (3) Recording or
Reinforcement - Connect PRE OUT to sound
equipment’s input.
Both jacks use a TS (Tip-Sleeve) standard type
plug for connections. PRE OUT includes onboard tone
shaping.
N. POWER INDICATOR - Illuminates when the amplifier
is on.
F
F
F
F
M
M
M
M
1
1
1
1
0
0
0
0
0
0
0
0
H
H
H
H
A
A
A
A
m
m
m
m
p
p
p
p
ll
ll
ii
ii
ff
ff
ii
ii
e
e
e
e
rr
rr
F
F
F
F
rr
rr
o
o
o
o
n
n
n
n
tt
tt
P
P
P
P
a
a
a
a
n
n
n
n
e
e
e
e
ll
ll
6
✧
f
f e
e n
n d
d e
e r
r .
. c
c o
o m
m
✧
NOTE: The footswitch and power cord are stored behind the front grille of the FM100H cabinet. Access by pulling on
both tabs at the bottom edge of the grille.
