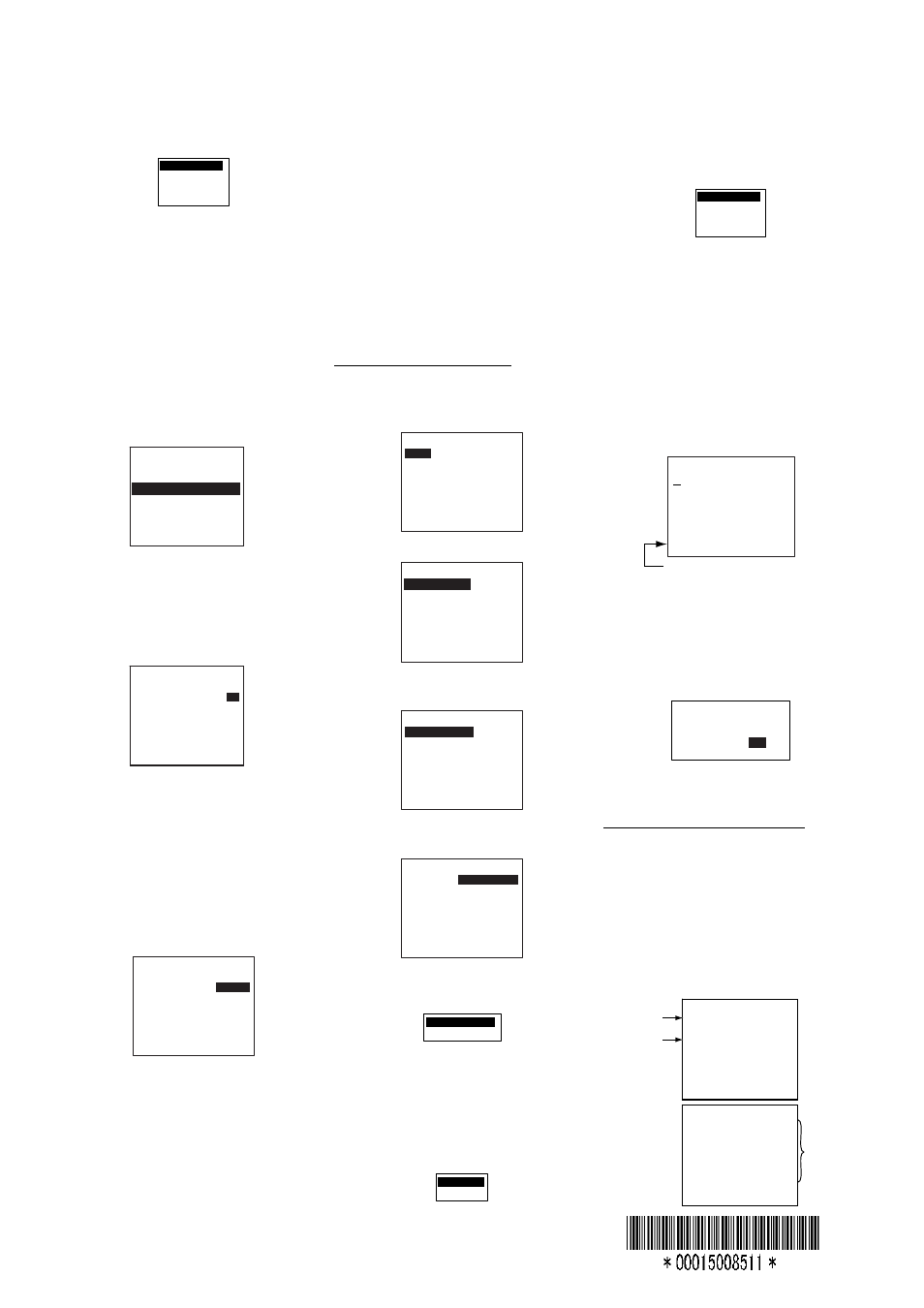

background image

4

7. Enter the MMSI of the

lock/bridge/terminal you want to pass
through then press the ENT key.

8. CHANNEL is selected; press the ENT

key.

ALTERNATE

BOTH A & B
A
B

9. Select the channel over which to send

the message then press the ENT key.

10. RETRY TIMES is selected; press the

ENT key.

11. Enter the number of times to re-send

the message (if the first transmission is
unsuccessful) then press the ENT key.
An ETA message can be resent a
maximum of three times.

12. Press the MENU key to return to the

CREATE MSG menu.

13. Select SET DESTINATION then press

the ENT key.

[SET DESTINATION]

* * * * * * * * * * * * * (0/0)

[NEW?]

(If you have entered some
destinations, they appear here.)

14. NEW is selected. If your destination is

shown on screen, select it, press the
ENT key then go to step 18. To enter a
new destination, go to step 15.

15. With NEW selected, press the ENT

key.

[SET DESTINATION]

ENTER A NEW DEST
COUNTRY CODE:
LOCATION CODE:
FAIRWAY NO. :

00000

TERMINAL CODE:
FAIRWAY HECT:

00000

QUIT: [MENU]

16. COUNTRY CODE is selected; press

the ENT key. Enter the UN country
code of your destination, referring to
ISO 3166, then press the ENT key.

17. Enter location code, fairway no.,

terminal code, and fairway hectometre.

18. Press the MENU key twice to return to

the CREATE MSG menu.

19. Select SET ETA then press the ENT

key.

[SET ETA]
ETA
DATE[UTC]

- - / - - -

TIME[UTC] - - : - -
AIR DRAUGHT: 0.00 m
NO. OF TUGBOATS: -

20. DATE[UTC] is selected; press the ENT

key.

21. Enter the day (1-2 digits) and month

(three-character abbreviation) of ETA
then press the ENT key.

22. TIME[UTC] is selected; press the ENT

key.

23. Enter your ETA, in 24-hour notation,

then press the ENT key.

24. AIR DRAUGHT is selected; press the

ENT key.

25. Enter your ship's air draught then press

the ENT key.

26. NO. OF TUGBOATS is selected; press

the ENT key.

27. Enter the no. of assisting tugboats

(0-6) your ship requires then press the
ENT key. Enter "0" for none.

28. Press the MENU key to return to the

CREATE MSG menu.

29. Select SEND MSG then press the ENT

key. You are asked if you are sure to
send the message. Select YES then
press the ENT key to send the
message.

How to send a text message

1. Press

the

MENU key to open the

menu.

2. Select MSG then press the ENT key.

[MSG]

TEXT

ETA/RTA
NO. OF PERSONS
EMMA WARNING
WATER LEVEL

3. TEXT is selected; press the ENT key.

[TEXT]

CREATE MSG

TX LOG
RX LOG

4. CREATE MSG is selected; press the

ENT key.

[CREATE MSG]

SET MSG TYPE

E

SET MSG
SEND MSG

5. SET MSG TYPE is selected; press the

ENT key.

[SET MSG TYPE]
ADRS TYPE:

BROAD CAST

MMSI

: - - - - - - - - -

MSG TYPE: SAFETY
CHANNEL: ALTERNATE
RETRY TIMES: -

MMS

6. ADRS TYPE line is selected; press the

ENT key.

BROAD CAST

ADRS CAST

7. Select ADRS CAST or BROAD CAST

as appropriate.

8. Press

the

ENT key. For ADRS CAST,

select MMSI then enter MMSI no.

9. Select MSG TYPE then press the ENT

key.

SAFETY

NORMAL

10. Select message type: NORMAL

(message other than safety) or
SAFETY (important navigational or
meteorological warning). Press the
ENT key.

11. CHANNEL is selected; press the ENT

key.

ALTERNATE

BOTH A & B
A
B

12. Select which channel to transmit your

message over then press the ENT key.

13. RETRY TIMES is selected; press the

ENT key. If the ADRS TYPE is BROAD
CAST go to step 14. For ADRS CAST,
enter the number of times to
re-transmit a message (0-3) then press
the ENT key.

14. Press the MENU key to return to the

CREATE MSG sub-menu.

15. Select SET MSG then press the ENT

key.

[SET MSG]

1( 90)* [DIM]HOLD:CLEAR

Number of characters used/available

16. Use the CursorPad to enter your

message.

17. Press the MENU key to return to the

CREATE MSG sub-menu.

18. Select SEND MSG then press the ENT

key. The prompt shown below appears.

SEND MESSAGE.

ARE YOU SURE?
YES

NO

19. Press ◄ to select YES then press the

ENT key to send your message.

How to display an RTA message

1. Press

the

MENU key to open the

menu.

2. Select MSG then press the ENT key.
3. Select ETA/RTA then press the ENT

key.

4. Select RTA LOG then press the ENT

key to show the RTA log.

5. Select message then press the ENT

key.

[RTA LOG] 1/2
STATUS
LIMITED OPERATION
RTA: 05/JUN 12:32 UTC

[RTA LOG] 2/2
COUNTRY CODE: DE
LOCATION CODE: TRI
FAIRWAY NO.: 01234
TERMINAL CODE: 11111
FAIRWAY HECTOMETRE
01000

Your RTA

Lock Status

Lock
particulars

P U B . N O . O S E - 4 4 3 1 0 - B

( 0 9 0 9 , D A M I ) F A - 1 5 0
