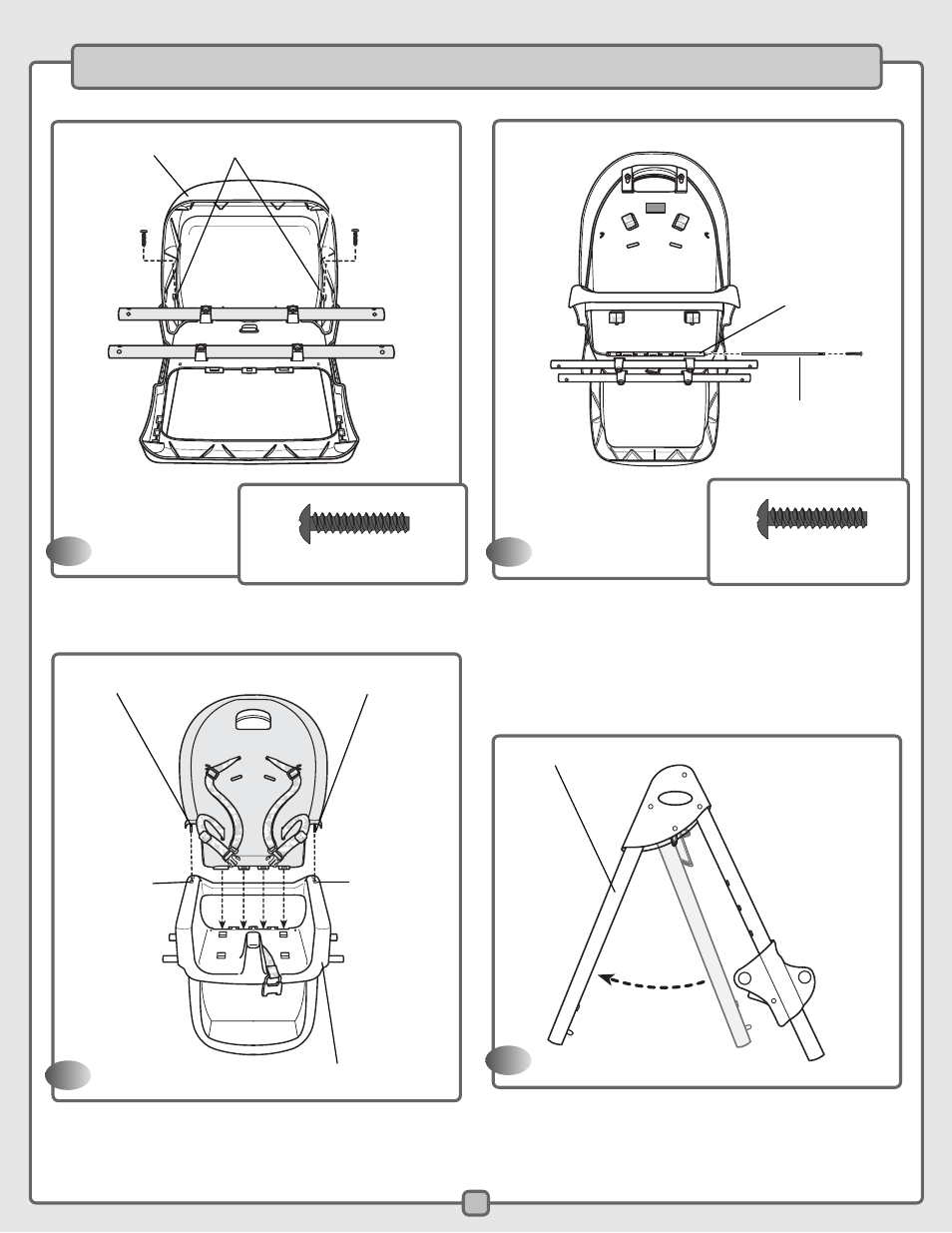

Assembly
4
Insert Screws Here
Footrest
• Insert two #10 x 2.2 cm black screws through the footrest and
into the seat bottom. Tighten the screws.
#10 x 2.2 cm Black Screw - 2
5
• Turn the seat bottom assembly upright.
• Fit the seat back pins into the openings in the top side of the
seat bottom assembly.
Seat Back Pin
Opening
Seat Bottom Assembly
Opening
Seat Back Pin
6
Hinge Rod
Hinge
• Turn the seat assembly face down.
• Insert the hinge rod through the hinge on the seat back and
seat bottom, as shown.
• Insert a #10 x 2.2 cm black screw into the hinge rod. Tighten
the screw.
• Set the seat assembly aside for Assembly step 9.
#10 x 2.2 cm Black Screw
7
• Pull the frame leg out on each frame to open. Make sure it
"clicks" into place.
Frame Leg
