4
2

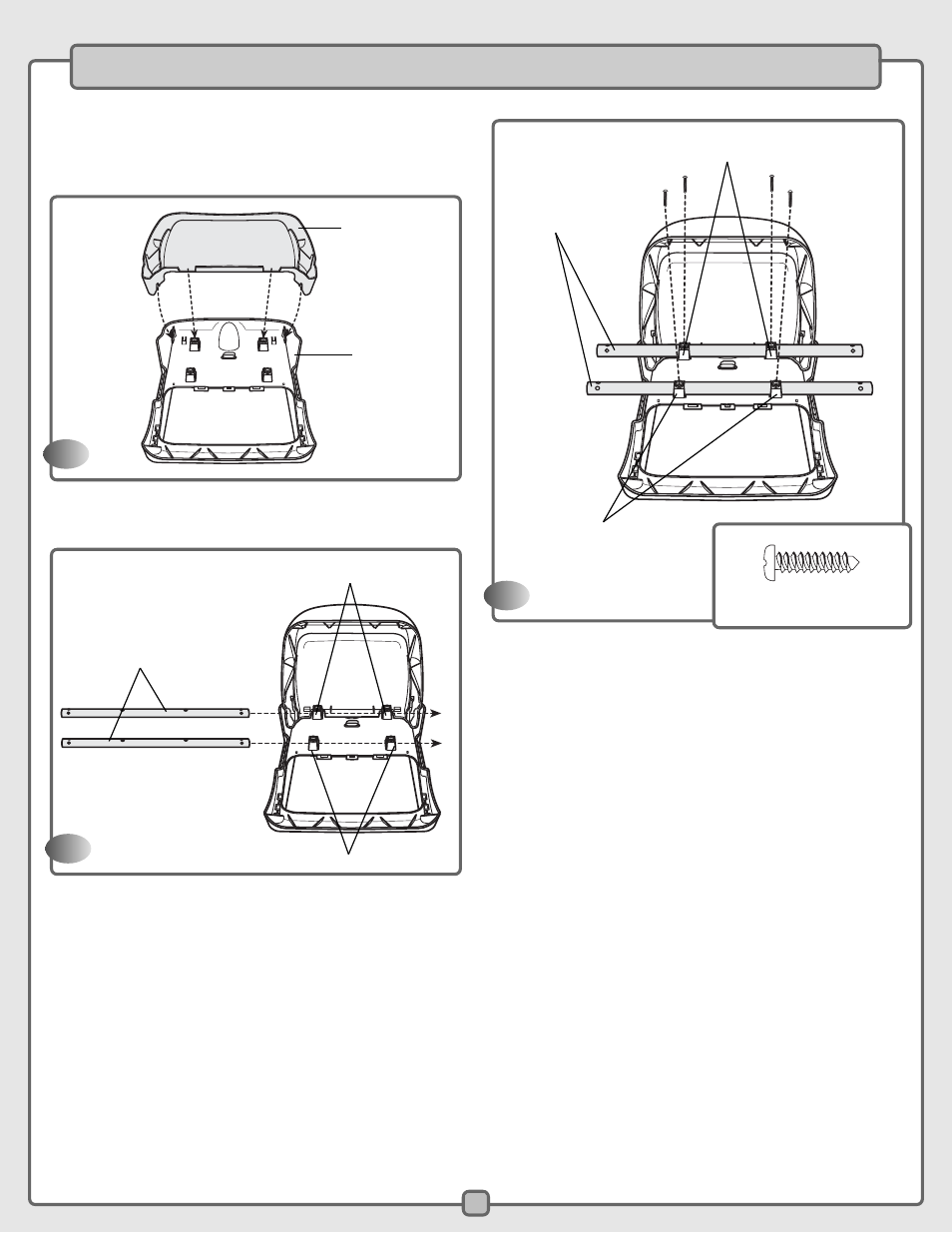

• Slide a seat bottom tube through each set of plastic rings on
the seat bottom.
1
• Place the seat bottom face down on a flat surface.
• At an angle, fit the footrest on the seat bottom, as shown.
Assembly
Plastic Rings
Footrest
Seat Bottom
IMPORTANT! Before each use, inspect this product for damaged
hardware, loose joints, missing parts or sharp edges. DO NOT use
if any parts are missing or broken. Contact Mattel for replace-
ment parts and instructions if needed. Never substitute parts.
Seat Bottom Tubes
Plastic Rings
3
Seat Bottom Tubes
Plastic Rings
Plastic Rings
#8 x 1.9 cm Screw - 4
• Align the holes in the plastic rings and the seat bottom tubes.
• Insert a #8 x 1.9 cm screw through each plastic ring and into
the seat bottom tubes, as shown. Tighten the screws.
• Push the seat bottom tubes back and forth to be sure they are
secured to the seat bottom. If the seat bottom tubes move, you
have probably not fastened them properly. Remove the screws
and check to be sure the screw holes in the seat bottom tubes
and seat bottom plastic rings are aligned. Replace and tighten
the screws.
