3 HARDWARE CONNECTIONS
The FST OPC Server communicates with the FieldServers via standard Ethernet & TCP/IP connections. Please refer
to the FieldServer Configuration Manual for instructions on setting up the FieldServer side.
Before proceeding to configure the OPC Server it is important to have a proper TCP/IP network setup - verify this
by PINGing a FieldServer. Refer to the Microsoft documentation for the setup of the TCP/IP networking on the PC.

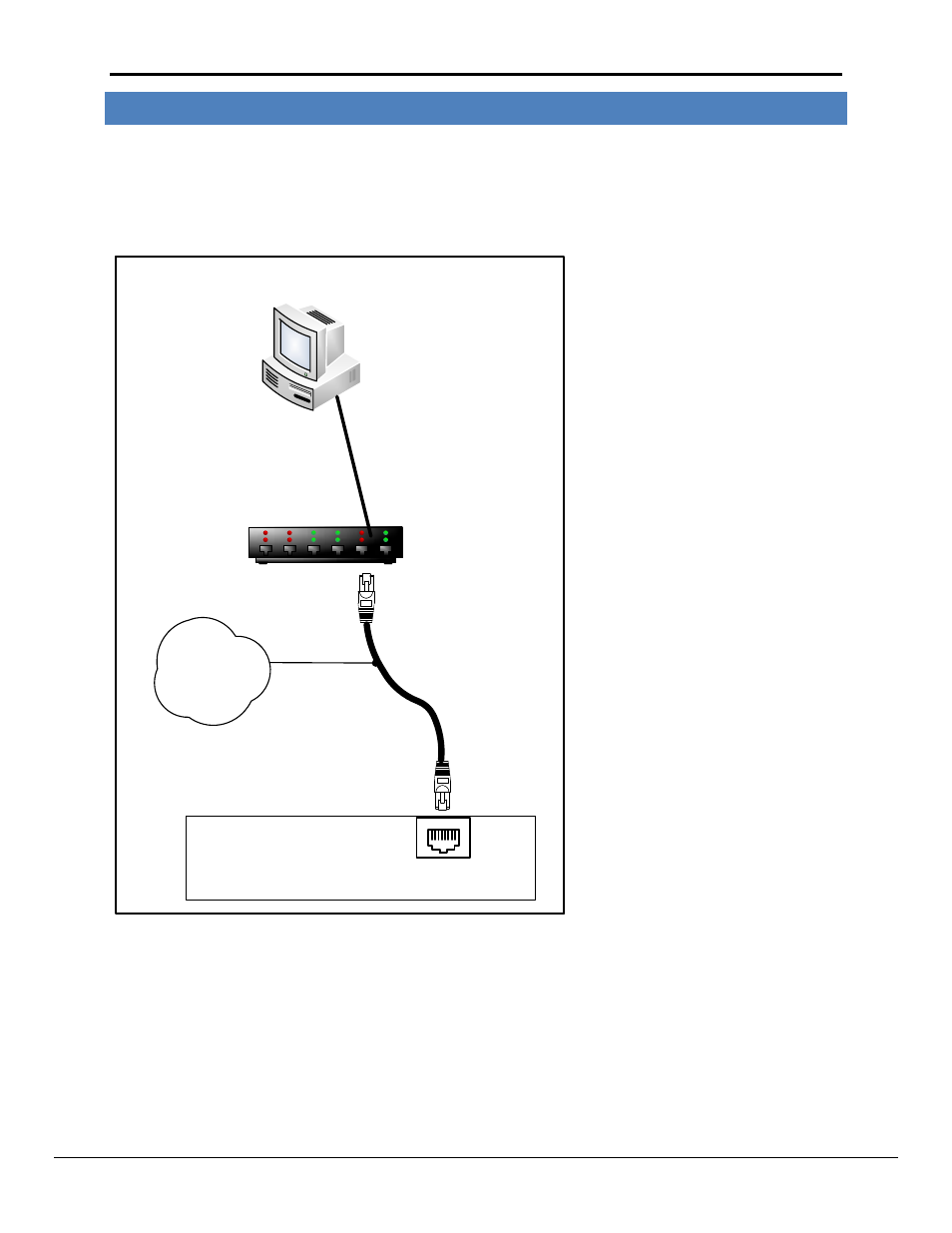

FieldServer Part #
8915-10
UTP cable
Hub/Router
PC loaded with FST OPC
Server
FieldServer
N1
1 8
Connect to an Ethernet
Port on the FieldServer
