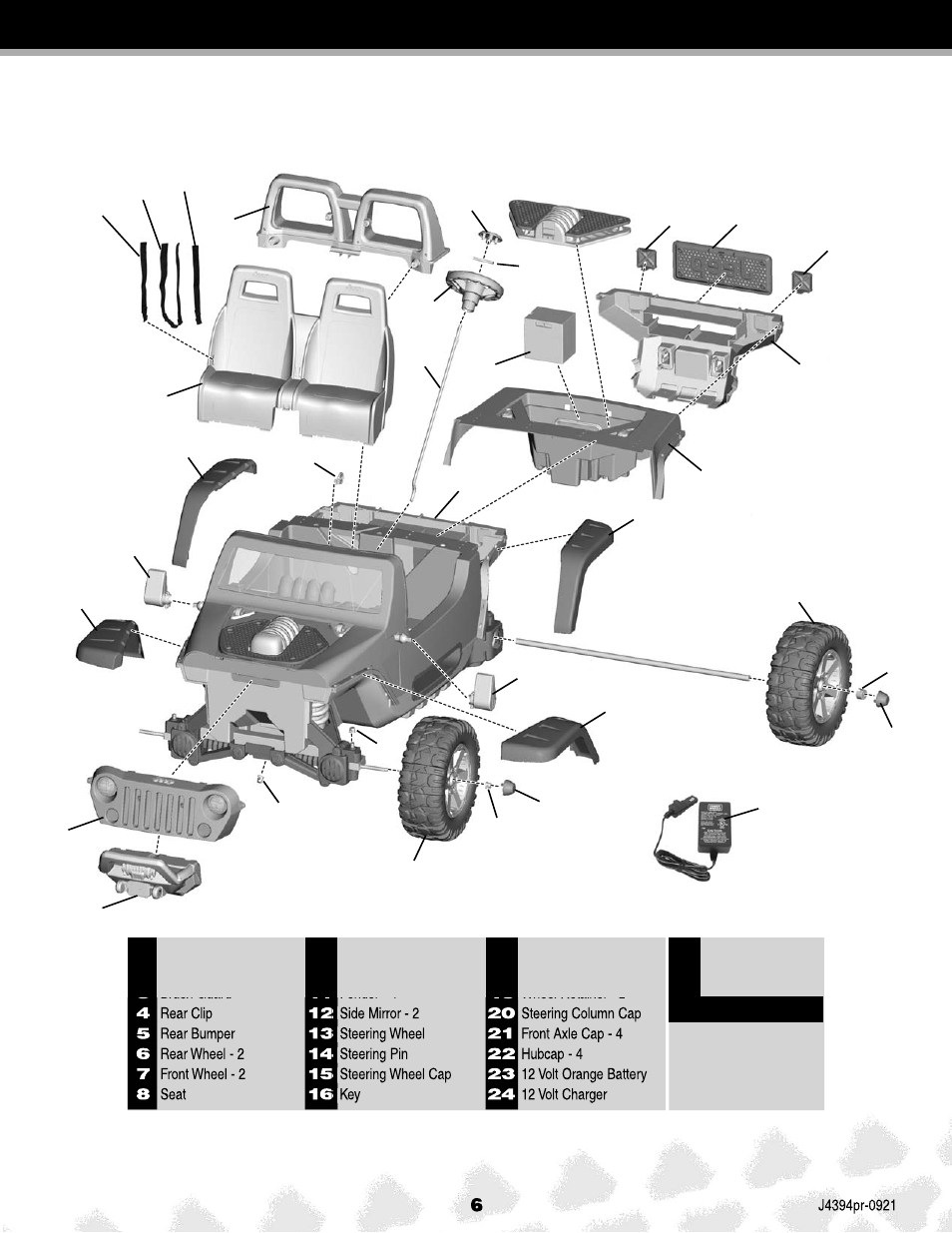

PARTS PICTURE
2
1 Vehicle
2 Front Grille
3 Brush Guard
4 Rear Clip
5 Rear Bumper
6 Rear Wheel - 2
7 Front Wheel - 2
8 Seat
9 Seat Bar
10 Rear Grille
11 Fender - 4
12 Side Mirror - 2
13 Steering Wheel
14 Steering Pin
15 Steering Wheel Cap
16 Key
1
10
24
4
6
7
17 Steering Column
18 Taillights - 2
19 Wheel Retainer - 2
20 Steering Column Cap
21 Front Axle Cap - 4
22 Hubcap - 4
23 12 Volt Orange Battery
24 12 Volt Charger
3
5
8
9
11
11
11
11
12
12
13
14
15
16
17
18
18
19
20
21
21
22
22
23
25
26
25 Short Seat Belt - 2
26 Long Seat Belt
Parts Not Shown
2 Label Sheets
#8 x
3 /
4
" Screw - 53
Note: Some parts shown are assembled to both sides of the vehicle.
