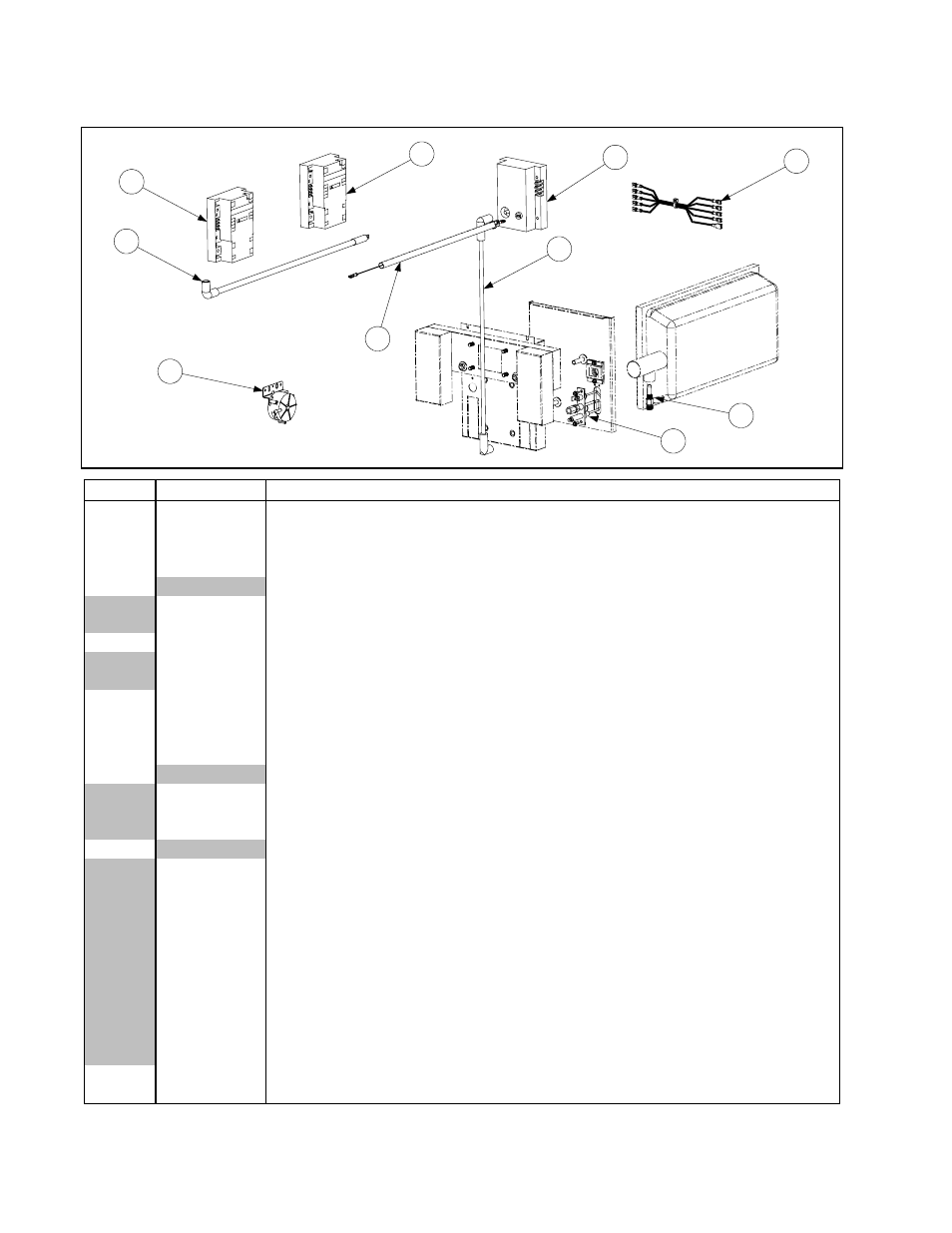

4.3.2 Ignition Sub-System Components
1
2
3
4
6
5
7
9
10
8
ITEM PART # COMPONENT
1 See Pg. 4-27 Ignition Module, Full and Dual Vat (original design, with fuse)
2 See Pg. 4-27 Ignition Module, Full Vat (new design, without fuse)
* 826-1346 Spacer (Pkg. of 10)
3 See Pg. 4-27 Ignition Module, Dual Vat (new design, without fuse)
4 Ignition Cable (with two 90º connectors, used with Item 1 only)
807-1878 19-inches long
807-1200 27-inches long
5 826-1721 Ignition Cable w/ Rajah (with 90º connector, use w/ Items 2 and 3)
807-3483 Cable, H52 Ignition 21”
807-3484 Connector, Rajah
6 806-6085SP Wiring Assembly, Ignitor
7 806-6084SP Wiring Assembly, Ignition Module
8 807-2263 Switch, Air Pressure (use 807-2262 in units with 100VAC power supply)
* KIT1428 CE Export H52 Air Switch Kit
9 Ignitor and Gasket Kit (816-0059 Gasket Only)
826-0981 Natural Gas (G20, G25)
826-0982 Propane/Butane (G30, G31)
826-1002 Manufactured Gas
10 Orifice
810-1221 2.00 mm Propane/Butane (0-4999 Ft, 0-1524 M) (Japan)
810-1325 2.05 mm Propane/Butane (G30, G31) (0-4999 Ft, 0-1524 M)
810-0386 2.10 mm Propane/Butane (0-4999 Ft, 0-1524 M) Standard LP
810-0413 2.16 mm Propane/Butane (G30, G31) (5000-6999 Ft, 1525-2133 M)
812-1028 2.20 mm Propane/Butane (G30, G31) (7000-10,999 Ft, 2134-3352 M)
812-1134 3.10 mm Natural Gas (G20, G25) (0-4999 Ft, 0-1524 M) (Japan)
810-0403 3.40 mm Natural Gas (G20, G25) (0-4999 Ft, 0-1524 M)Standard Natural Gas
810-0437 3.60 mm Natural Gas (G20, G25) (5000-6999 Ft, 1525-2133 M)
812-1144 3.65 mm Natural Gas (G20, G25) (7000-8999 Ft, 2134-2743 M)
812-1145 3.70 mm Natural Gas (G20, G25) (9000-10,999 Ft, 2744-3352 M)
810-0642 5.95 mm Manufactured Gas (0-4999 Ft, 0-1524 M)
* 826-1196 Conversion Kit, Natural Gas (G20, G25) to Propane/Butane (G30, G31) CE
* 826-1197 Conversion Kit, Propane/Butane (G30, G31) to Natural Gas (G20, G25) CE
