Fisher-Price DORA JEEP WRANGLER M3576 - Manual (Page 6)

A
6 M3576pr-0726

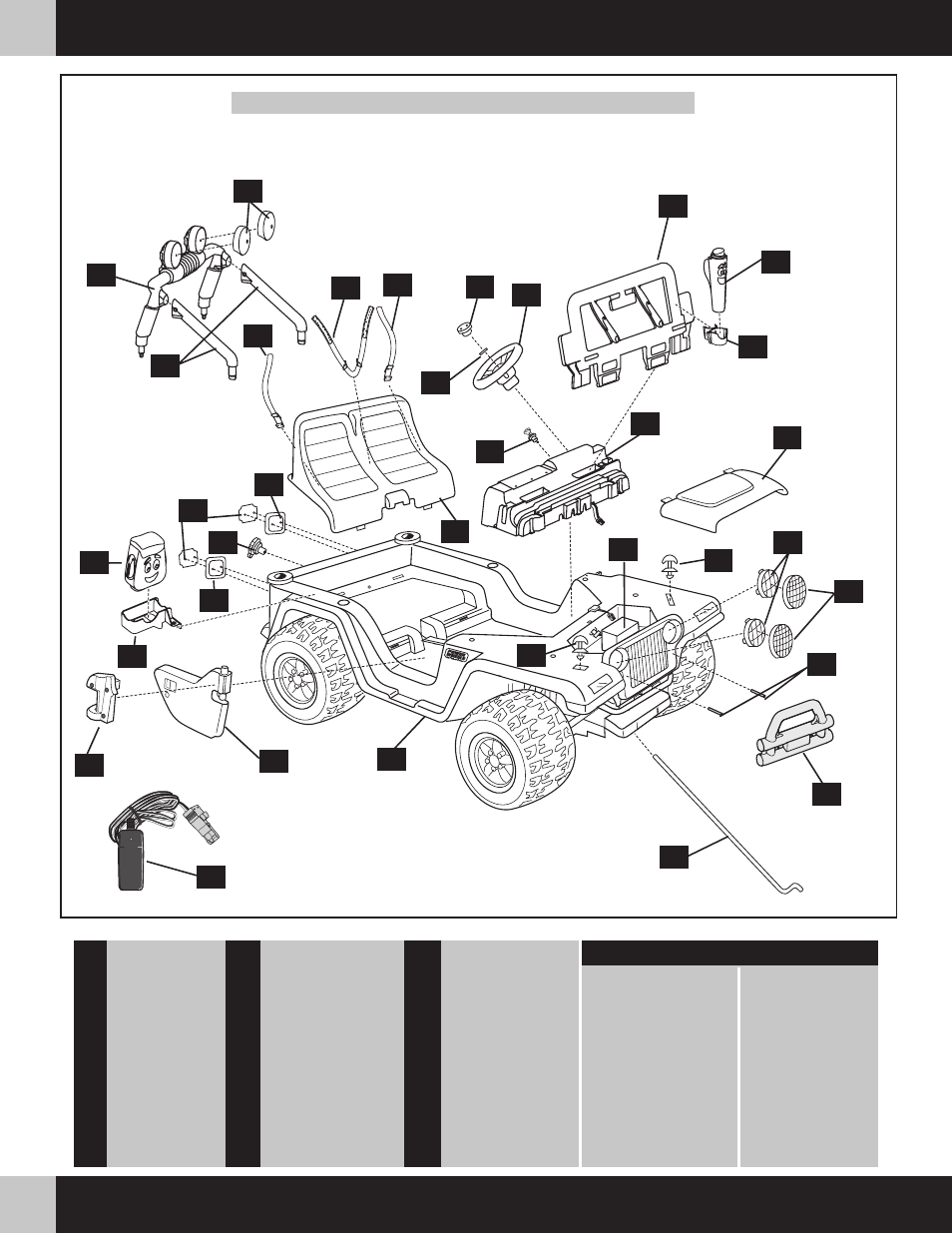

PARTS PICTURE D
5
21
23
19
22
18
8
7
8
14
6
11
17
14
9
1
15
24
2
20
12
13
3
4
3
Note: Some parts shown are assembled on both sides of the vehicle.
16
10
1 Vehicle
2 Steering Column
3 Hood Latch
4 12 Volt Battery
5 12 Volt Charger
6 Key Assembly
7 Taillight Lens
8 Taillight Housing
9 Hood
10 Cap
11 Dash
12 Headlight Lens - 2
13 Lens Guard - 2
14 Short Seat Belt Strap
15 Windshield
16 Brush Guard
17 Steering Wheel
18 Seat
19 Long Seat Belt Strap
20 Spacer - 2
21 Sport Bar
22 Sport Bar Support - 2
#8 x 2,5 cm Screw - 6
#10 x 1,9 cm Screw - 23
#8 x 10,2 cm Screw - 2
#8-32 x 4,1 cm Screw - 2
#8 x 1,6 cm Screw - 1
23 Light Cover - 2
24 Door - 2
25 Door Hinge - 2
26 Steering Wheel Cap
27 0,4 cm x 3,8 cm Pin
28 Backpack
29 Backpack Holder
30 Map
31 Map Clip
#8 Acorn Lock Nut - 2
#8 Lock Nut - 1
1 cm Washer - 1
Label Sheet
Parts Not Shown
26
27
25
29
28
30
31
