Furuno 1734C User Manual
Page 27
17
Signal cable connection
1. Remove the waterproofing cover from the DJ-1 at the back of the display unit.
2. Connect the signal cable to DJ-1 on the rear panel of the display unit.

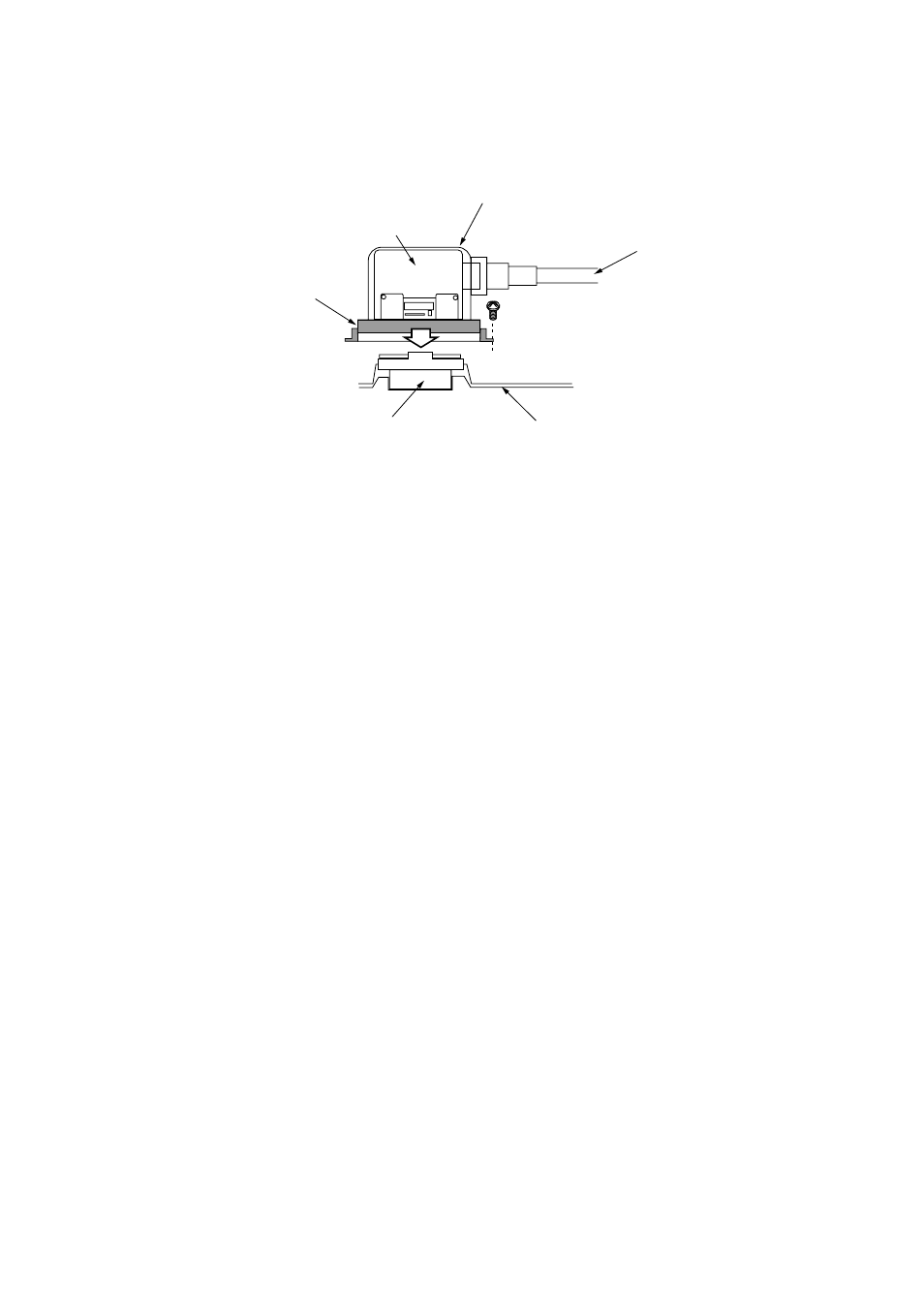

Rubber cover
DJ Connector
Boot-band
Cable
Display unit
DJ-1
3. Cover the connector with the rubber cover.
4. Put the boot-band as shown above, and fasten four screws to fix.
Note: When the display unit is used without signal cable connection, do not remove the
waterproofing cover. Wrap the display unit and waterproofing cover with vinyl tape.
Power cable
Connect the power cable to the power connector.
Ground terminal
Connect the ground wire (local supply, IV-2sq) between the ground terminal and ship’s
ground.
