5. Unfasten the cable of the rotation detector from the cable clamps.
6. Unfasten 11 screws to dismount the shield plate. Discard screw marked with
in the
figure shown below.
Caution
Cable clamp
Rotation detector

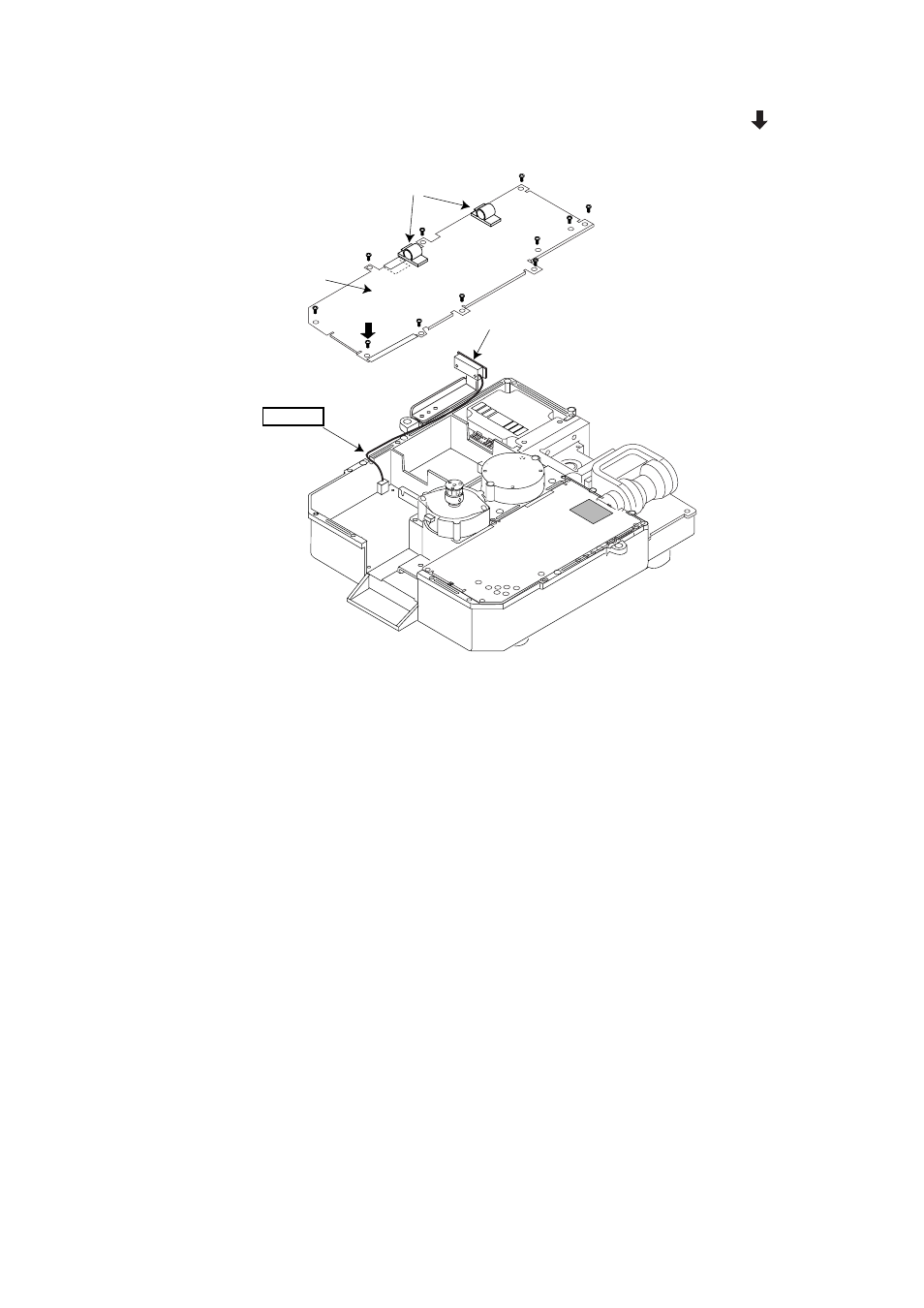

Shield plate
Antenna unit, inside view
Caution: Be careful not to pinch the rotation detector cable when remounting the shield
plate.
7. Pass the antenna cable with connector through the gasket and cable clamp, and then
tighten cable gland.
Be sure the shrink tubing on the antenna cable is not covered by the gasket.
