Vehicle Frame
Seat

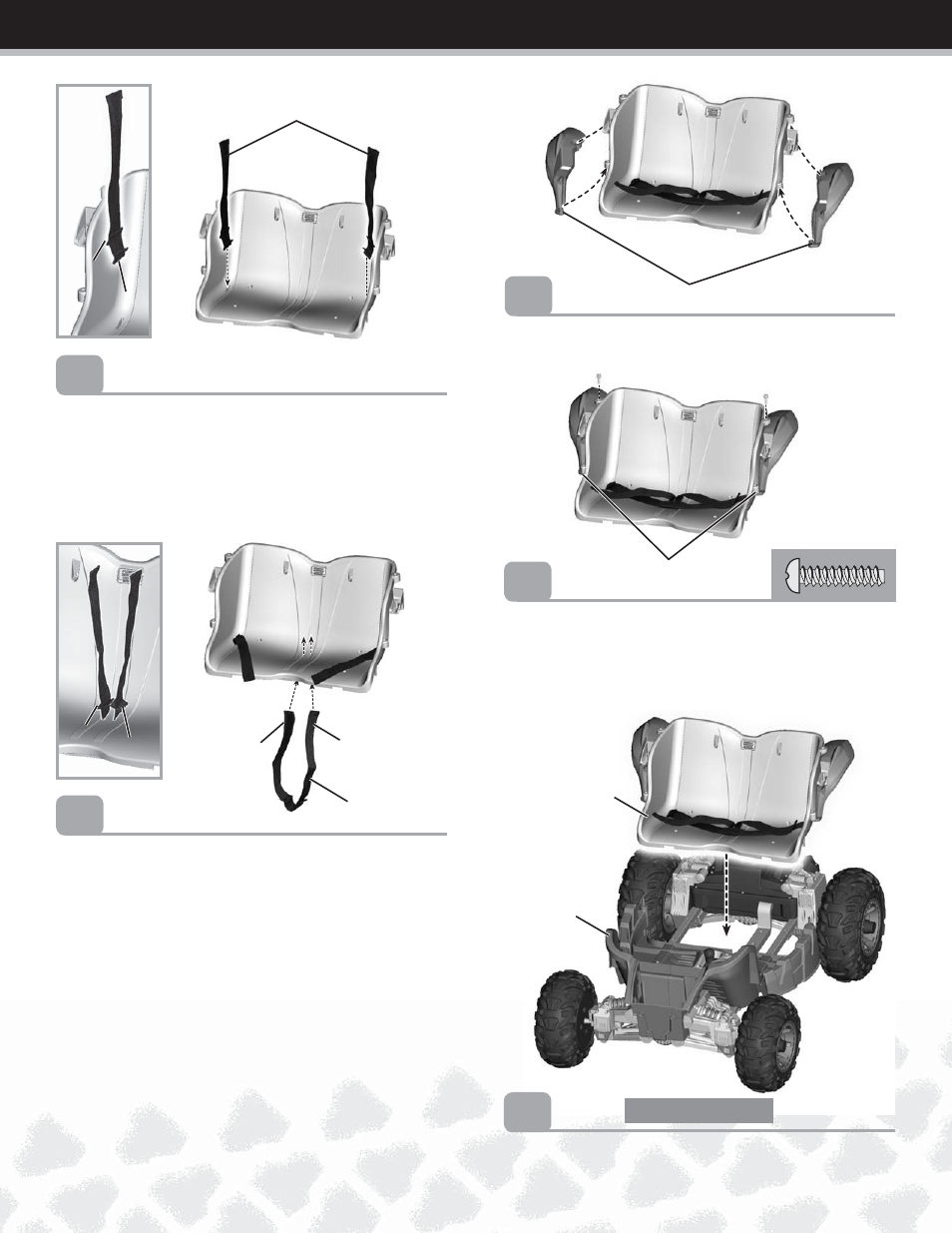

• Fit the seat onto the vehicle frame.
23 FRONT VIEW
Rear Fenders
DO NOT insert screws here.
• Fit the rear fenders under the tabs the sides of the seat,
as shown.
21
• Insert two #8 x ¾" screws into the upper hole in each side of
the seat and tighten.
Note: Do not insert screws into the lower holes on the seat in this
step. These screws will be assembled in this location in step 24.
22
Long Seat Belt
Fastener
Side
Fastener
Side
Note: Make sure the fasteners on the long seat belt are facing
the fasteners on the short seat belts.
• Insert the ends of the long seat belt up through the slots in the
center of the seat.
• Fit the folded tabs on the belt up through the slots in the center
of the seat to keep the long seat belt in place. Make sure the
folded tabs are on visible on the top side of the seat.
20
Short Seat Belts
Note: Make sure the fasteners on both short seat belts face
each other.
• Fit the folded end of each short seat belt down through the
outer slots in the seat. Do not insert the folded tab into the
slot. Pull up on each seat belt to make sure it is secure.
19
Folded Folded
End End
Folded Folded
Tab Tab
Folded Folded
Tab Tab
Folded Folded
Tab Tab
