7.3 Fixed brackets
Make it possible to fasten the cooker hob in pre-set fastening points.
Standard edge (8 mm)
A
B
Introduce the bracket B in appropriate top seat.
Manually lock the bracket using screw A.
8. Connecting the cooker hob to the gas network
It is necessary for the gas supply system to conform to local regulations in force.
It is necessary to verify that local distribution conditions (gas nature and pressure)
and the appliance adjustment status are compatible.
IMPORTANT: If the appliance is installed above an oven, it is necessary to avoid
passing the gas tube behind the oven in order to avoid overheating.
The connection to the gas sup-
ply network can be completed us-
ing rigid copper piping or with a
continuous flexible steel pipe
on the wall, according to established
regulations that are parts of the regu-
lations in force [ Fig. 6 ]. In any case
every pipe connected to the
gas supply network must be
equipped with a safety intercep-
tion valve.
stainless steel
flexible pipe
cooker hob
fitting
gasket
copper
rigid pipe

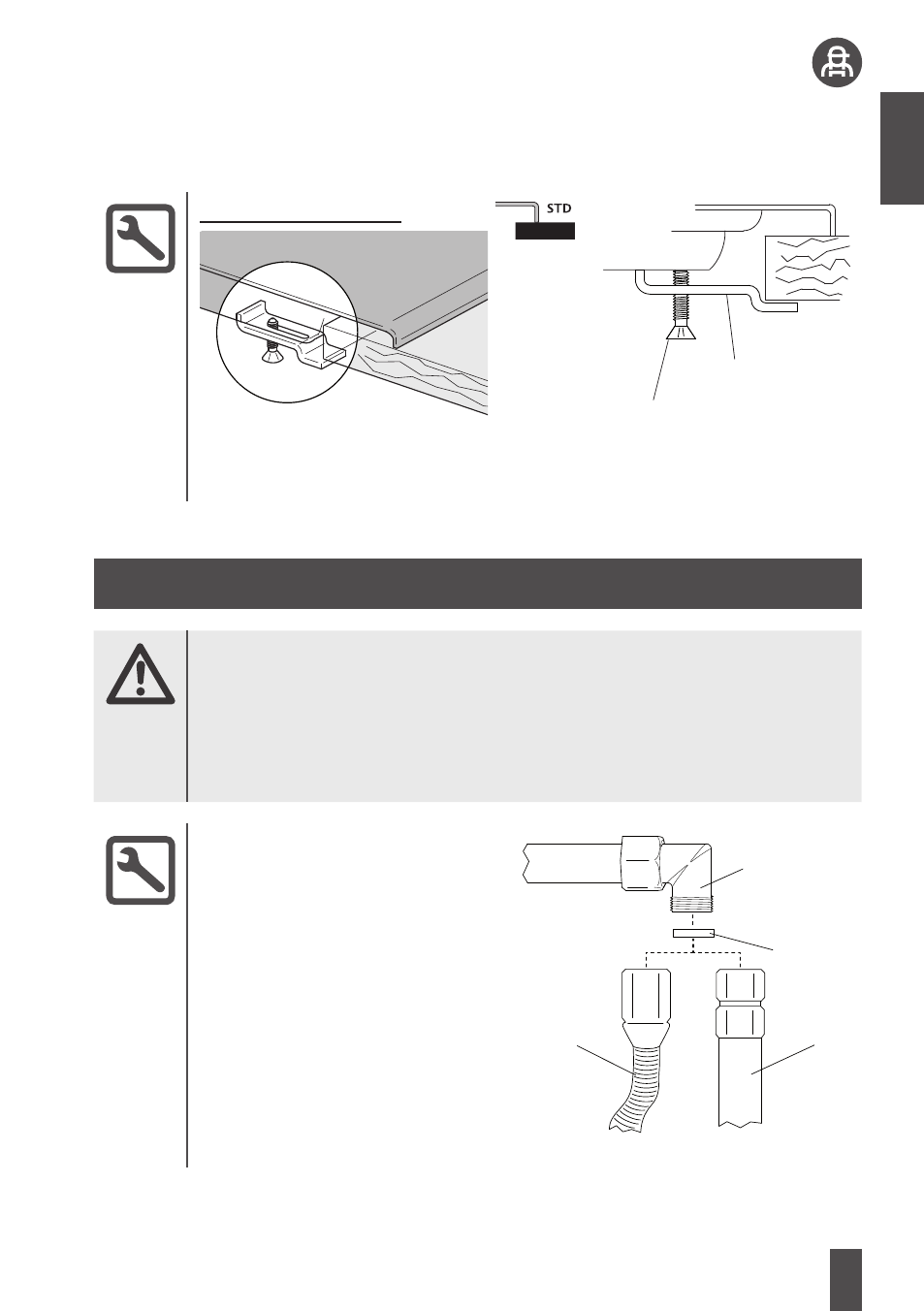

Fig. 6: connection to the gas supply network
