2.2 System Configuration
C141-E192-01EN
2-3
(6) Read/write circuit
The read/write circuit uses a LSI chip for the read/write preamplifier. It improves
data reliability by preventing errors caused by external noise.
(7) Controller circuit
The controller circuit consists of an LSI chip to improve reliability. The high-
speed microprocessor unit (MPU) achieves a high-performance AT controller.
2.2 System Configuration
2.2.1 ATA interface
Figures 2.2 and 2.3 show the ATA interface system configuration. The drive has
a 44pin PC AT interface connector and supports PIO mode 4 transfer at 16.6
MB/s, Multiword DMA mode 2 transfer at 16.6 MB/s and also U-DMA mode 5
(100 MB/s).
2.2.2 1 drive connection
MHC2032AT
MHC2040AT

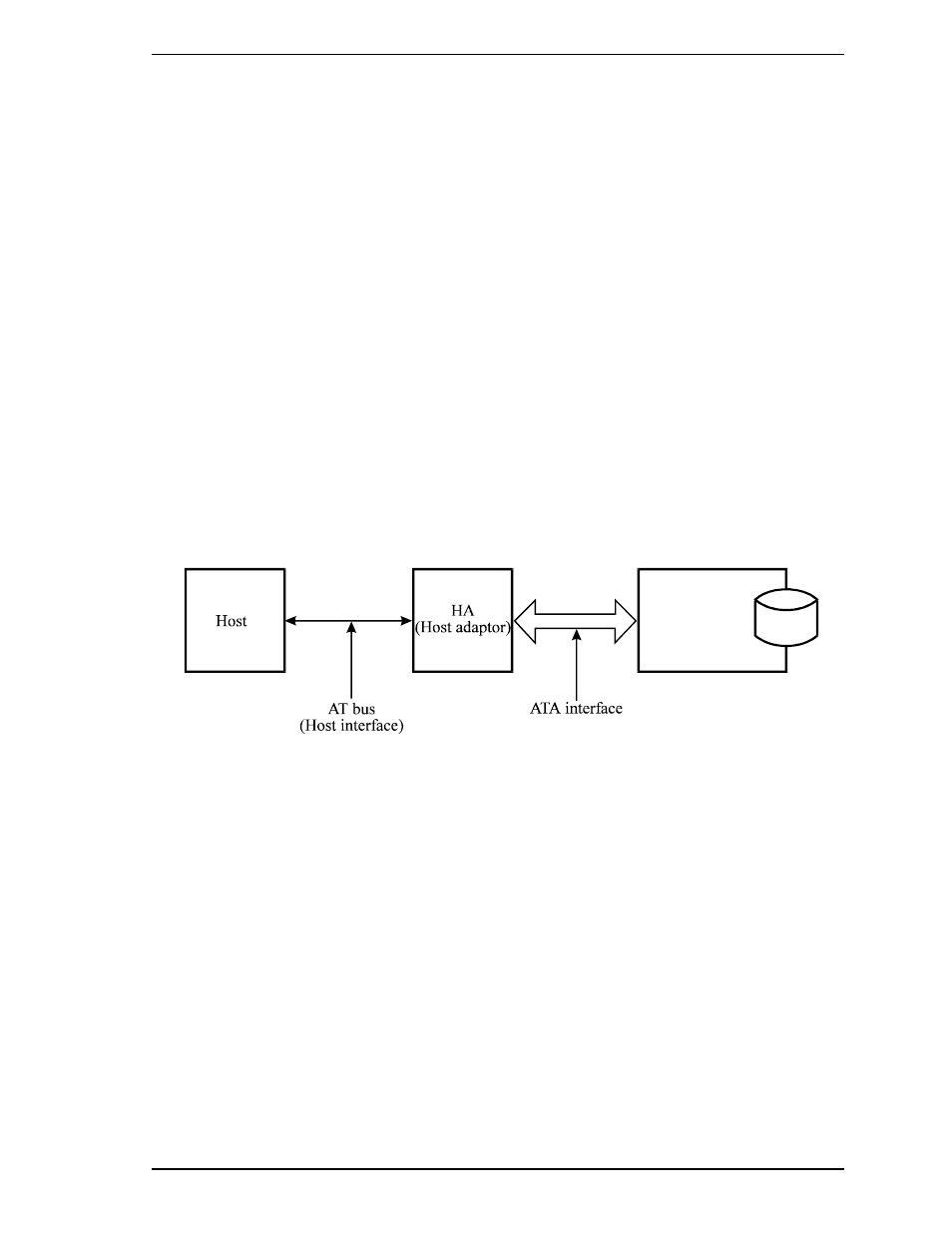

Figure 2.2 1 drive system configuration
MHT2080AT
MHT2060AT
MHT2040AT
MHT2030AT
MHT2020AT
