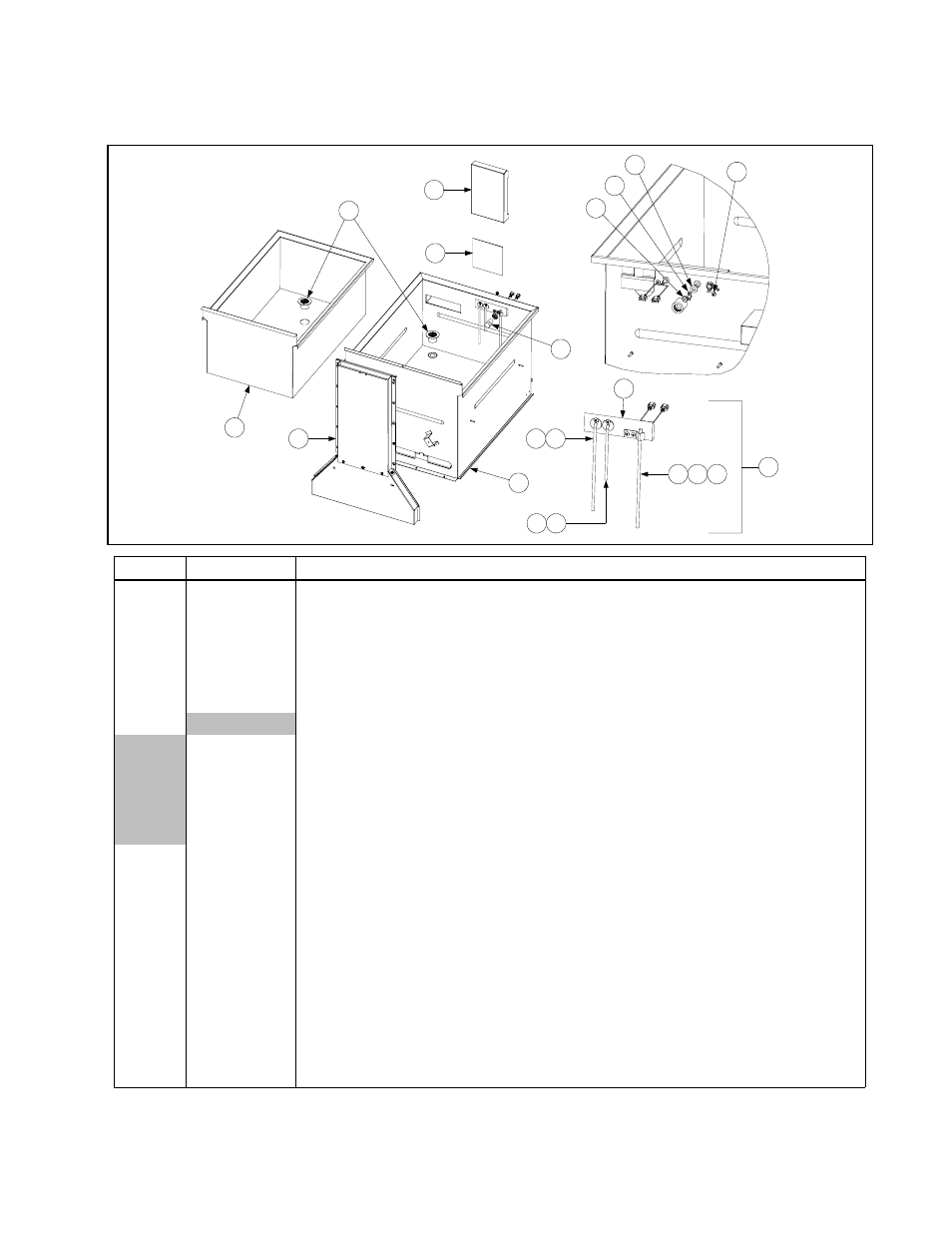

2.7 Cookpot, Rinse Tank, and Associated Components
2.7.1 Cookpot and Rinse Tank Components (Other than Cookpot Insulation)
5
6
3
2
17
8
12 9
12 10
11 13 12
1
4
7
12
14
15
16
ITEM PART # COMPONENT
1 823-4090SP Cookpot, GSMS (Use 823-4227SP for units with manual fill. See NOTE below.)
2 806-5497SP Flue Assembly, GSMS (See NOTE below.)
3 823-1994SP Tank, GSMS Rinse
4 823-2022 Strainer Assembly
5 823-2791 Cover, Probe Block (angled top) (for flat-topped block, use 823-1942)
6 816-0160 Insulator, 5.25-inch x 5.00 Probe Cover
7 Probe Block Assembly, Complete
806-9365SP Angled top, for use on units without Autofill option.
806-9366SP Angled top, for use on units with Autofill option.
106-3084SP Angled top, for use on units with manual fill.
826-1082 Flat top w/pins, for use on units without Autofill option.
826-1081 Flat top w/pins, for use on units with Autofill option.
* 810-1212 Replacement Pin, for use w/flat-topped probe blocks.
8 810-1697 Block, Probe (angled top) (for flat-topped block, use 810-0821)
9 823-1920 Sensor, Low Water Level (806-9365SP and 826-1082 use two each)
10 823-1921 Sensor, Normal Water Level (used in 806-9366SP and 826-1081)
11 806-4764 Probe Assembly, Temperature
12 809-0357 Screw, #6 x ⅜-inch Philips Truss Head Nickel Plated
13 910-1804 Bracket, Probe Retainer
14 826-1376 Nut, 10-32 Keps Hex Head (Pkg. of 10)
15 826-1337 Tab, Faston .25-inch (Pkg. of 5)
16 809-0193 Washer, ¼-inch Nylon Flat
17 810-0976 Nozzle, Water Inlet
* Not illustrated.
NOTE: Use 106-2797SP (Nat) and 106-2798(Pro) to order complete burner, frypot, and flue assemblies except for
units with manual fill. For units with manual fill, use 106-3055SP (Nat) or 106-3056SP (Pro).
