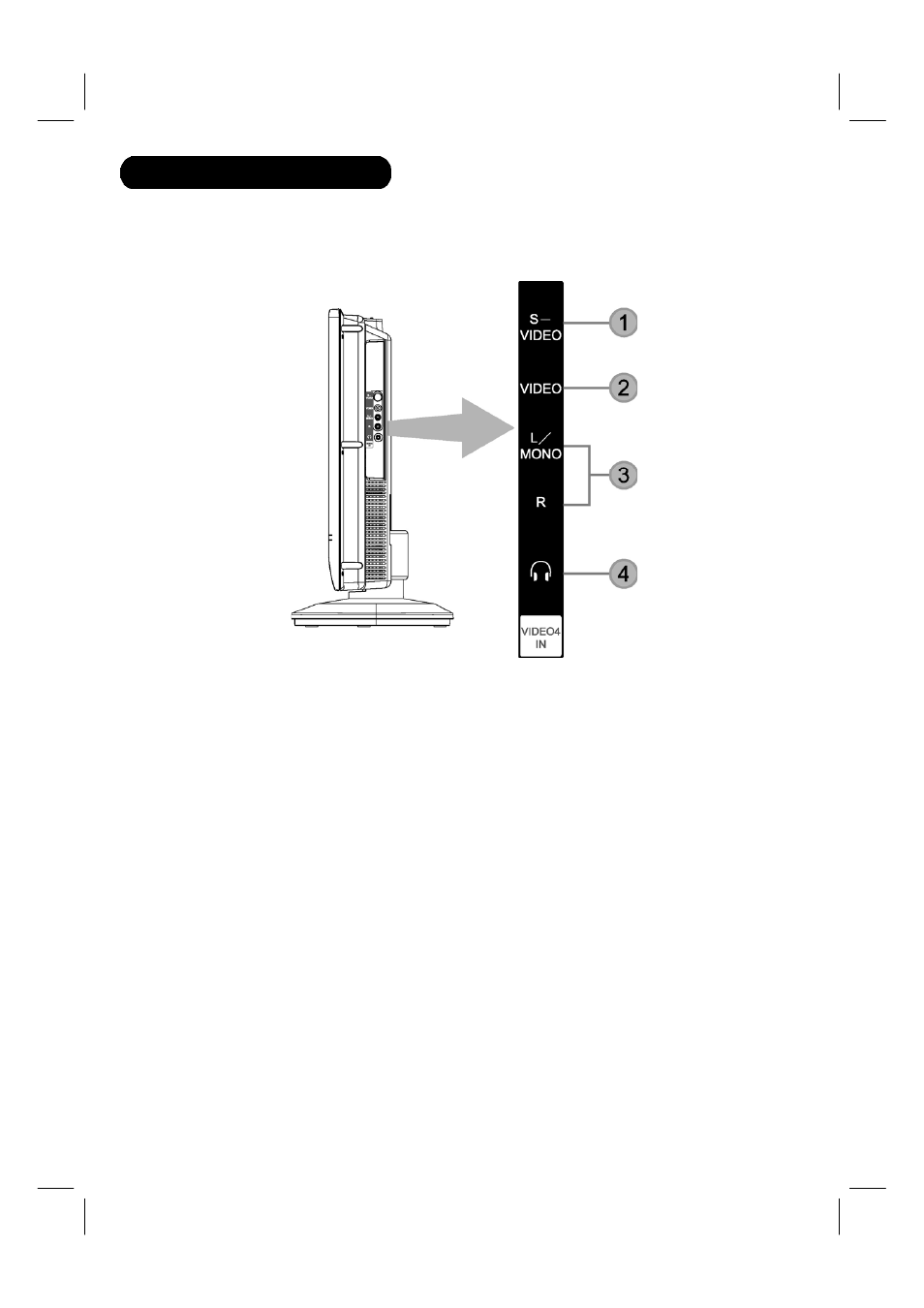

SIDE PANEL CONTROLS
SIDE VIEW
26” LCD Television
VIDEO 4
①
S-VIDEO Inputs
Provide S-VIDEO (Super Video) jacks for connecting equipment with S-VIDEO output capability.
②
VIDEO Input
By using the VIDEO button of the remote control, you can select Composite video source. Use the audio and video inputs to
connect external devices, such as VCRs, camcorders, laserdisc players, DVD players etc. (if you have mono sound, insert the audio
cable into the left(L) audio jack).
③
Audio Input
Connect audio for VIDEO/ S-Video input (if you have mono sound, insert the audio cable into the
left(L)
audio jack).
④
HEADPHONE JACK OUTPUT
Connect to the Headphone.
