Page 10

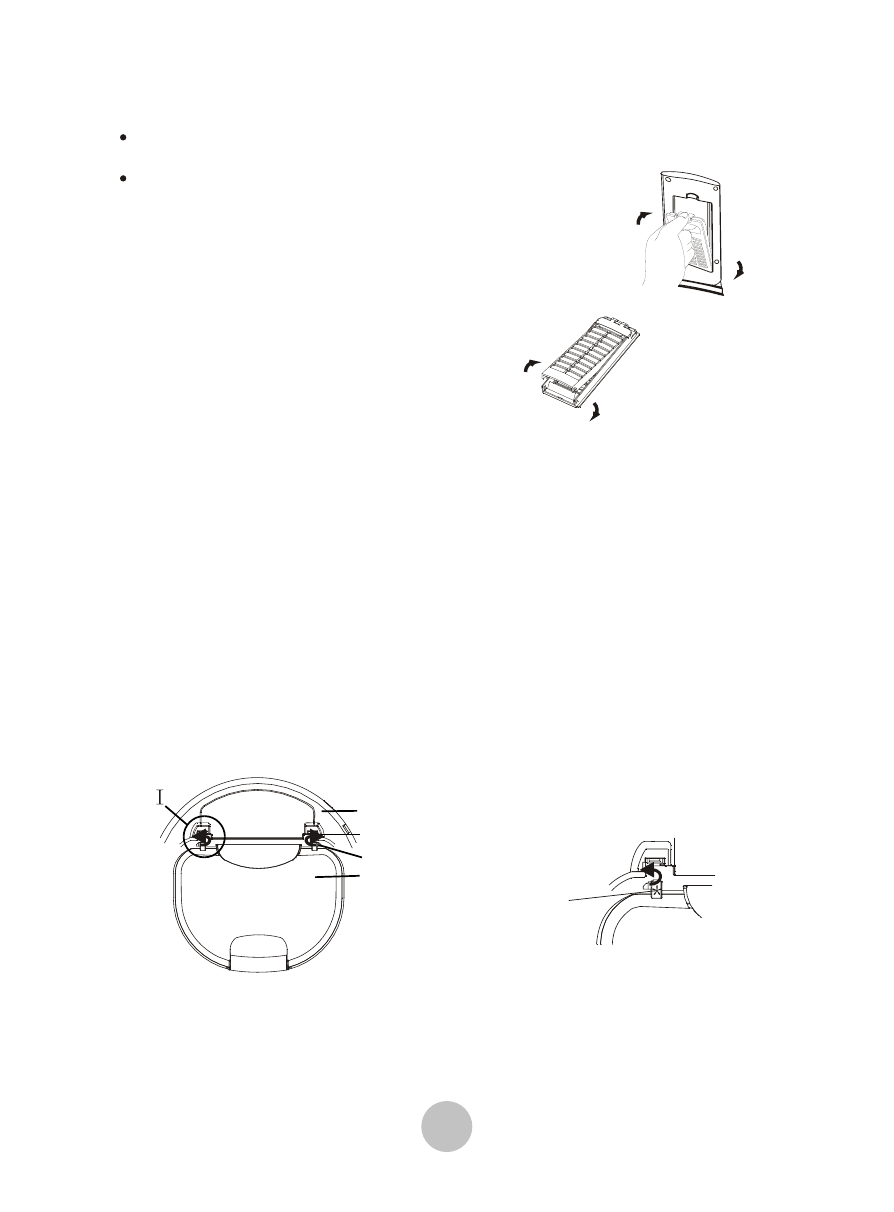

Take off the lint filter.

The lint filter must be used during washing.

It must be cleaned after each wash.

Clean out the lint in the filter.

Install the lint filter.

Section I enlarging

Push

1.Open the top lid of the washing machine.
2.Put the inner cover component on the outer tub cover, lining up
the inner cover shaft to the installation hole of the corresponding
outer tub cover shaft groove.
3.Firstly insert the inner cover shaft of one side into the corresponding
outer tub cover shaft groove, then push the other inner cover
shaft into the corresponding outer tub cover shaft groove. Please
install in the designated position to guarantee there is no abnormal
sound in opening and closing of the inner cover, and the operation
shall be smooth. Do not remove the inner cover component after
washing.

Inner cover

Inner cover shaft

Outer tub cover

shaft groove

Lint Filter

Install the inner cover

(To prevent water spillage from tub)

Install

Take off
