Assembly and Parts, Cont.
Bypass Assembly

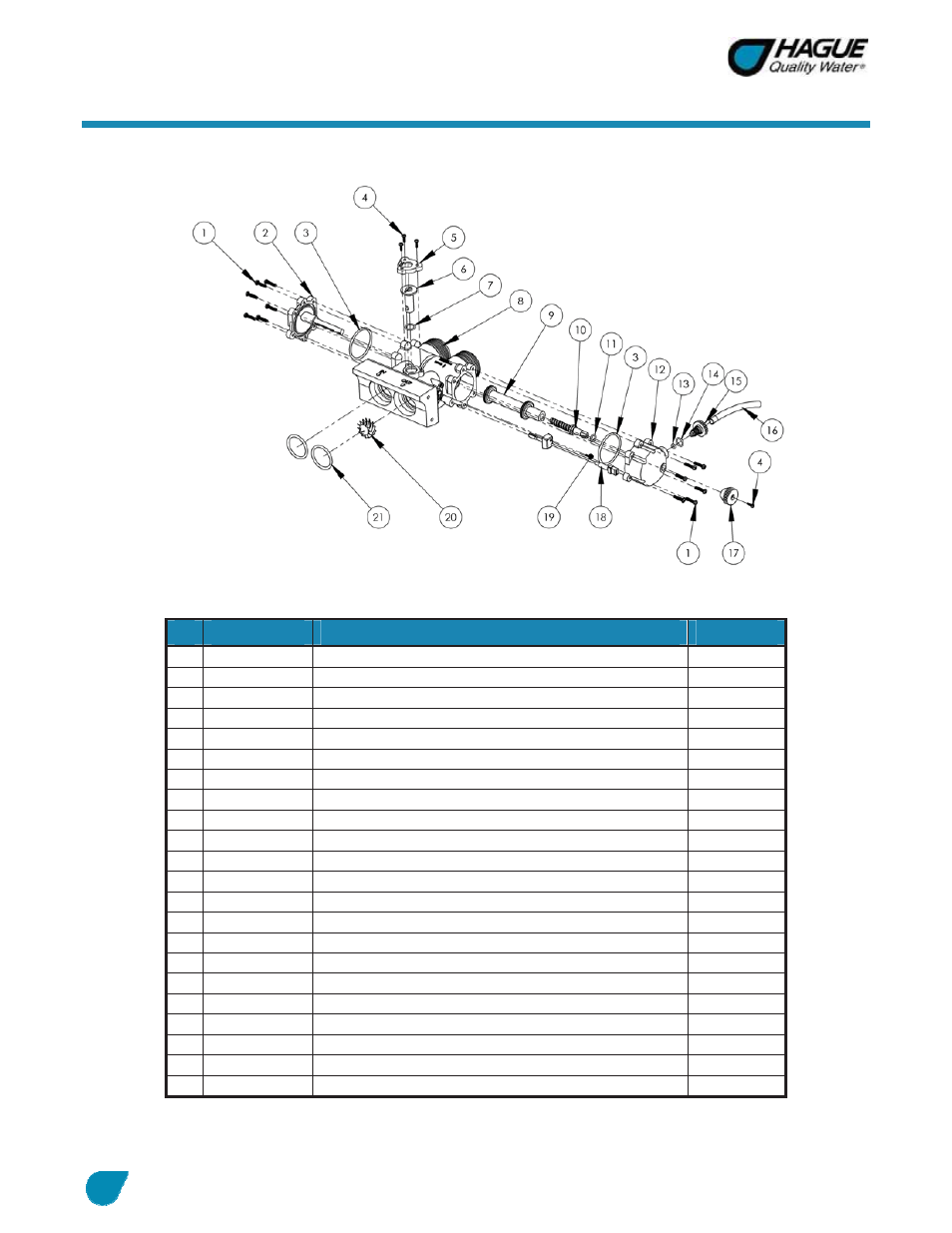

Figure 13: Bypass Assembly
Part # Description Quantity
1 90807 Screw 12
2 90262 Bypass End cap-Left 1
3 93808 O-Ring 2
4 90802 Screw 4
5 90252 Cap-Blending Dial 1
6 90222 Blending Dial 1
7 90827 O-Ring 1
8 90246 Bypass Housing 1
9 90616 Bypass Piston Assembly 1
10 90218 Bypass Piston Drive Shaft 1
11 90803 O-Ring 1
12 90263 Bypass End cap-Right 1
13 90264 O-Ring 1
14 90828 O-Ring 1
15 90226 Test Port Valve 1
16 90812 Tubing 4.0" 1
17 90221 Bypass Piston Knob, blue 1
18 93860 Turbine Sensor Wire 1
19 90809 Screw 1
20 90522 Turbine Assembly 1
21 93838 O-Ring 2
90615 Entire Assembly (all of the above parts)
