9

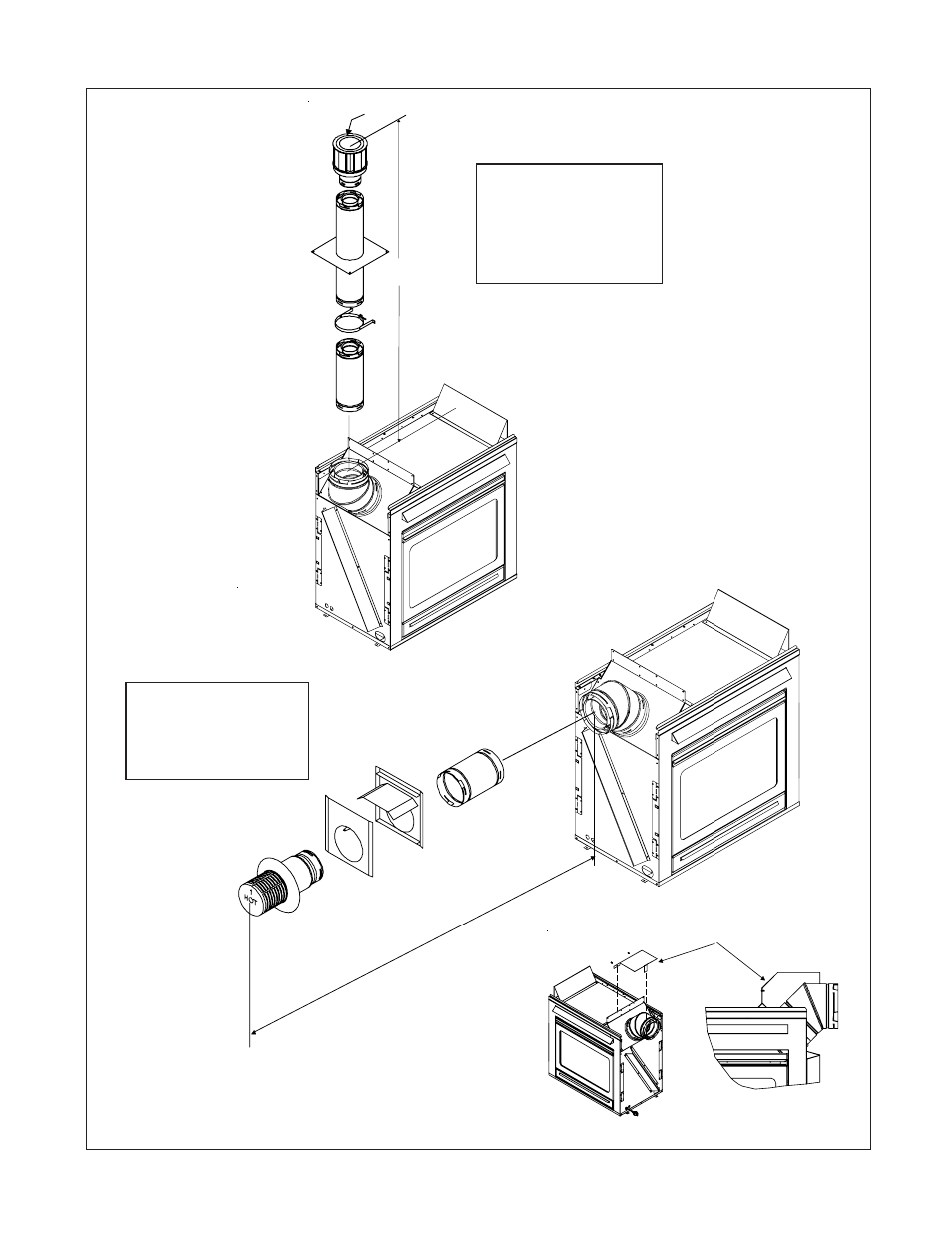

Figure 6

STRAIGHT UP

VERTICAL FLUEING

V (FT.)

40' MAX. (12.4 M)

STRAIGHT OUT

HORIZONTAL FLUEING

H

Max. Run

24" (610 mm)

V

CAP

H

NOTE: When the 45

0

elbow is attached

horizontally, the supplied heat shield
must be installed.

HEAT SHIELD
