LOG PLACEMENT INSTRUCTIONS
LOG NUMBER 1 (SRV675-721):
Position log #1 at the rear left corner of the grate against the
three grate stops as shown.
LOG NUMBER 2 (SRV675-722):
Place log #2 so that the slot on the bottom of the log fits over
the grate tab in the rear right corner. The left end of log #2 should rest against the stop on the right center bar.
Remove dress guard and glass door from the
heater side to access grate/burner with the pilot
assembly on the right. Carefully remove the logs
from the carton. CAUTION: Logs are fragile!

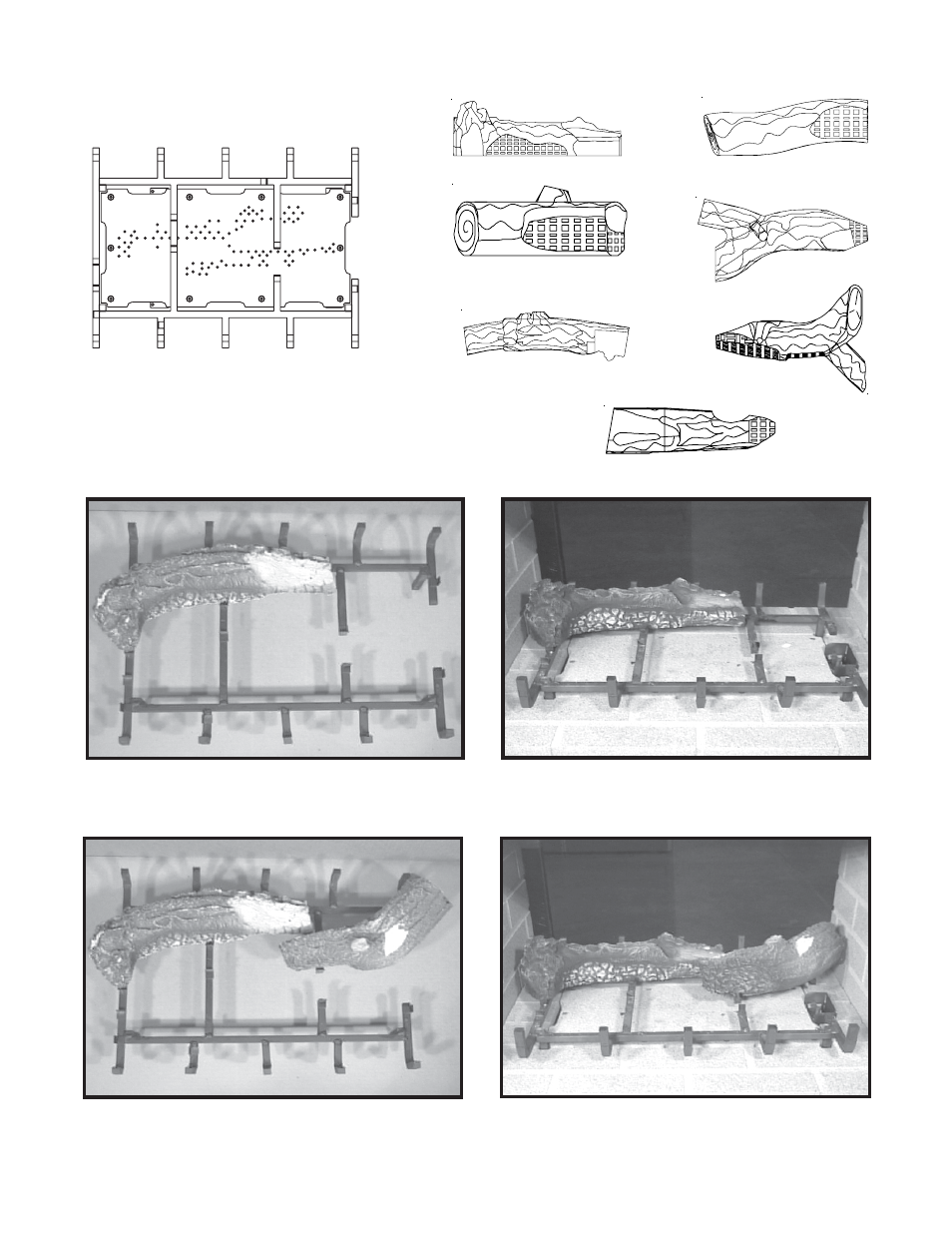

Burner - Top View
1
2
1
2
3
4
5
6
7
Figure 25
