Hearth and Home Technologies GDST3831I User Manual
Page 51

Heatilator • GDST3831I • 2127-900 Rev. F • 10/08
51

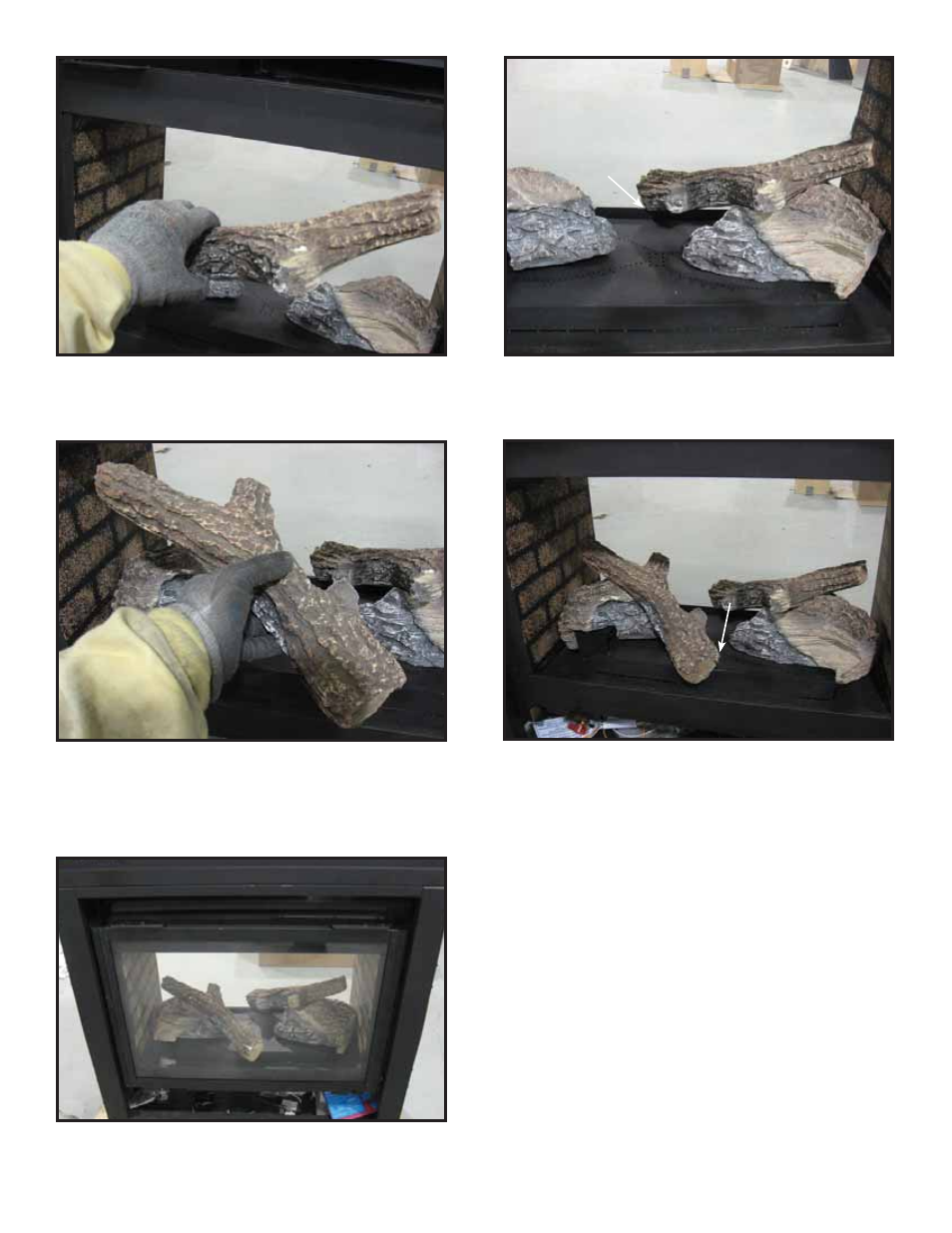

STEP 4. Log #3 (SRV2126-702):
Place Log #3 (1 of 2 identical logs) as shown in Figure 7. Align the “Y” of Log #3
with the cutout on Log #2. Rest the bottom of Log #3 in the notch on the ledge on the back side of the basepan.
STEP 5. Log #3 (SRV2126-702):
Place the remaining Log #3 (2 of 2 identical logs) into the fi replace so that the bot-
tom of the log rests in the notch on the ledge on the front side of the basepan. Then place the top of Log #3 on top of Log
#1 so that the fl at spot is hidden. The complete log set assembly is shown in Figure 11. See the fi replace Owner’s Manual
for instructions on how to place the Mystic Embers and Mineral Wool.
3
3
3
3
NOTCH
NOTCH
2
2
1
1
3
3
NOTCH
NOTCH
