Hearth and Home Technologies GDST3831I User Manual
Page 50

Heatilator • GDST3831I • 2127-900 Rev. F • 10/08
50

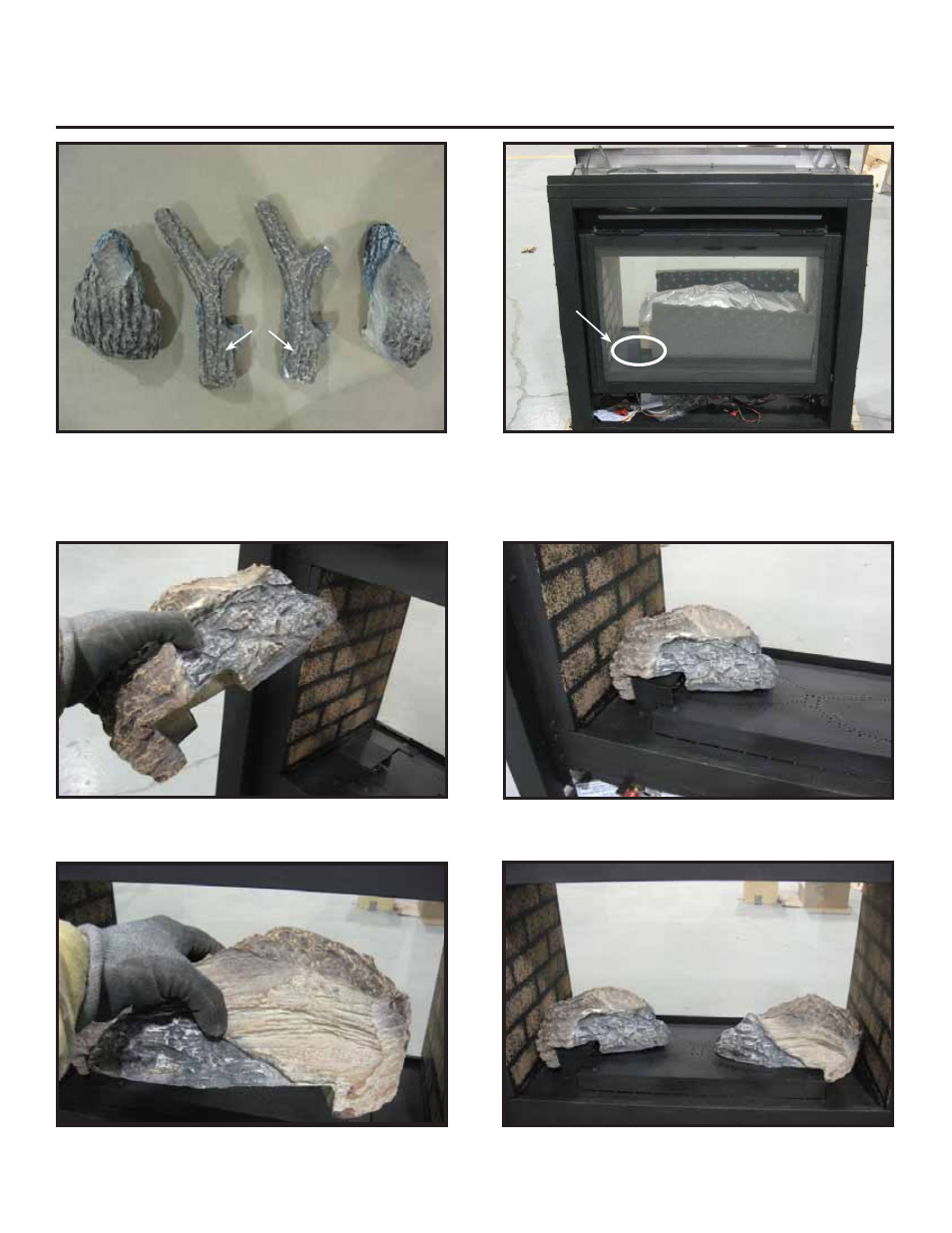

F. Install the Log Assembly
STEP 1. CAUTION! Logs are fragile!
Carefully remove the microfoam and packaged logs from the inside of the
fi replace. See Figure 2. Remove the Mystic Embers and mineral wool and set aside. Remove the packaging from the
logs and inspect the logs for damage. To ensure that you are working on the correct side of the appliance, verify that the
pilot is on the left side. See Figure 2.
Log Set Assembly: LOGS-2126
Models: ST-550T-IPI. GDST3831I
STEP 2. Log #1 (SRV2126-700):
Place Log #1 so that the large cutout on the bottom of the log fi ts over the pilot shield
as shown in Figure 4. The hole in the bottom of Log #1 interlocks with the head of the shoulder screw on the burner.
1
1
3
3
2
2
PILOT
PILOT
1
1
2
2
STEP 3. Log #2 (SRV2126-701):
Place Log #2 as shown in Figure 6 using the shoulder bolt as a guide to align the
log in the proper orientation to the port pattern on the burner.
1
1
2
2
2126-935
