15 - 2
Parts and Functions

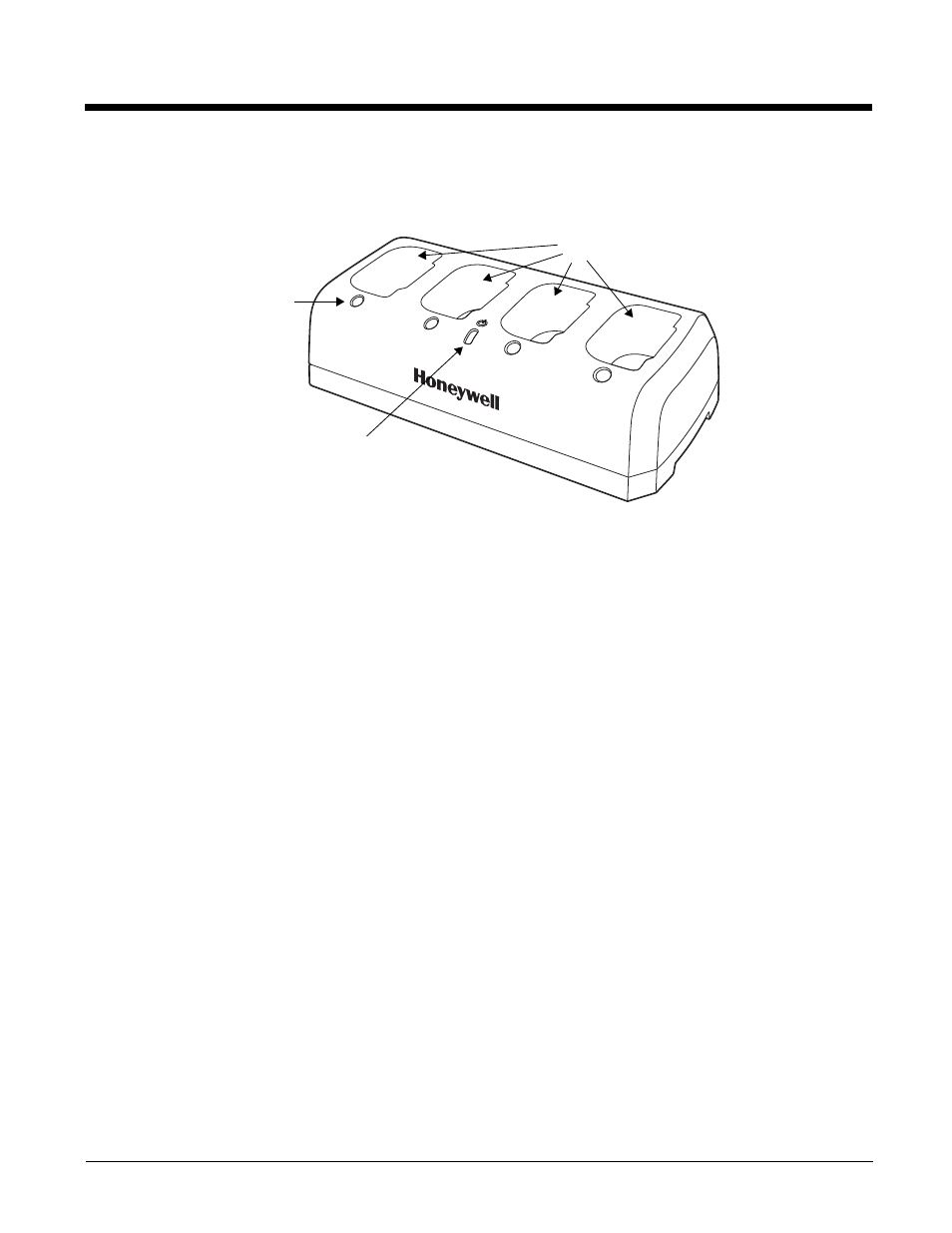

Top Panel
Charging Slots
There are 4 charging slots. Each slot holds one Li-ion battery and charges it independently of
the other slots. When a battery is placed in each slot, it immediately begins charging.
Power LED
The power LED indicates if the QuadCharger is powered and operational. When the
QuadCharger is receiving power, the LED illuminates green.
Power Supply Connector
You attach the power supply to this connector. The universal power supply accepts input
voltages between 90-265 volts. See
Status LEDs
A status LED is located above each of the 4 battery slots. The color of the LED indicates the
charge status of the batteries in its slot.
Color
This color indicates that the battery in the slot…
Green (Solid)
Has completed its charge cycle and is ready for use.
Orange (Solid)
Is being charged at a maximum charge rate.
Red (Flashing)
Encountered an error during the most recent charge cycle.
Charging Slots
Status LED
Power LED
