12 – English
ASSEMBLY

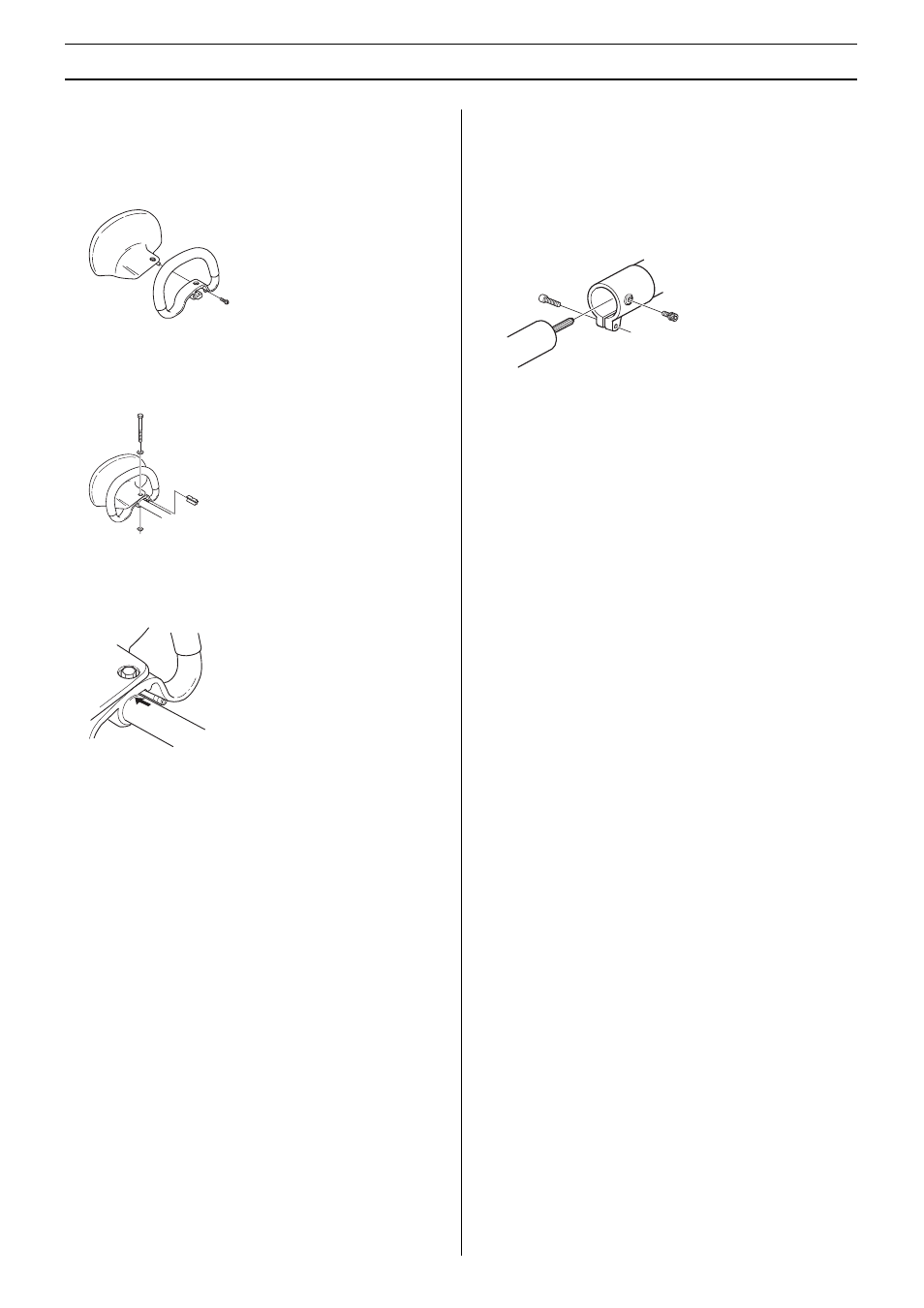

Fitting the hand guard and loop
handle
1 Assemble the hand guard and loop handle by screwing
them together. Take care to align the holes in both parts.
2 Slide the loop handle and hand guard onto the shaft.
3 Slide the spacer into the slot in the loop handle.
4 Fit the nut and screw. Do not overtighten.
5 Now make a final adjustment to give yourself a
comfortable working position. Tighten the screw.
CAUTION! The loop handle and hand guard must not be
fitted behind the arrow marked on the shaft.
Fitting the cutting head
It is important that the hedge trimmer is laid on a flat surface
when you fit the cutting head. Otherwise the cutting head may
not be fitted straight.
1 Fit the cutting head to the shaft. CAUTION! Make sure the
drive shaft inside the shaft engages with the recess in the
cutting head.
2 Tighten the lower screw first, then the upper screw.
