H. Replacing Fixed Glass Assembly
• Set the glass panel on the lower two or four glass
assembly latches, ensuring the glass panel is centered
in the opening.
• Replace glass latches. See Figure 15.2.
I. Air Shutter Setting
Air shutter setting should be adjusted by a qualifi ed in-
staller at the time of installation.
• The air shutter is set at the factory for minimum vertical
vent run.
• Adjust air shutter for longer vertical runs. See
Figure 15.7.
• Turn the thumbscrew to open and close.
Open Close

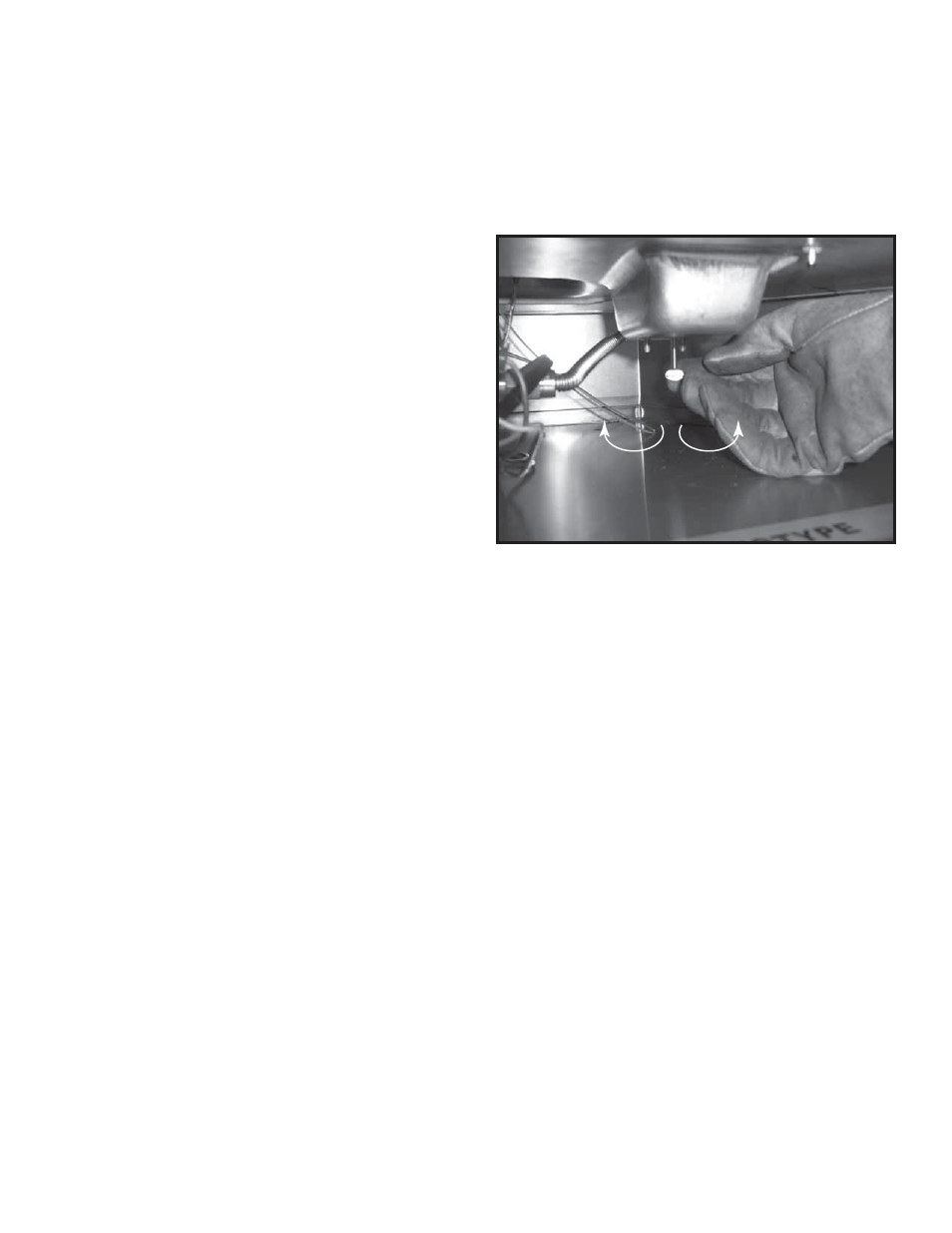

Figure 15.7 Adjusting Air Shutter
