Installed vertically, Top vent - horizontal termination - (continued), Top vent - vertical termination – Heatiator Heatilator Evolution NEVO4236I NEVO3630I User Manual
Page 27: Three elbows, No elbow
Heatilator • Evolution • 4065-114 Rev. o • 11/11
27

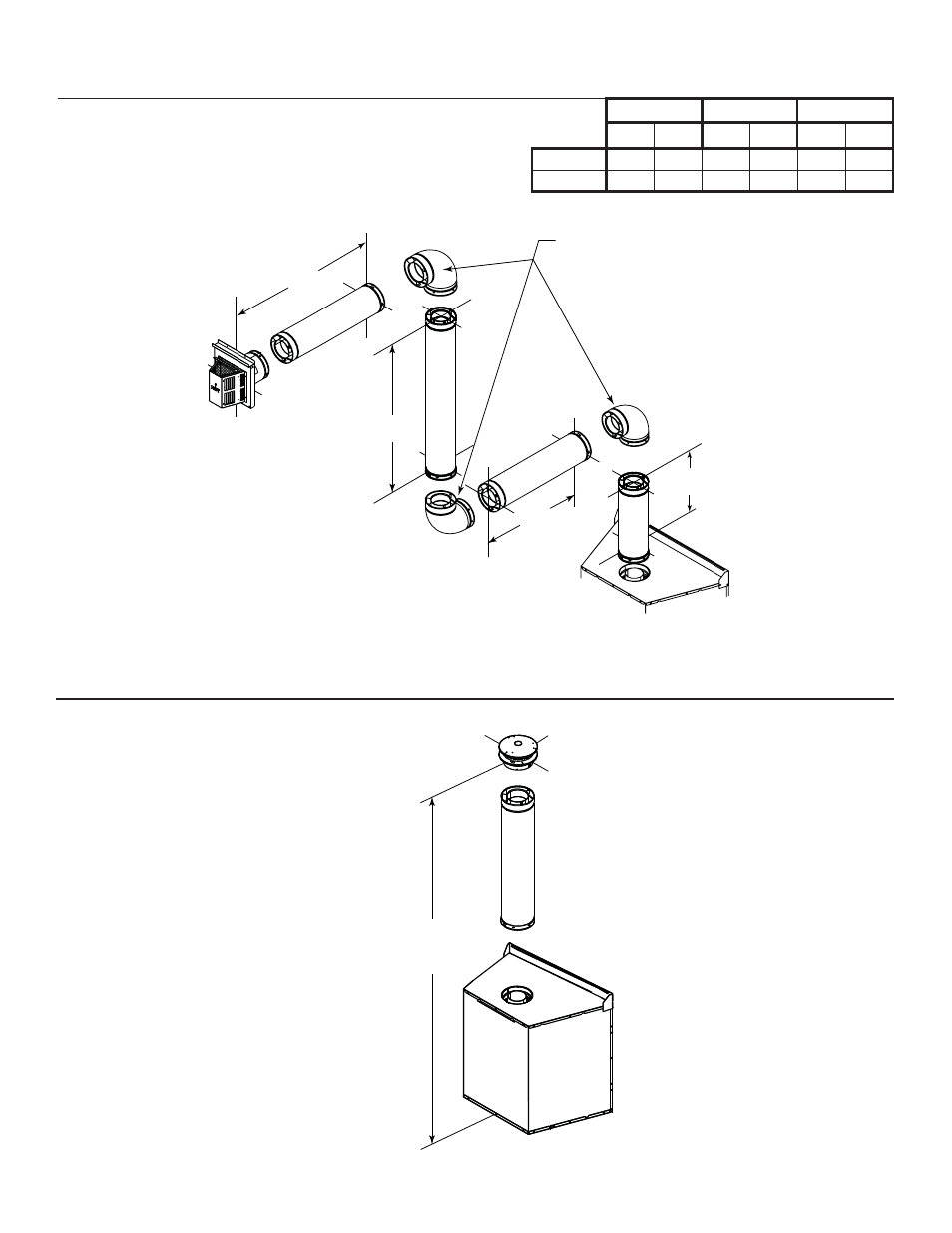

Figure 7.6
1. Top Vent - Horizontal Termination - (continued)
Three Elbows
H
1
V
1
V
2
H
2
Installed
Vertically
V
1
min.
V
1
+ V
2
max.
H
1
+H
2
max.
ft
m
ft
m
ft
m
DVP
2
0.61
24
7.32
19
5.79
SLP
2
0.61
22
6.71
19
5.79
2. Top Vent - Vertical Termination
No Elbow
Figure 7.7
12 ft (3.66 m) min.
60 ft (18.29 m) max.
