Heatilator • Evolution • 4065-114 Rev. o • 11/11 29

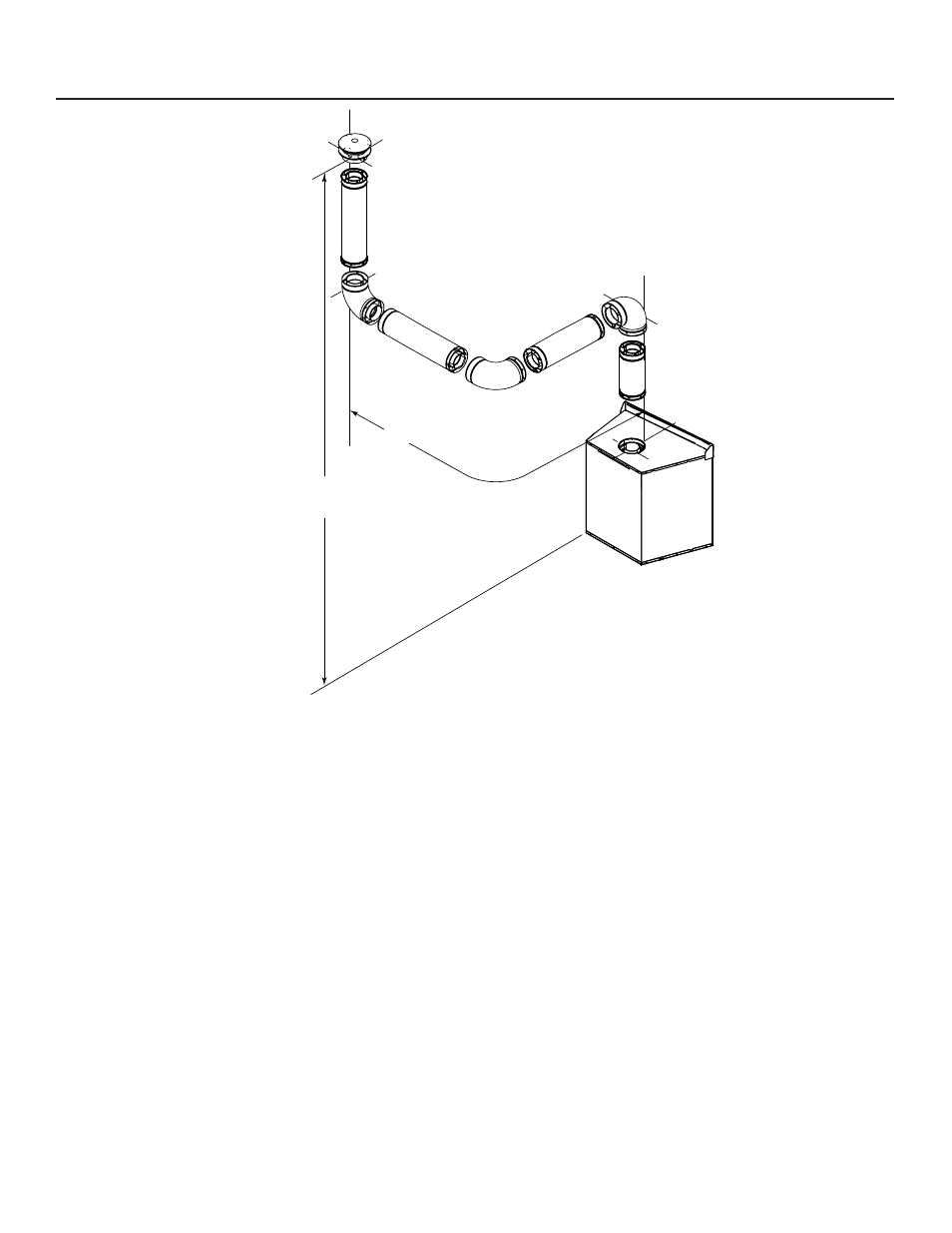

Figure 7.8
2. Top Vent - Vertical Termination - (continued)
Three Elbows
12 ft (3.66 m) min.
60 ft (18.29 m) max.
Maximum horizontal run is
100% of vertical, but cannot
exceed 17 ft (5.18 m)
