Hunter Fan 21434 User Manual

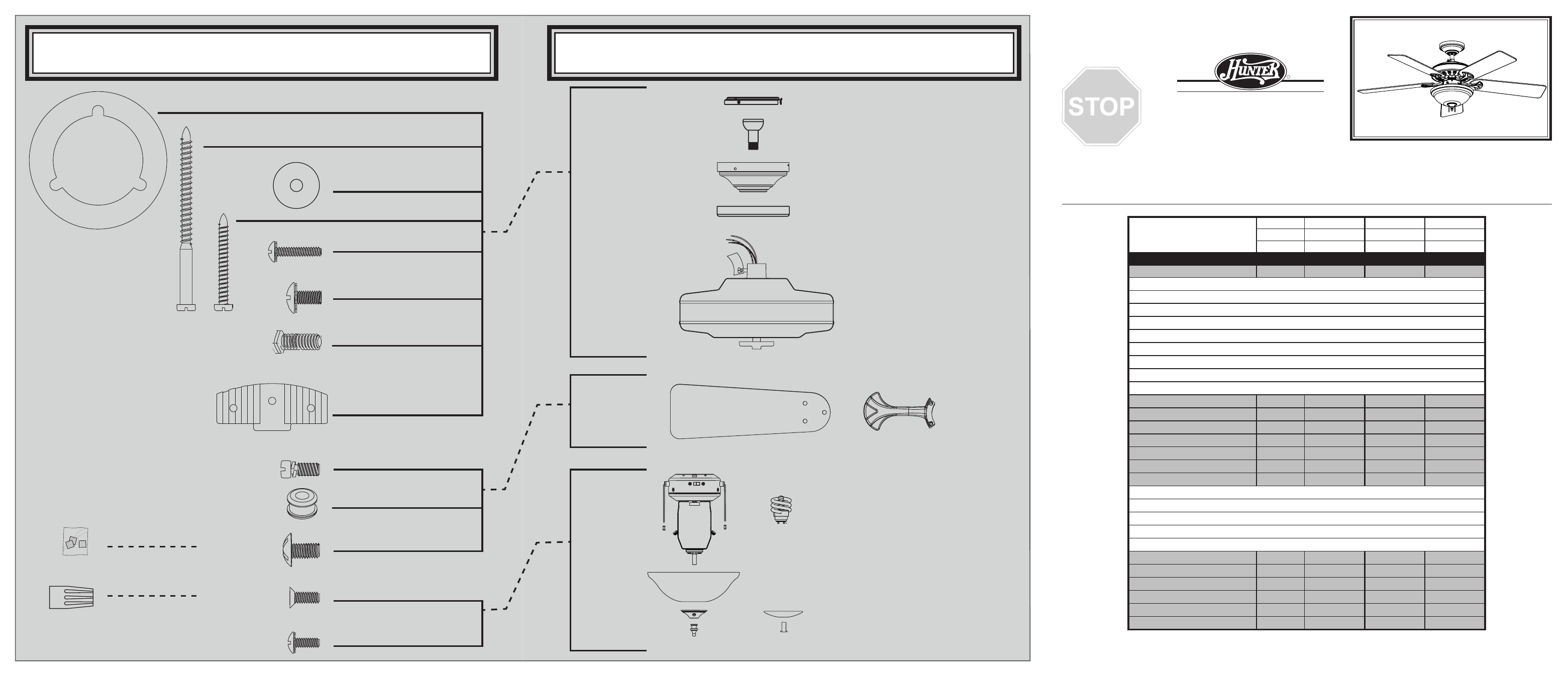

Parts guide, Hardware, Fan parts

background image

Hardware

(Drawn to Scale)

Fan Parts

(Not Drawn to Scale)

PARTS GUIDE

PARTS GUIDE

Using this Parts Guide, make sure all

parts are included in the box.

If parts are missing, DO NOT RETURN

THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.

REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.

R

SINCE

1886

Hunter Fan Company • 2500 Frisco Avenue • Memphis, TN 38114 • www.hunterfan.com • 736 06-22-2007 •

©

2007

Parts List

Model #

21433

21434

21435

Asm. Dwg. #

97705-01

97705-02

97705-03

Finish

Antique Pewter

New Bronze

French Vanilla

Item Name

Qnty

Part #

Part #

Part #

* Hanging System Kit

1

96759-14

96759-30

96759-11

Ceiling Plate
Canopy
Canopy Trim Ring
Hanger Ball / Downrod Assembly
Low Profile Washer
Canopy Screw
Wood Screw
Flat Washer
Locking Screw

Switch/Housing Assembly

1

93504-14

93504-30

93504-11

Switch Housing Cover

1

73853-01

73853-01

73853-01

Switch Housing Plug Button

1

73854-01

73854-01

73854-01

Blade Iron Set

1

93451-05

93451-05

93451-05

Blade Set

1

75539-64

75539-81

75539-81

Screw, Blade Iron Armature

11

63755-05

63755-05

63755-05

Hardware Kit

1

97705-00-860

97705-00-861

97705-00-862

Blade Grommet
Blade Assembly Screw
Screw, Machine, 6-32
Wire Connector
Screw, Switch Housing Assembly

Pull Chain

2

63856-13

63856-13

63856-13

Globe Fitter

1

87697-01

87697-04

87697-03

Bottom Cap

1

64349-01

64349-01

64349-01

Finial

1

64350-01

64350-01

64350-01

Globe/Shade

1

84602-09

84602-10

84743-01

Light bulb / Bulb

1

65795-01

65795-01

65795-01

Blade Grommet

Hanger

Bracket

Assembly

Blade

Assembly

Switch

Housing

Assembly

Screw, Switch

Housing Assembly

Screw,

Machine, 6-32

Locking Screw

Set Screw

Screw, Blade

Iron Armature

Canopy Screw

Flat Washer

Screw, Blade

Assembly

3” Wood Screw

Low Profile

Washer

Balancing

Kit

Wire Connector

1.5” Wood Screw

Mounting

Isolator

x 1

x 2

x 4

x 2

x 3

x 3

x 1

x 11

x 16

x 3

x 3

x 1

x 4

x 4

x 16
