WHAT IS WHAT?

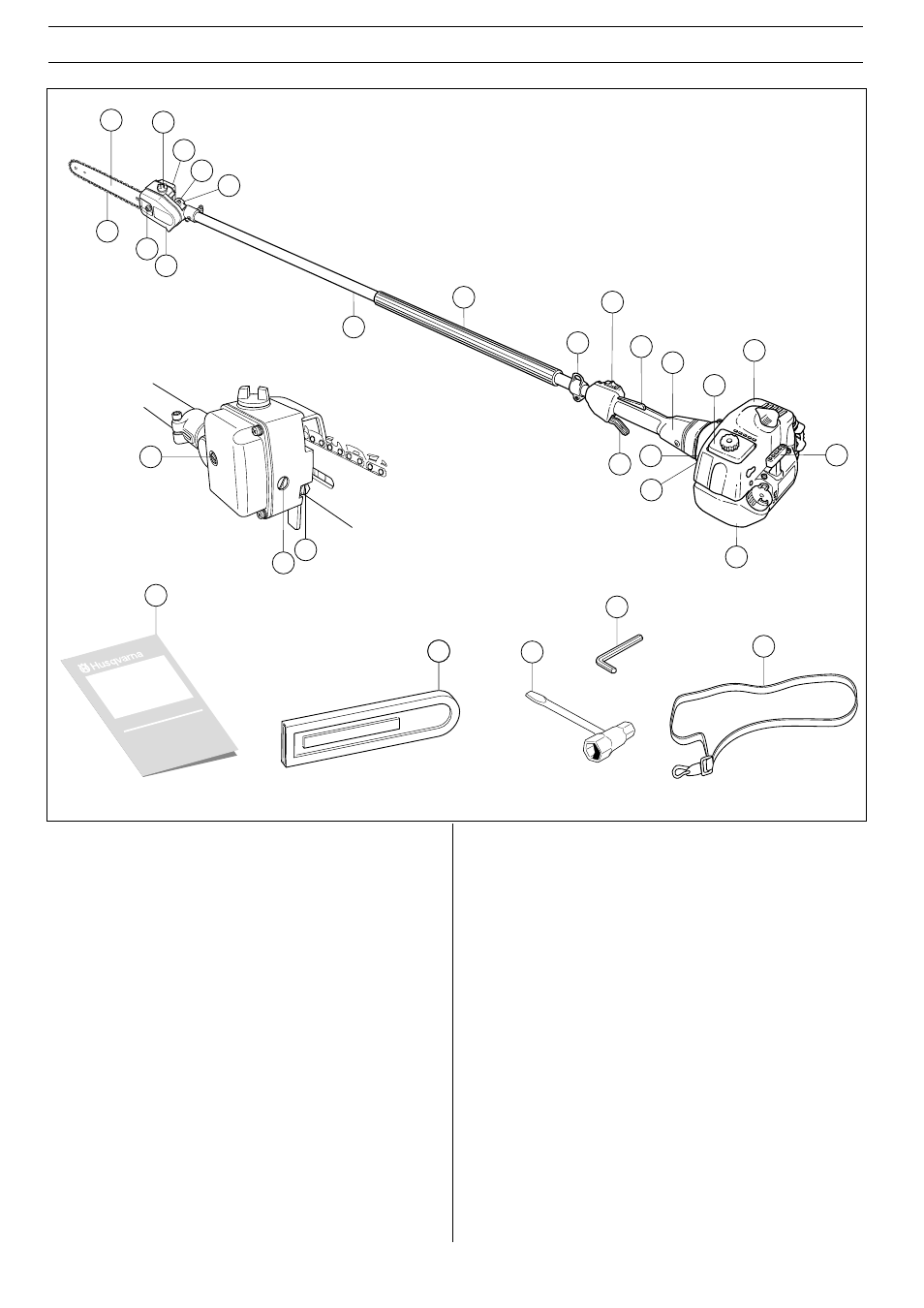

What is what on the machine?
27
29
28
25
23 23 26
23
24
21
19
22
18
1
7
11
12
13
16
15
14
17
5
10
4
20
6
8
9
2
3
1. Lubricant filler hole
2. Bevel gearbox
3. Chain lubrication adjustment screw (B)
4. Chain lubrication locking screw (A)
5. Shaft
6. Front handle
7. Throttle control
8. Stop switch
9. Throttle lock
10. Hook for harness
11. Cylinder cover
12. Starter handle
13. Fuel tank
14. Choke control
15. Fuel pump
16. Air filter cover
17. Clutch cover 18. Chain guard
19. Bar nut
20. Chain tensioning screw
21. Chain
22. Bar
23. Chain oil tank
24. Chain oil filler hole
25. Operator’s manual
26. Transport guard
27. Allen key
28. Combination spanner
29. Harness
