22
49-2001160 Rev. 0
Installation Instructions
COOKTOP INSTALLATION (Cont.)

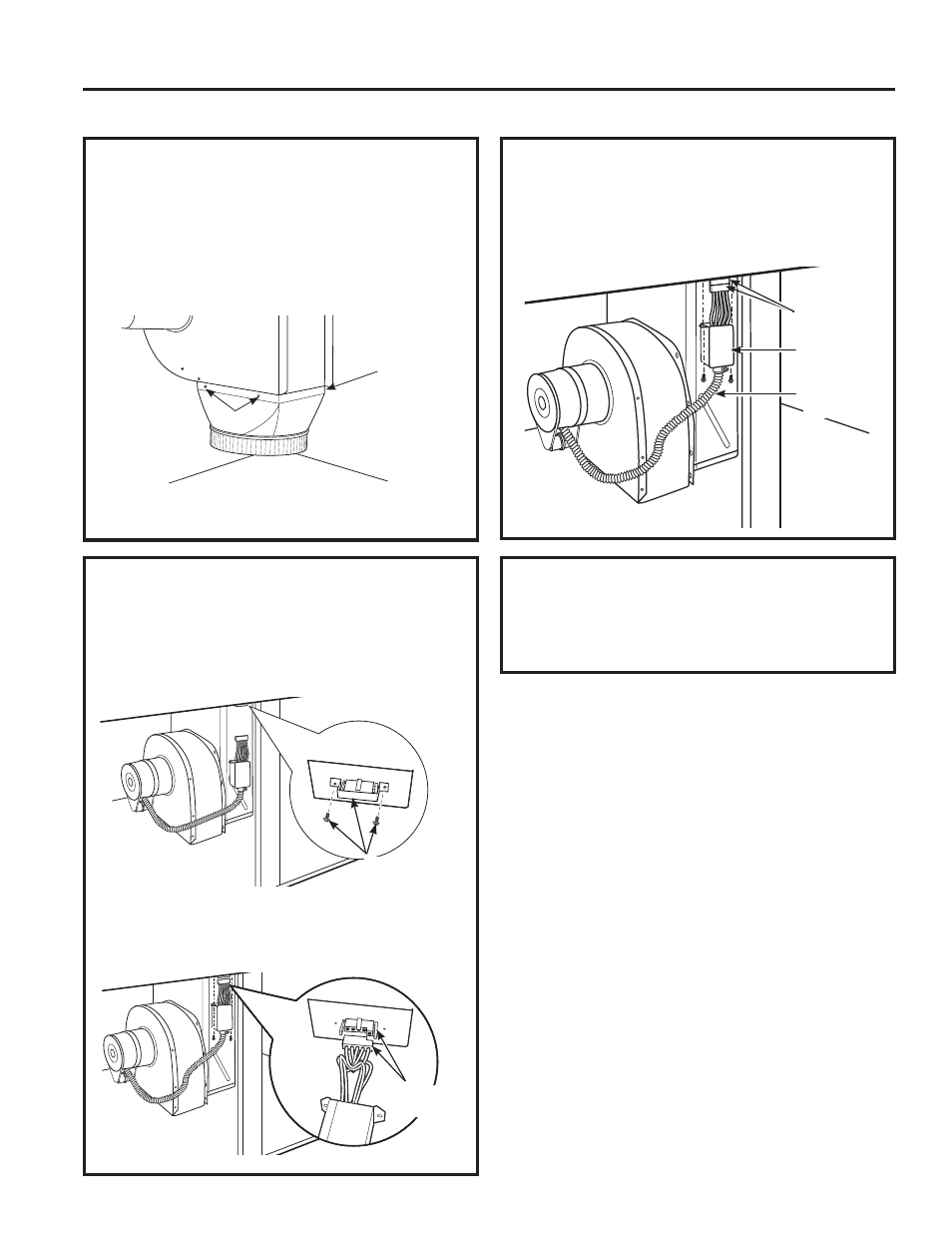

14. BLOWER ELECTRICAL
CONNECTIONS
• Loosen the two screws and remove and discard
the sheet metal strap covering the 5-pin connector
on the cooktop bottom. Save the screws for
reinstallation later.
• Connect the 5-pin plug on the blower assembly to
the matching 5-pin receptacle on the bottom of the
cooktop.
15. BLOWER ELECTRICAL
CONNECTIONS (CONT.)
• Fold all wires into the electrical enclosure. Secure
the enclosure with the screws removed earlier,
making sure that no wires are trapped.
16. CONNECTING THE
DUCTWORK
Connect the ductwork prepared in Steps 6 and 7
to the blower.
INST
ALLA
TION INSTRUCTIONS
Remove screws
and discard
strap
5-pin
connectors
5-pin
connectors
Electrical
enclosure
Flexible
conduit
13. ATTACHING A BLOWER
TRANSITION DUCT
8VHDEORZHUWUDQVLWLRQGXFWIRUDOOGRZQZDUG
duct installations to connect to 6” round standard
GXFWZRUN7KLV»´[´UHFWDQJOHWR´URXQG
transition duct is available at your local building
supply store.
Install the transition duct to the blower outlet. Secure
all joints with duct tape to assure an airtight seal
Screws
Screw
(on other
side)
