Chapter 1 Getting Started
6. Installing the control panel and body separately
IMPORTANT: Be sure to disconnect the power cable before carrying out this procedure.

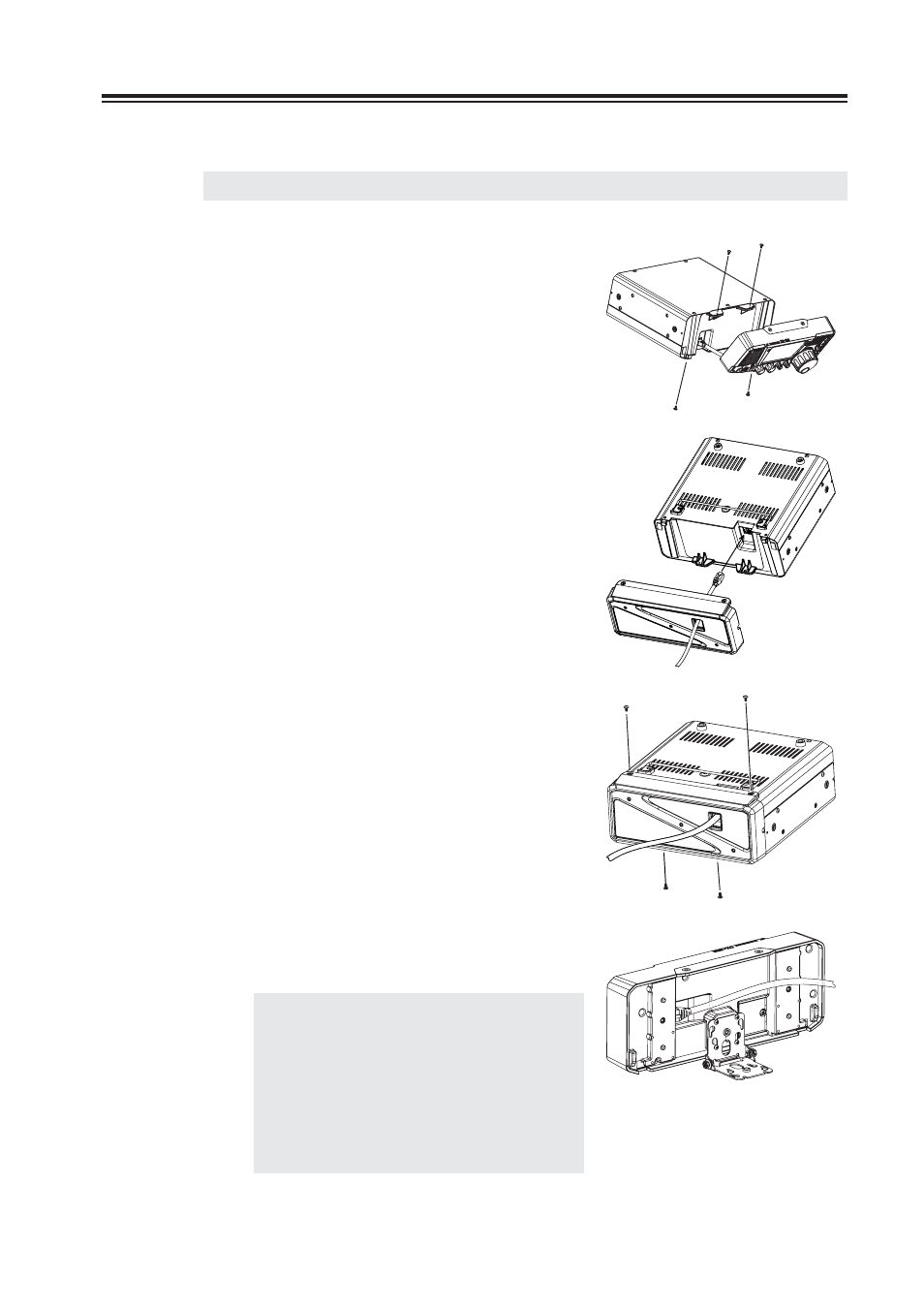

1.
Remove 2 screws above the main unit to
separate the front-control panel. Disconnect
the cable
Remove other 2 screws at the bottom of the
2.
main unit.
3.
Passing the separate-cable (5m) through the
hole of the cover in advance, connect the
cable to the main unit.
4.
Fix the cover to the main unit using those 4
screws.
5.
Fix the bracket using provided hardware, and
connect another end of the cable to the
front-control panel.
NOTE: Please be sure to keep the short,
original cable in order to make it back
to the original condition in future.
Provided ferrite-beads on the separate
cable are to eliminate the RF feed
back. The position of beads may affect
to the condition of RF feed back. See
page 89 for troubleshooting.
